Schneider Electric HMIST6400SL

SpaceLogic Operator Display, 7” HMI for monitoring plant and zone controllers, BACnet /IP, panel-mounted in equipment room

MPN
HMIST6400SL
EAN
3606481978455
Category
Accessories
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMIST6400SL?

SpaceLogic Operator Display 7-inch is a touch-screen Human Machine Interface (HMI) for SpaceLogic controllers and servers. It is designed for local monitoring of controllers in small and medium-sized buildings, and in large buildings with full building management systems. Operator Display is specifically designed for panel mounting in equipment rooms. It simplifies operations, service, and troubleshooting for System Integrators and Service Engineers, as well as for Facility Managers and Janitors. The simplified user interface and the intuitive touchscreen navigation make it easy to operate and maintain the system. Operator Display communicates quickly over BACnet/IP open protocol with a direct connection to SpaceLogic AS servers, or MP or RP controllers. Only one Operator Display is required per cabinet in the equipment room, and up to seven controllers can be monitored from one display. The operator can view and acknowledge alarms, edit schedules and adjust setpoint temperatures. Authorized operators can also view and override inputs, outputs, and other virtual points. The Operator Display dimensions are 153 mm (6.02 in.) in height, 208 mm (8.19 in.) in width and 45 mm (1.77 in.) in depth. It is IEC/EN 61131-2 compliant for vibration resistance and shock resistance. Each Operator Display 7-inc bundle includes an installation gasket, installation fasteners, and power supply connectors, also available as spares. Other required parts not included in the bundle are 24 VDC power supply, Micro USB 2.0 OTG cable and USB stick (FAT formatted). Each Operator Display 7-inc bundle includes an installation gasket, installation fasteners, and power supply connectors, also available as spares. Other required parts not included in the bundle are 24 VDC power supply, Micro USB 2.0 OTG cable and USB stick (FAT formatted). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Width208 mm
Product certificationsCE; UL
Net weight0.8 kg
Product or component typeTouch panel screen
Height153 mm
Enclosure materialPC
Directives2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Ambient air temperature for storage-20…60 °C
Depth45 mm
Display typeColour TFT LCD
Display size7 inch
Ambient air temperature for operation0…50 °C
Display resolution800 x 480 pixels WVGA
Communication port supportETHERNET 10/100BASE
[Us] rated supply voltage24 V DC +/- 20 %
StandardsEN 61000-6-4; EN 61000-6-2; EN 61131-2; UL 61010-2-201; IEC 61326-1
Relative humidity10…90 % non-condensing
Range of productOperator Display ST6
Product brandSchneider Electric

Complementary

Inrush current30 A
Touch panelSingle touch analogue resistive
Power consumption in W9 W
Character fontASCII; ASCII (European characters)
MarkingCE; EAC; UL
Front materialAluminium
Brightness16 levels
Display colour16 million colours
SupplyExternal supply
Immunity to microbreaks2 ms
Local signallingStatus LED green; Status LED orange; Status LED red; Buzzer
Cut-out dimensions190 x 135 mm panel cut dimension
Integrated connection type1 COM1 serial link - 1 SUB-D 9-pin female - RS232C (rate: 2400...115200 bps)bottom; 1 COM2 serial link - female RJ45 - RS485 (rate: 2400...115200 bps)back; COM2 serial link (rate: 2400...187500 bps)back; 1 USB 2.0 type Abottom; 1 USB 2.0 type micro B; 2 Ethernet
Fixing modeBy 2 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201; By 2 screws conforming to EN 61131-2; By 2 screws conforming to IEC 61000-6-2
Realtime clockBuilt-in 0...50 °C; Built-in 10...90 % RH
Backlight lifespan50000 hours with white

Environment

Operating altitude2000 m
Vibration resistance+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2; 9.8 m/s² (f = 9…150 Hz)
Shock resistance147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
NEMA degree of protectionNEMA 4 front panel (indoor use); NEMA 13 front panel (in enclosure)
IP degree of protectionIP20 (rear panel) conforming to IEC 61131-2; IP65 (front panel) conforming to IEC 61131-2

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

HMIST6400SL: frequently asked questions

When can HMIST6400SL be shipped?

HMIST6400SL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HMIST6400SL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HMIST6400SL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIST6400SL, subject to availability and destination.

More Schneider Electric parts

Schneider Electric HMISRV1K – Software license of EPAS user interface, SBUS server up to 1.000 tags
Schneider Electric
HMISRV1K

Software license of EPAS user interface, SBUS server up to 1.000 tags

Schneider Electric HMISRV5K – Software license of EPAS user interface, SBUS server up to 5.000 tags
Schneider Electric
HMISRV5K

Software license of EPAS user interface, SBUS server up to 5.000 tags

Schneider Electric HMIST6200 – Touch panel screen, Harmony ST6, 4"W display, 1COM, 1Ethernet, USB host&device, 24 VDC
Schneider Electric
HMIST6200

Touch panel screen, Harmony ST6, 4"W display, 1COM, 1Ethernet, USB host&device, 24 VDC

Schneider Electric HMIST6400 – Touch panel screen, Harmony ST6, 7"W display, 2COM, 2Ethernet, USB host&device, 24 VDC
Schneider Electric
HMIST6400

Touch panel screen, Harmony ST6, 7"W display, 2COM, 2Ethernet, USB host&device, 24 VDC

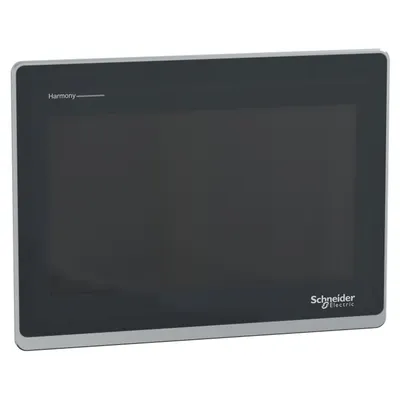

Schneider Electric HMIST6500 – Touch panel screen, Harmony ST6, 10"W display, 2COM, 2Ethernet, USB host&device, 24 VDC
Schneider Electric
HMIST6500

Touch panel screen, Harmony ST6, 10"W display, 2COM, 2Ethernet, USB host&device, 24 VDC

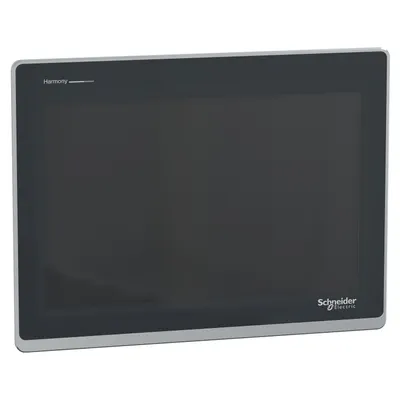

Schneider Electric HMIST6600 – Touch panel screen, Harmony ST6, 12"W display, 2COM, 2Ethernet, USB host&device, 24 VDC
