Schneider Electric HMIST6200

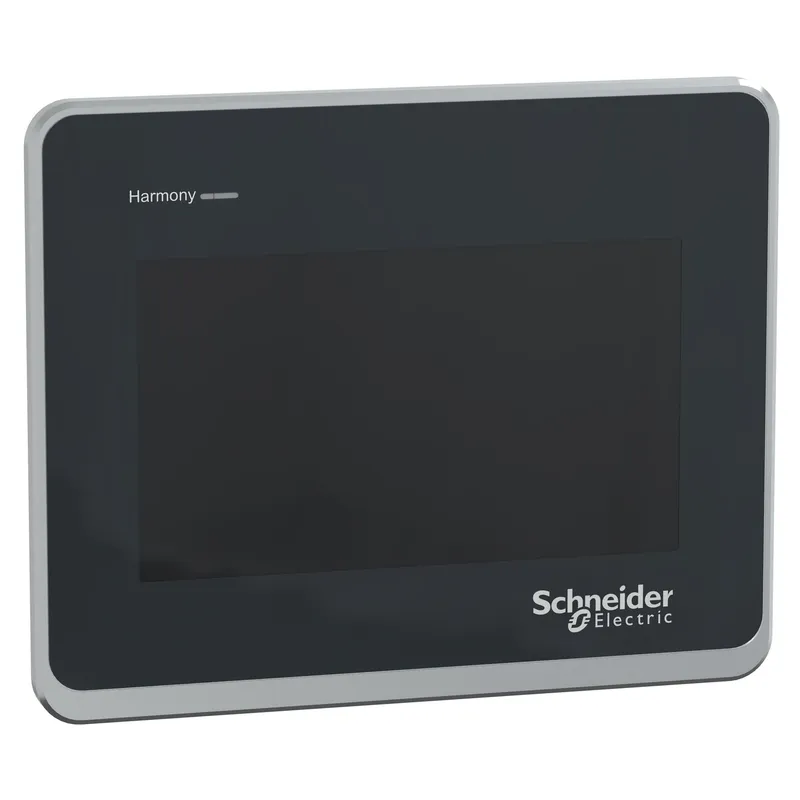

Touch panel screen, Harmony ST6, 4"W display, 1COM, 1Ethernet, USB host&device, 24 VDC

MPN
HMIST6200
EAN
3606489523374
Category
Harmony ST6
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMIST6200?

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 1x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony ST6
Product or component typeTouch panel screen
Processor nameARM Cortex-A8
Memory description512 MB device memory; 128 MB user data memory; 512 KB backup memory

Complementary

Display size4 inch
Display typeColour TFT LCD
Display colour16 million colours
Display resolution480 x 272 pixels
Touch panelSingle touch analogue resistive
Backlight lifespan50000 hours with white
Brightness16 levels
Character fontASCII; ASCII (European characters); Chinese (simplified Chinese); Japanese (ANK, Kanji); Katakana; Korean; Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC (+/- 20 %)
Power consumption in W6.9 W
Inrush current30 A
Local signallingStatus LED green, steady for offline; Status LED green, steady for operating; Status LED green, flashing for operating; Status LED green, faded for stand-by; Status LED orange, flashing for software starting up; Status LED red, steady for power supply (ON); Status LED red, flashing for operating; Status LED red, off for power supply (OFF)
Number of pages200 application pages
Port Ethernet10/100BASE
Integrated connection type1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 (rate: 2400...115200 bps)bottom; COM1 serial link (rate: 2400...187500 bps)back; 1 USB 2.0 type Aback; 1 USB 2.0 type micro Bbottom; 1 Ethernet - female RJ45 - RS485
SupplyExternal supply
Realtime clockBuilt-in 0...50 °C; Built-in 10...90 % RH
Downloadable protocolsModbus; Uni-TE; Third party protocols
Product brandSchneider Electric Modicon; Mitsubishi Melsec; Omron Sysmac; Rockwell Automation Allen-Bradley; Siemens Simatic
Fixing modeBy 2 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201; By 2 screws conforming to IEC 61131-2; By 2 screws conforming to IEC 61000-6-2
Enclosure materialPC
Front materialAluminium
MarkingCE
Cut-out dimensions118.5 x 92.5 mm panel cut dimension
Height108.5 mm
Width134.5 mm
Depth43 mm
Net weight0.4 kg

Environment

Immunity to microbreaks2 ms
StandardsIEC 61000-6-4; IEC 61000-6-2; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201
Product certificationsCSA; CE; UKCA
Directives2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity10…90 % non-condensing
Operating altitude2000 m
IP degree of protectionIP20 (rear panel) conforming to IEC 61131-2; IP65 (front panel) conforming to IEC 61131-2
NEMA degree of protectionNEMA 4 front panel (indoor use); NEMA 13 front panel (in enclosure)
Shock resistance147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz)
Electromagnetic compatibilityElectrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV (signal ports); Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3; Electrostatic discharge immunity test - test level: 8 kV (air discharge)
