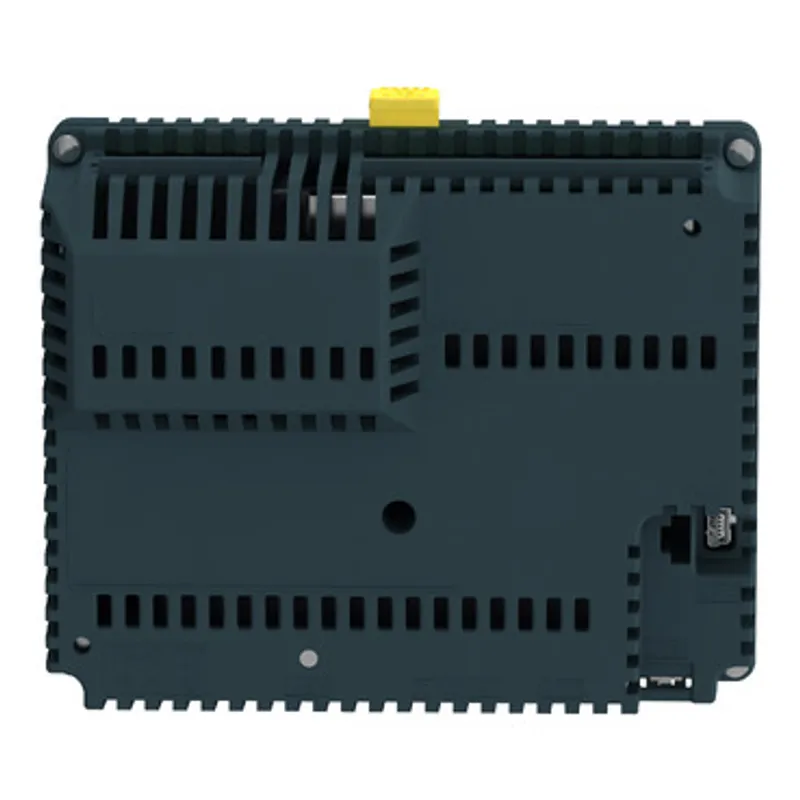

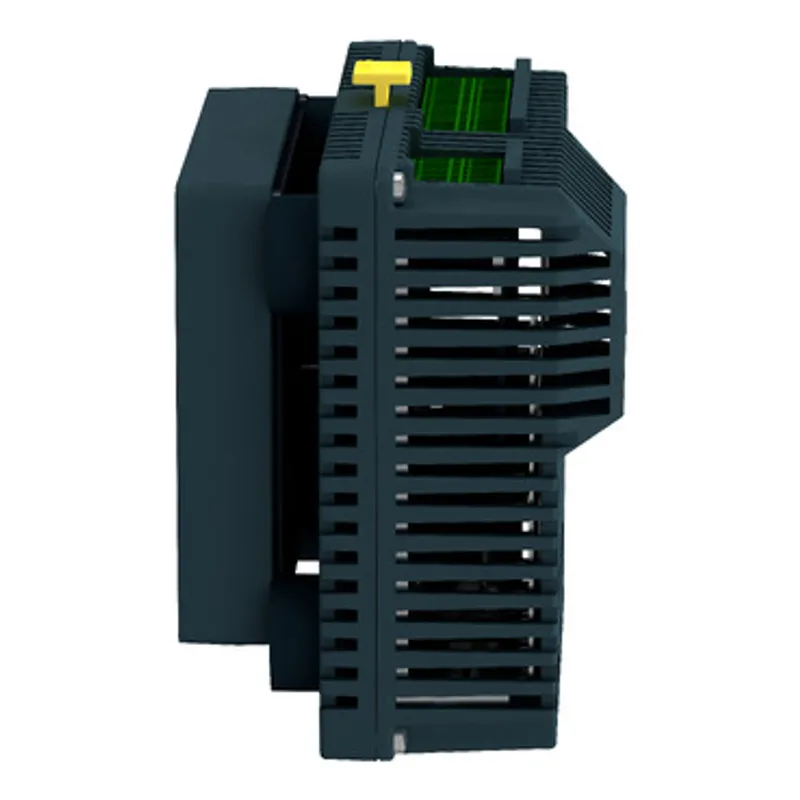

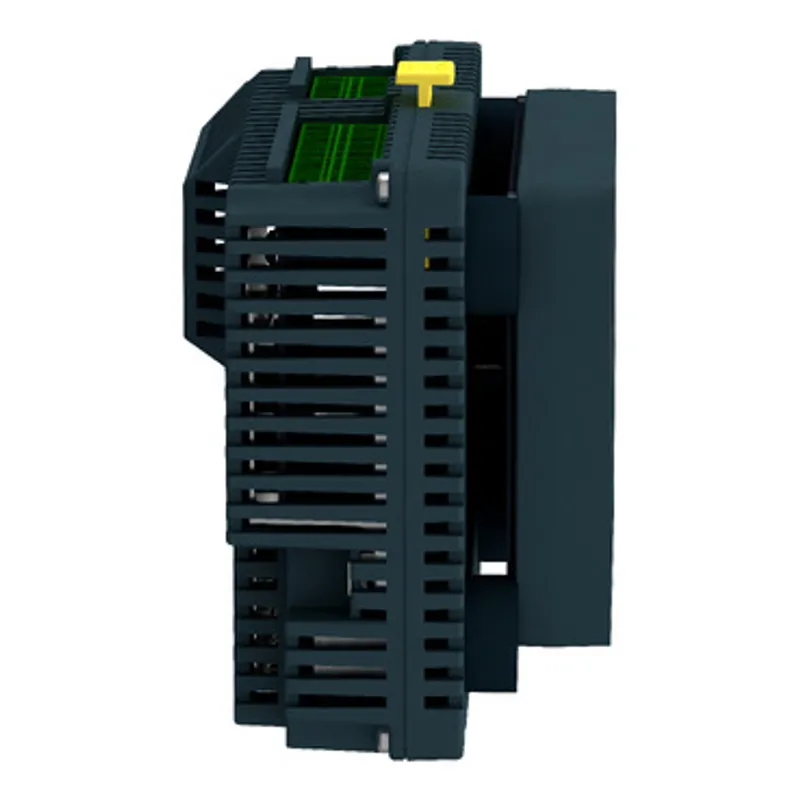

Schneider Electric HMISCU6B5

3”5 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out

MPN
HMISCU6B5
EAN
3595864175560
Category
Harmony SCU
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMISCU6B5?

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display and 128MB EPROM. It also has 8 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

Specifications

Specifications

Range of productHarmony SCU
Product or component typeSmall touch HMI controller
Display size3.5 inch
Display typeWith backlit LED colour TFT LCD
Touch panelAnalogue
Software packageSoMachine
Device presentationComplete product
Display resolution320 x 240 pixels QVGA
Backlight lifespan50000 hours with 65000 colours
Brightness16 levels via touch panel
View angle horiz x vert60° left, 60° right, 40° top, 60° bottom
Character fontChinese (simplified Chinese), ASCII, Taiwanese (traditional Chinese), Korean, Japanese (ANK, Kanji)
SupplyExternal source
[Us] rated supply voltage24 V (20.4…28.8 V)DC
Immunity to microbreaks10 ms
Inrush current30 A
Power consumption in W15 W
Local signallingNo indicator
Number of pagesLimited by internal memory capacity
Processor nameARM926EJ-S
Memory descriptionFlash NAND, 128 MB, Internal data storage FRAM, 128 kB, Application run DRAM, 128 MB
Integrated connection type1 serial link - RJ45 - RS232/RS485 (rate: <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A, CANopen master bus - SUB-D 9
Realtime clockBuilt-in
Downloadable protocolsModbus TCP/IP, CANopen, Modbus
Fixing modeBy 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
Enclosure materialPC/PBT
Shock resistance147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27, 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27
Vibration resistance+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6, 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Discrete input number2 for fast input (normal mode) conforming to IEC 61131-2 Type 1, 6 for digital input conforming to IEC 61131-2 Type 1
Discrete input voltage24 V DC, discrete input logic: sink or source (positive/negative)
Number of common point1 for fast input (HSC mode), 1 for digital input
Discrete input current7.83 mA for fast input, 5 mA for digital
Input impedance2.81 kOhm, 4.7 kOhm
Sensor power supply15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA, 15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA
Configurable filtering time0 ms no filter (none), 0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator (none/run/stop)
Maximum input frequency100 kHz for fast input (encoder mode) - control type A/B, 100 kHz for fast input - control type single phase, 100 kHz for fast input - control type pulse/direction
Maximum cable distance between devicesShielded cable: <10 m for fast input, Shielded cable: <100 m for digital input, Unshielded cable: <50 m for digital input
Connection pitch3.5 mm
Overvoltage protectionWith overvoltage protection
Isolation between channels and internal logic500 V DC
Isolation between channelsNone
Discrete output number2 fast output (normal mode), output logic: source, 6 digital output, output logic: source
Discrete output voltage24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s), 24 V DC (voltage limit: 5...30 V) with relay discrete output(s), 220 V AC (voltage limit: 100...250 V) with relay discrete output(s)
Input/output number2 for fast input, terminal(s): FI0...FI1, 2 for fast output, terminal(s): FQ0...FQ1, 6 for digital input, terminal(s): DI0...DI5, 6 for digital output, terminal(s): DQ0...DQ5
Discrete output current2 A 4 A), response time 5 ms with opening contact for digital output, 2 A 4 A), response time 2 ms with closing contact for digital output, 300 mA, response time 2 ms for fast output (normal mode), 50 mA, response time 2 ms for fast output (PWM or PTO mode)
Insulation resistance> 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth
Maximum output frequency100 kHz for fast output (PTO mode), 1 kHz for fast output (PWM mode)
Absolute accuracy error+/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode), 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode), +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode), +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode), +/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode)
Analogue input number2 for analog input, 2 for RTDs
Analogue input range0...20 mA/4...20 mA - resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %), -10...+10 V or 0...10 V - resolution: 12 bits + sign, input impedance: >= 1 MOhm
Analogue input typeRTD at - 200...600 °C - resolution: 16 bits temperature probe: Pt 100/Pt 1000, RTD at - 50...200 °C - resolution: 16 bits temperature probe: Ni 100/Ni 1000, RTD at - 200...760 °C - resolution: 16 bits (thermocouple J), RTD at - 240...1370 °C - resolution: 16 bits (thermocouple K), RTD at 0...1600 °C - resolution: 16 bits (thermocouple R), RTD at 200...1800 °C - resolution: 16 bits (thermocouple B), RTD at 0...1600 °C - resolution: 16 bits (thermocouple S), RTD at - 200...400 °C - resolution: 16 bits (thermocouple T), RTD at - 200...900 °C - resolution: 16 bits (thermocouple E), RTD at - 200...1300 °C - resolution: 16 bits (thermocouple N)
Analogue output number2 resistive load for 12 bits + sign
Analogue output range0...20 mA/4...20 mA (> 300 Ohm) for open-circuit, -10...10 V/0...10 V (> 2 kOhm) for short-circuit
Height74.95 mm
Width128 mm
Depth102 mm
Net weight0.551 kg
StandardsCSA C22.2 No 213 Class I Division 2, EN 61131-2, IEC 61000-6-2, ANSI/ISA 12-12-01, UL 508, FCC Class A
Product certificationscULus CSA 22-2 No 142, cUL 1604 Class 1 Division 2, C-Tick, GOST, KCC, cULus 508, UKCA, UKEX
MarkingCE
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity5…85 % without condensation
Operating altitude<= 2000 m
Storage altitude0…10000 m
Maximum pressure800...1114 hPa
IP degree of protectionIP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel
Pollution degree2 conforming to IEC 60664
Environmental characteristicCorrosive gas free

Packaging

Package 11 PCE, 27.000 cm × 18.600 cm × 11.500 cm (L × W × H), 1.169 kg
Package 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.153 kg
Package 364 P12, 120.000 cm × 80.000 cm × 73.000 cm (L × W × H), 93.448 kg
