Home / Schneider Electric / Galaxy VS UPS 40kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5x8

Available on request

Galaxy VS UPS 40kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5x8

Name: Schneider Electric GVSUPS40KMHS – Galaxy VS UPS 40kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5x8
Brand: Schneider Electric
SKU: GVSUPS40KMHS

MPN: GVSUPS40KMHS · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Galaxy VS
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	206 kg

Shipping & availability

When can GVSUPS40KMHS be shipped?

GVSUPS40KMHS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GVSUPS40KMHS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GVSUPS40KMHS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GVSUPS40KMHS, subject to availability and destination.

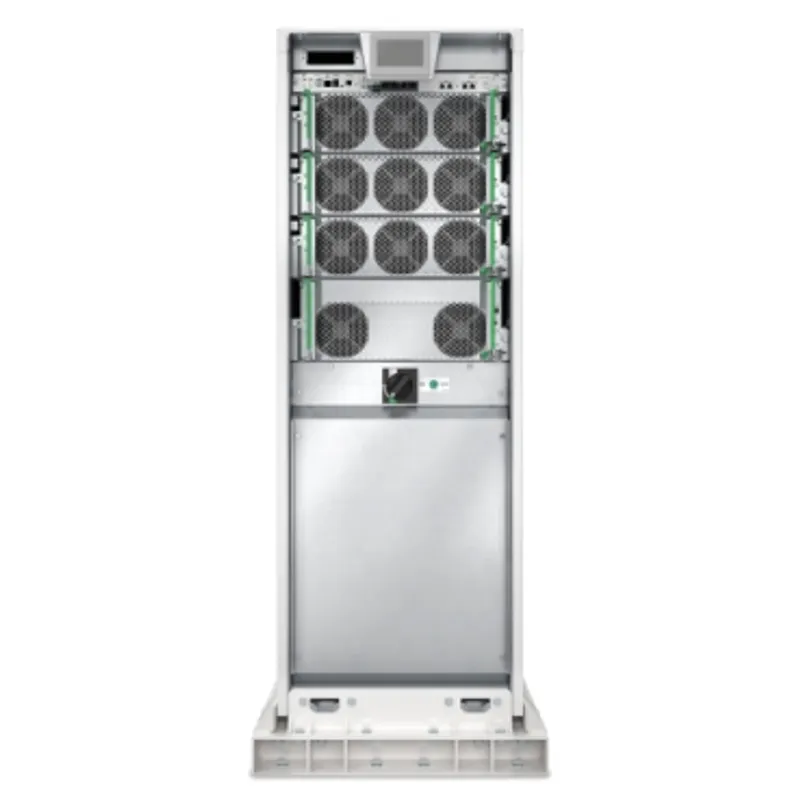

Highly efficient, easy-to-deploy 40 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.

Specifications

Presentation	Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.
Lead time	Usually Ships within 2 Weeks
Main Input Voltage	400 V AC 3 phases, 380 V AC 3 phases, 415 V AC 3 phases
Input voltage	380 V, 415 V
Maximum input current	72 A
Max short time withstand current	65 kA
Input harmonic distortion	Less than 3 % for full load
Load power factor	From 0.7 leading to 0.7 lagging without any derating
Input voltage limits	340...460 V 400 V
Network frequency	40...70 Hz
Output voltage	400 V AC 3 phases, 380 V AC 3 phases, 415 V AC 3 phases
Rated power in W	40 kW
rated power in VA	40 kVA
Bypass type	Built-in static bypass
Crest factor	2.5
Maximum configurable power in VA	40 kVA
Maximum configurable power in W	40 kW
Output harmonic distortion	< 1% linear load and < 5% non-linear load
Output overload operation	10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance	+/-1% after 50ms
Wave type	Sine wave
Output frequency	50 Hz sync to mains, 60 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised
Battery type	Lead-acid external sold separately, Li-Ion (Lithium-Ion) external sold separately
Battery voltage	480...576 V DC
Extended runtime	0
Max current discharge	136 A
Discharge battery voltage	307 V DC
Control panel	Touch screen LCD user interface
UPS connectivity	Embedded network management card 4
Colour	White
Height	148.5 cm
Width	52.1 mm
Depth	84.7 cm
Net weight	206 kg
USB compatible	No
Provided equipment	Dust filter, EcoStruxure IT ready (UPS), Installation guide, Integrated network management, Power modules ship installed, Start-up service
Bypass voltage tolerance	+/- 10 %
Redundant	No
Range of product	Galaxy VS
Product or component type	Uninterruptible power supply (UPS)
Standards	EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60721-4-2 level 2M2, UL 1778 5th edition
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-25…55 °C
IP degree of protection	IP21
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	10…80 % non-condensing
Acoustic level	68 dBA
Heat dissipation	4333 Btu/h
Operating altitude	0...3300 ft
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	168 cm
Package 1 Width	99 cm
Package 1 Length	64 cm
Package 1 Weight	250 kg
Warranty (in months)	12
