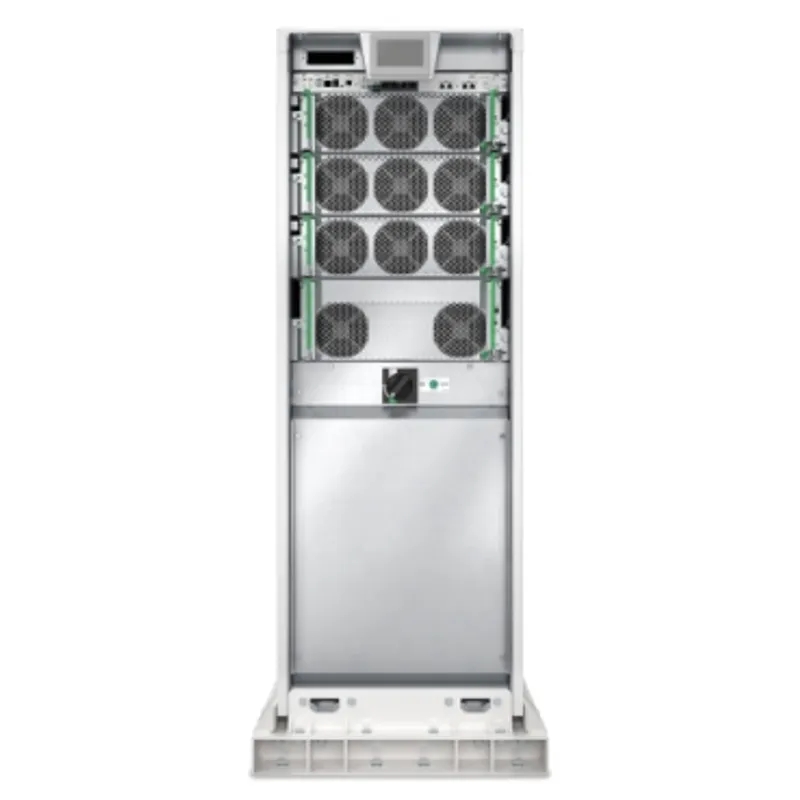

What is the Schneider Electric GVSUPS30KMHS?
Highly efficient, easy-to-deploy 30 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.
Specifications
Specifications
| Presentation | Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified. |
| Main Input Voltage | 400 V AC 3 phases, 380 V AC 3 phases, 415 V AC 3 phases |
| Input voltage | 380 V, 415 V |
| Maximum input current | 54 A |
| Max short time withstand current | 65 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Input voltage limits | 340...460 V 400 V |
| Network frequency | 40...70 Hz |
| Output voltage | 400 V AC 3 phases, 380 V AC 3 phases, 415 V AC 3 phases |
| Rated power in W | 30 kW |
| rated power in VA | 30 kVA |
| Bypass type | Built-in static bypass |
| Crest factor | 2.5 |
| Maximum configurable power in VA | 30 kVA |
| Maximum configurable power in W | 30 kW |
| Output harmonic distortion | < 1% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/-1% after 50ms |
| Wave type | Sine wave |
| Output frequency | 50 Hz sync to mains, 60 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised |
| Battery type | Lead-acid external sold separately, Li-Ion (Lithium-Ion) external sold separately |
| Battery voltage | 480...576 V DC |
| Extended runtime | 0 |
| Max current discharge | 102 A |
| Discharge battery voltage | 307 V DC |
| Control panel | Touch screen LCD user interface |
| UPS connectivity | Embedded network management card 4 |
| Colour | White |
| Height | 148.5 cm |
| Width | 52.1 mm |
| Depth | 84.7 cm |
| Net weight | 206 kg |
| USB compatible | No |
| Provided equipment | Dust filter, EcoStruxure IT ready (UPS), Installation guide, Integrated network management, Power modules ship installed, Start-up service |
| Bypass voltage tolerance | +/- 10 % |
| Redundant | No |
| Range of product | Galaxy VS |
| Product or component type | Uninterruptible power supply (UPS) |
| Standards | EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60721-4-2 level 2M2, UL 1778 5th edition |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| IP degree of protection | IP21 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 10…80 % non-condensing |
| Acoustic level | 68 dBA |
| Heat dissipation | 3122 Btu/h |
| Operating altitude | 0...3300 ft |
Packaging
| Package 1 | 1 PCE, 64 cm × 99 cm × 168 cm (L × W × H), 250 kg |
