Home / Schneider Electric / DOL combination starter,TeSys Deca Frame 2,GV2ME08 and LC1K06,2.5-4A,110V AC

Available on request

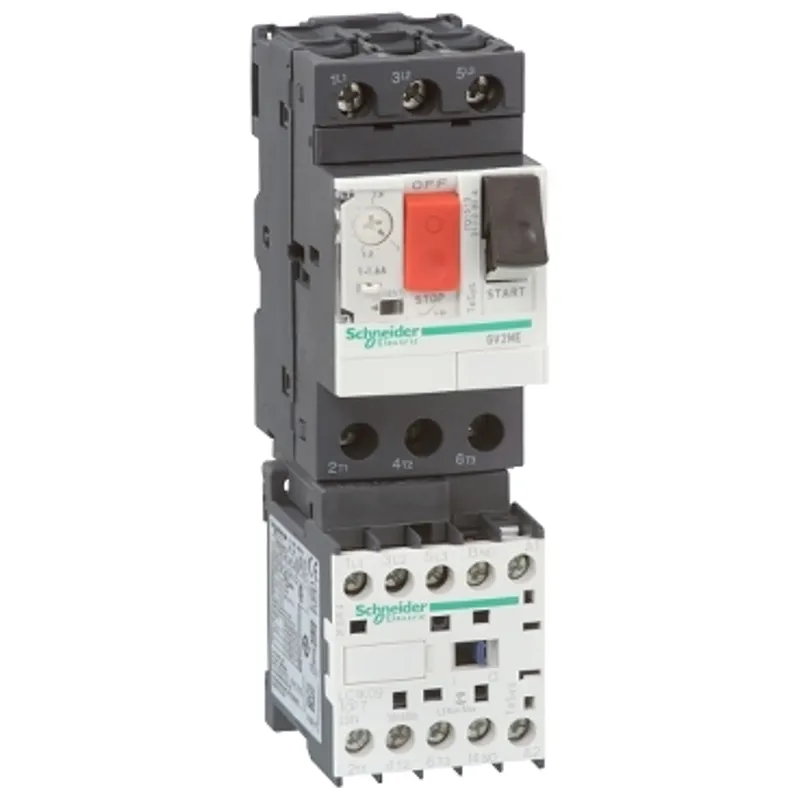

DOL combination starter,TeSys Deca Frame 2,GV2ME08 and LC1K06,2.5-4A,110V AC

Name: Schneider Electric GV2ME08K1P7 – DOL combination starter,TeSys Deca Frame 2,GV2ME08 and LC1K06,2.5-4A,110V AC
Brand: Schneider Electric
SKU: GV2ME08K1P7

MPN: GV2ME08K1P7 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	TeSys K motor starters
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.46 kg

Shipping & availability

When can GV2ME08K1P7 be shipped?

GV2ME08K1P7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GV2ME08K1P7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GV2ME08K1P7 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GV2ME08K1P7, subject to availability and destination.

Schneider Electric DOL combination starter,TeSys Deca Frame 2,GV2ME08 and LC1K06,2.5-4A,110V AC, manufacturer part number GV2ME08K1P7. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	TeSys
Device short name	GV2ME
Product or component type	Motor starter
Motor starter type	Non reversing
Poles description	3P
Utilisation category	AC-3, AC-3e
Motor power kW	1.1 kW at 400/415 V AC 50/60 Hz, 1.5 kW at 400/415 V AC 50/60 Hz, 1.5 kW at 440 V AC 50/60 Hz, 1.5 kW at 500 V AC 50/60 Hz, 2.2 kW at 500 V AC 50/60 Hz
[Uc] control circuit voltage	230 V AC 50/60 Hz
Magnetic tripping current	51 A
Device composition	1 3-pole contactor, 1 motor circuit breaker type GV2ME, 1 combination block GV2AF01
Coordination type	Type 1
thermal protection adjustment range	2.5…4 A
Breaking capacity	50 kA Iq at 400/415 V AC 50/60 Hz conforming to IEC 60947-4-1, 50 kA Iq at 440 V AC 50/60 Hz conforming to IEC 60947-4-1, 50 kA Iq at 500 V AC 50/60 Hz conforming to IEC 60947-4-1
Net weight	0.46 kg
Height	152 mm
Width	45 mm
Depth	87 mm
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.5 cm
Package 1 Width	15.8 cm
Package 1 Length	5.0 cm
Package 1 Weight	450.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	12
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.75 kg
Warranty (in months)	18
