Schneider Electric

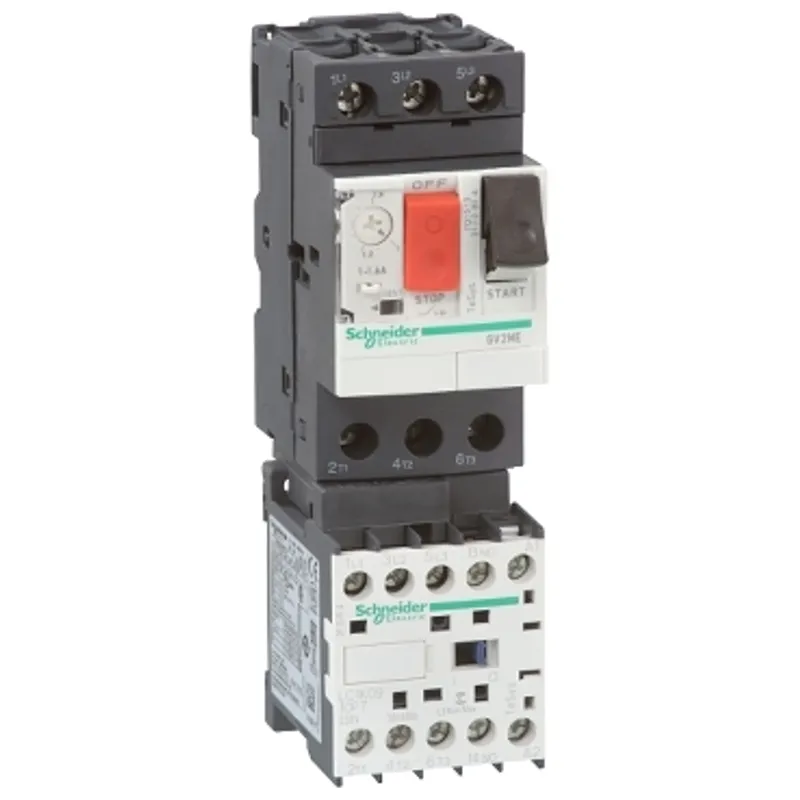

GV2ME06K1BW3DOL combination starter,TeSys Deca Frame 2,GV2ME06 and LC1K06,1-1.6A,24V DC
Schneider Electric GV2ME08K1BW3
DOL combination starter,TeSys Deca Frame 2,GV2ME08 and LC1K06,2.5-4A,24V DC
- MPN
- GV2ME08K1BW3
- EAN
- 3389110948684
- Category
- TeSys K motor starters
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original GV2ME08K1BW3 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric GV2ME08K1BW3?
"This product is TeSys GV2ME DOL combination starter, themal setting range is 2.5…4A." "It is pre-assembled with 1 motor circuit breaker GV2ME, 1 3-pole contactor LC1K and 1 combination block GV2AF01." "It provides a 24V DC control circuit, connection by screw terminals." "It can work at ambient temperature -20/+50°C, it procures high reliability and durability." "Its breaking performance can be increased by adding a current limiter GV1L3."
Specifications
Specifications
| Range | TeSys |
| Device short name | GV2ME |
| Product or component type | Motor starter |
| Motor starter type | Non reversing |
| Poles description | 3P |
| Utilisation category | AC-3, AC-3e |
| Motor power kW | 1.1 kW at 400/415 V AC 50/60 Hz, 1.5 kW at 400/415 V AC 50/60 Hz, 1.5 kW at 440 V AC 50/60 Hz, 1.5 kW at 500 V AC 50/60 Hz, 2.2 kW at 500 V AC 50/60 Hz |
| [Uc] control circuit voltage | 24 V DC |
| Magnetic tripping current | 51 A |
| Device composition | 1 combination block GV2AF01, 1 motor circuit breaker type GV2ME, 1 3-pole contactor |
| Coordination type | Type 1 |
| thermal protection adjustment range | 2.5…4 A |
| Breaking capacity | 50 kA Iq at 400/415 V AC 50/60 Hz conforming to IEC 60947-4-1, 50 kA Iq at 440 V AC 50/60 Hz conforming to IEC 60947-4-1, 50 kA Iq at 500 V AC 50/60 Hz conforming to IEC 60947-4-1 |
| Net weight | 0.46 kg |
| Height | 152 mm |
| Width | 45 mm |
| Depth | 87 mm |
Packaging
| Package 1 | 1 PCE, 8.7 cm × 15.7 cm × 5.0 cm (L × W × H), 494.0 g |
| Package 2 | 12 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 6.275 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
GV2ME08K1BW3: frequently asked questions
Can I still buy the GV2ME08K1BW3 now that it is discontinued?
Yes. Schneider Electric has discontinued the GV2ME08K1BW3, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can GV2ME08K1BW3 be shipped?
GV2ME08K1BW3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GV2ME08K1BW3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GV2ME08K1BW3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GV2ME08K1BW3, subject to availability and destination.
