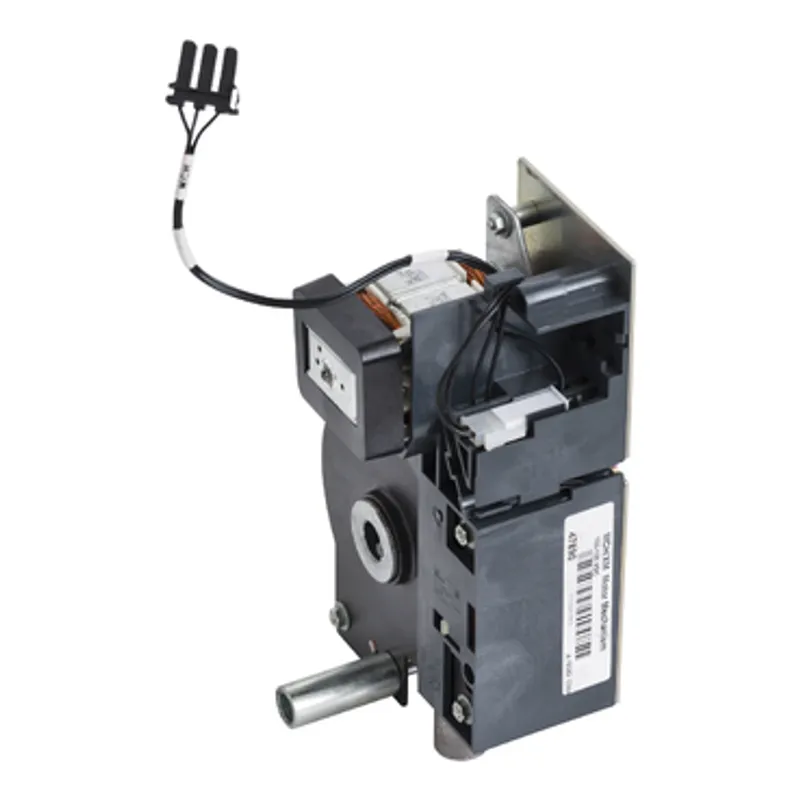

Schneider Electric EXECH04
Electrical motor, EasyPact EXE, remote control, 48 to 60Vac, 50/60Hz
- MPN
- EXECH04
- EAN
- 3606481177803
- Category
- EasyPact EXE
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric EXECH04?
Schneider Electric Electrical motor, EasyPact EXE, remote control, 48 to 60Vac, 50/60Hz, manufacturer part number EXECH04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | EasyPact EXE, Evolis |
| Device short name | MCH |
| Product or component type | Motor mechanism |
| Range compatibility | Evolis, EasyPact EXE |
| Device application | Automatic spring charging |
| Control type | Remote control |
| Rated supply voltage of auxiliary and control circuits (Ua) | 48...60 V AC/DC |
| Threshold tripping voltage | 0.85...1.1 Ua |
| Charging time | 6 s maximum |
| Maximum operating frequency | <= 3 cycles per minute |
| Overcurrent protection | 2...3 x In 0.1 s motor |
| Power consumption in W | 180 W |
| Input current | 10 mA at 240 V |
| Mounting mode | Fixed |
| Accessory / separate part category | Spare part |
| Accessory / separate part type | Base function |
Packaging
| Package 1 | 1 PCE, 23.0 cm × 13.0 cm × 12.5 cm (L × W × H), 1.946 kg |
| Package 2 | 6 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 11.93 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
EXECH04: frequently asked questions
When can EXECH04 be shipped?
EXECH04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EXECH04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EXECH04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EXECH04, subject to availability and destination.
