Schneider Electric EVP1CNS32322

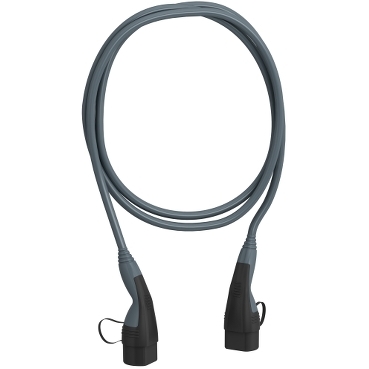

Charging cable, EVlink, 5m, 32A, 3-Phase, T2 connector at each end of cable
- MPN
- EVP1CNS32322
- EAN
- 3606480703287
- Category
- EVlink Pro AC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric EVP1CNS32322?
This EVlink cabling accessory is a three-phase charging cable allowing to connect to an electric vehicle. It can provide a In rated current of 32A on a Us rated supply voltage of 380VAC up to 415VAC. The frequency is 50Hz to 60Hz. The cable length is 5m. At charging station end, as well as at vehicle end, the cable has T2 connector with silver plated contacts limiting overheating. The IP degree of protection is IP44. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C.
Specifications
Specifications
| Range | EVlink |
| Product or component type | Charging cable |
| Accessory / separate part category | Cabling accessory |
| Network number of phases | Three phase |
| Poles description | 3P + N |
| [In] rated current | 32 A |
| [Us] rated supply voltage | 380...415 V AC 50/60 Hz |
| Socket number | 2 |
| plug type | T2 / silver plated contacts charging station end |
| Connector type | T2 vehicle end silver plated contacts, T2 charging station end silver plated contacts |
| Range compatibility | EVlink EVlink parking EVF1 charging station, EVlink EVlink parking EVW1 charging station, EVlink EVlink parking EVF2 charging station, EVlink EVlink parking EVW2 charging station, EVlink EVlink Smart Wallbox EVB1 charging station, EVlink EVlink Wallbox EVH2 charging station, EVlink EVlink Pro AC EVB3 charging station, EVlink EVlink Pro AC Metal EVB3 charging station |
| Standards | IEC 62196-2, IEC 62196-1 |
| Product certifications | CE |
| Length | 5 m |
| Net weight | 3.2 kg |
| Colour | Grey |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 5…95 % |
Packaging
| Package 1 | 1 PCE, 42.000 cm × 33.000 cm × 10.000 cm (L × W × H), 3.378 kg |
| Package 2 | 25 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 92.375 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
EVP1CNS32322: frequently asked questions
