Home / Schneider Electric / Linergy TR Cable ends / Schneider Electric DZ5CE010D
Schneider Electric

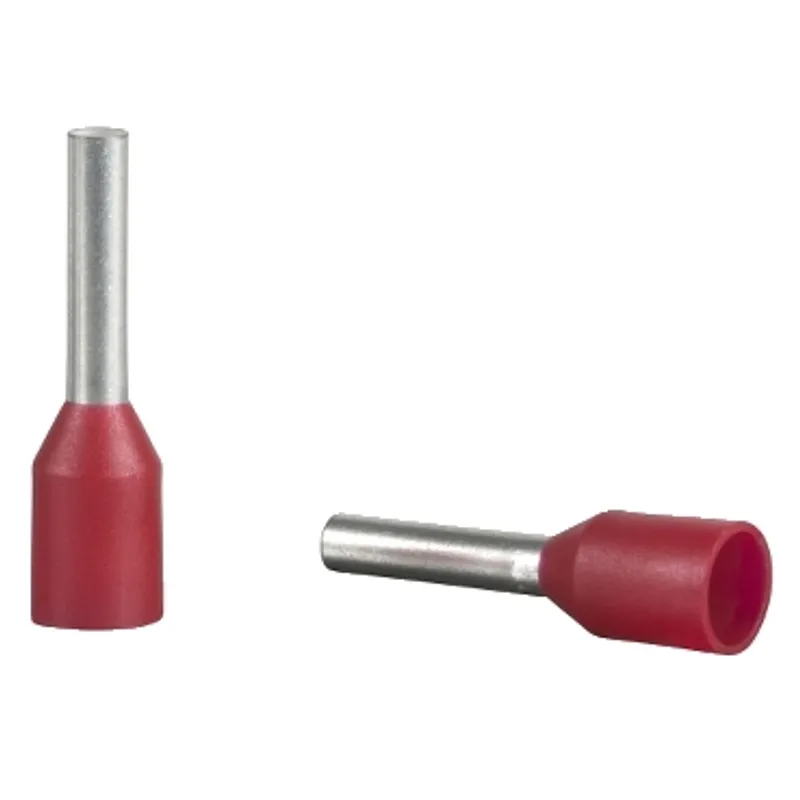

Schneider Electric DZ5CE010D

Cable ends, Linergy TR cable ends, single conductor, red, 1mm², for insulated cable, medium size, 10 sets of 100

MPN
DZ5CE010D
EAN
3389110211337
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original DZ5CE010D (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric DZ5CE010D?

Linergy cable end insulated without marker tag holder. It applied to single conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified.

Specifications

Specifications

Range of productLinergy
Product or component typeCable end
Cable end sizeMedium
StandardsDIN 46228-4
Type of packingString of bags
Quantity per set10 sets of 100
Cable cross section1 mm²
Cable end typeSingle conductor
Additional informationWithout marker tag holder
ColourRed
Bezel materialHalogen-free plastic
Tube materialCopper conforming to ISO 1337
Number of cables1
AWG gaugeAWG 18
Bezel sizeØ 3.5 mm
Tube diameter1.7 mm
Length14 mm
Tube length8 mm
Net weight0.1 kg
Product certificationsUL
Ambient air temperature for operation-20…105 °C

Packaging

Package 11 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g
Package 21000 BB1, 17.000 cm × 11.500 cm × 2.500 cm (L × W × H), 109.000 g
Package 315000 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 1.841 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

DZ5CE010D: frequently asked questions

Can I still buy the DZ5CE010D now that it is discontinued?

Yes. Schneider Electric has discontinued the DZ5CE010D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can DZ5CE010D be shipped?

DZ5CE010D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DZ5CE010D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DZ5CE010D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CE010D, subject to availability and destination.
