Schneider Electric
DZ5CE005Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², medium size, 10 sets of 100
Schneider Electric DZ5CE007
Cable ends, Linergy TR cable ends, single conductor, grey, 0.75mm², 10 sets of 100
- MPN
- DZ5CE007
- EAN
- 3389110536997
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

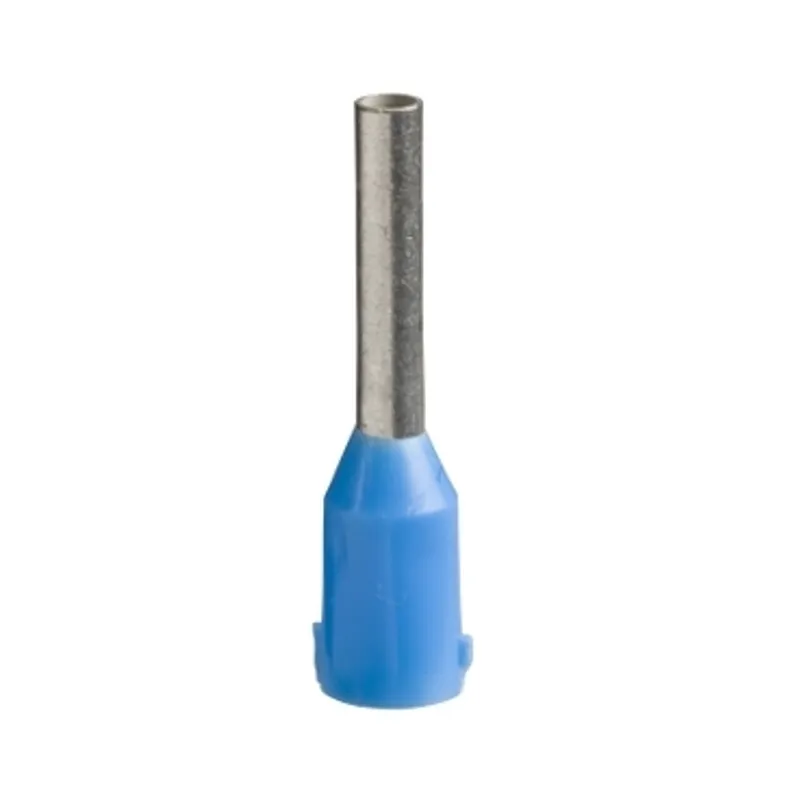

What is the Schneider Electric DZ5CE007?
Linergy cable end insulated without marker tag holder. It applied to single conductor with 0.75 mm² cable cross section. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | String of bags |
| Quantity per set | 10 sets of 100 |
| Cable cross section | 0.75 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Blue |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 20 |
| Bezel size | Ø 3.3 mm |
| Tube diameter | 1.5 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| Net weight | 0.1 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 1000 BB1, 18.000 cm × 11.000 cm × 2.500 cm (L × W × H), 101.000 g |
| Package 3 | 80000 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.356 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CE007: frequently asked questions
When can DZ5CE007 be shipped?
DZ5CE007 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CE007 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CE007 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CE007, subject to availability and destination.
