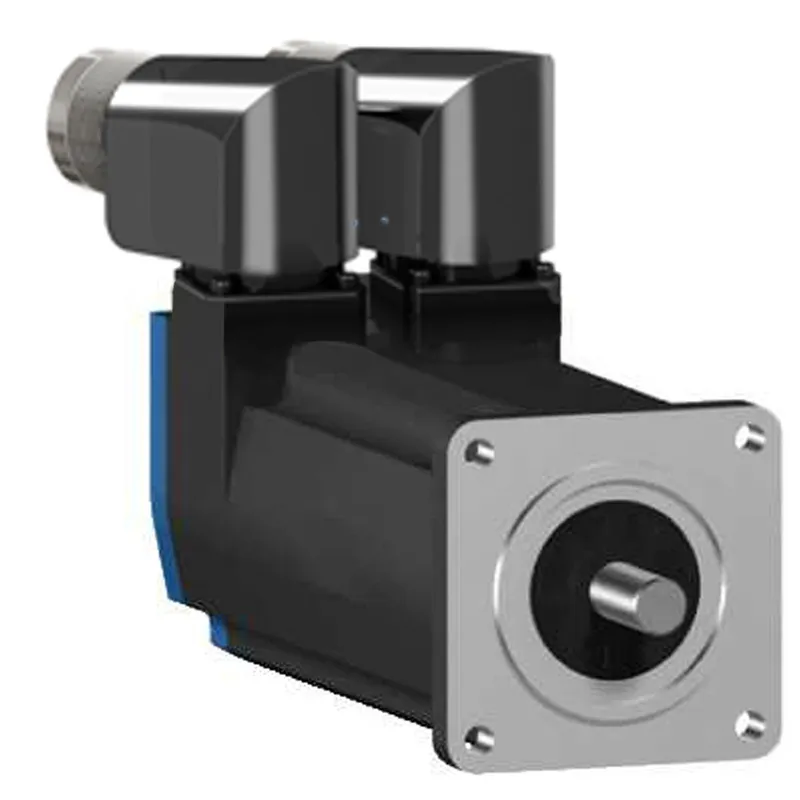

Schneider Electric BSH0552P11F2A – AC servo motor BSH - 0.9 N.m - 4000 rpm - keyed shaft - with brake - IP50

MPN: BSH0552P11F2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BSH0552P11F2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 05
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389118158757
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BSH0552P11F2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BSH0552P11F2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BSH0552P11F2A be shipped?

BSH0552P11F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0552P11F2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0552P11F2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0552P11F2A, subject to availability and destination.

"This product is part of the Lexium range, an offer of motion servo drives and servo motors." "The 6-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 9000RPM and IP54 parallel keyed shaft with holding brake." "It has a single-turn (131072 points/turn) SinCos Hiperface high-res absolute encoder giving an angular shaft position precise, less than ±1.3arc min." "BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density." "It is a synchronous servo motor with 480V supply voltage, 1.2A continuous stall current, 0.67W maximum continuous power and 0.8N.m to 0.9N.m continuous stall torque." "The shaft dimensions are 9mm (Diameter) x 20mm (Length). It is furnished with rotatable angular connectors for electrical connection. It is an IP50 rated product." "Its dimensions are 154.5mm (Length) x 55mm (Width), with 63mm circle diameter of the mounting hole. It weighs 1.6kg." "The entire range conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, is UL and CSA certified." "This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives." "It supports international standard 55mm flange mount with a natural convection cooling system." "Lexium 05 meets your requirements for the simplest, most reliable and most cost-effective machines." "The high concentrate solution for your machines, this generation of motors and drives gives benefit of powerful solutions to design and optimise machines." Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	9000 rpm
Continuous stall torque	0.8 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.8 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.9 N.m for LXM05CU70M2, 200...240 V, single phase; 0.9 N.m for LXM05AD10M2, 200...240 V, single phase; 0.9 N.m for LXM05BD10M2, 200...240 V, single phase; 0.9 N.m for LXM05CD10M2, 200...240 V, single phase; 0.9 N.m for LXM05AD10M3X, 200...240 V, three phase; 0.9 N.m for LXM05BD10M3X at 1.5 A, 200...240 V, three phase; 0.9 N.m for LXM05CD10M3X, 200...240 V, three phase; 0.9 N.m for LXM15LD13M3, 230 V, single phase; 0.9 N.m for LXM15LD13M3, 230 V, three phase; 0.9 N.m for LXM15LU60N4, 230 V, three phase; 0.9 N.m for LXM05AD14N4, 380...480 V, three phase; 0.9 N.m for LXM05BD14N4, 380...480 V, three phase; 0.9 N.m for LXM05CD14N4, 380...480 V, three phase
Peak stall torque	2.5 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 2.5 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 2.5 N.m for LXM15LD13M3, 230 V, single phase; 2.17 N.m for LXM05CU70M2, 200...240 V, single phase; 2.7 N.m for LXM05AD10M2, 200...240 V, single phase; 2.7 N.m for LXM05BD10M2, 200...240 V, single phase; 2.7 N.m for LXM05CD10M2, 200...240 V, single phase; 2.5 N.m for LXM15LD13M3 at 1.5 A, 230 V, three phase; 2.26 N.m for LXM15LU60N4, 230 V, three phase; 2.7 N.m for LXM05AD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05AD14N4, 380...480 V, three phase; 2.7 N.m for LXM05BD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05BD14N4, 380...480 V, three phase; 2.7 N.m for LXM05CD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05CD14N4, 380...480 V, three phase
Nominal output power	400 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 400 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 250 W for LXM05AD10M2, 200...240 V, single phase; 250 W for LXM05BD10M2, 200...240 V, single phase; 250 W for LXM05CD10M2, 200...240 V, single phase; 250 W for LXM05CU70M2, 200...240 V, single phase; 310 W for LXM15LD13M3, 230 V, single phase; 250 W for LXM05AD10M3X at 1.5 A, 200...240 V, three phase; 250 W for LXM05AD14N4, 380...480 V, three phase; 250 W for LXM05BD10M3X, 200...240 V, three phase; 250 W for LXM05BD14N4, 380...480 V, three phase; 250 W for LXM05CD10M3X, 200...240 V, three phase; 250 W for LXM05CD14N4, 380...480 V, three phase; 310 W for LXM15LD13M3, 230 V, three phase; 310 W for LXM15LU60N4, 230 V, three phase
Nominal torque	0.65 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.65 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.75 N.m for LXM15LD13M3, 230 V, single phase; 2.17 N.m for LXM05CU70M2, 200...240 V, single phase; 2.7 N.m for LXM05AD10M2, 200...240 V, single phase; 2.7 N.m for LXM05BD10M2, 200...240 V, single phase; 2.7 N.m for LXM05CD10M2, 200...240 V, single phase; 0.75 N.m for LXM15LD13M3 at 1.5 A, 230 V, three phase; 0.75 N.m for LXM15LU60N4, 230 V, three phase; 2.7 N.m for LXM05AD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05AD14N4, 380...480 V, three phase; 2.7 N.m for LXM05BD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05BD14N4, 380...480 V, three phase; 2.7 N.m for LXM05CD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05CD14N4, 380...480 V, three phase
Nominal speed	6000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 6000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 4000 rpm for LXM15LD13M3, 230 V, single phase; 4000 rpm for LXM15LU60N4, 230 V, three phase; 3000 rpm for LXM05CU70M2, 200...240 V, single phase; 3000 rpm for LXM05AD10M2, 200...240 V, single phase; 3000 rpm for LXM05BD10M2, 200...240 V, single phase; 3000 rpm for LXM05CD10M2 at 1.5 A, 200...240 V, single phase; 3000 rpm for LXM05AD10M3X, 200...240 V, three phase; 3000 rpm for LXM05AD14N4, 380...480 V, three phase; 3000 rpm for LXM05BD10M3X, 200...240 V, three phase; 3000 rpm for LXM05BD14N4, 380...480 V, three phase; 3000 rpm for LXM05CD10M3X, 200...240 V, three phase; 3000 rpm for LXM05CD14N4, 380...480 V, three phase; 4000 rpm for LXM15LD13M3, 230 V, three phase
Product compatibility	LXM05AD10M2 at 200...240 V single phase; LXM05BD10M2 at 200...240 V single phase; LXM05CD10M2 at 200...240 V single phase; LXM05CU70M2 at 200...240 V single phase; LXM15LD13M3 at 230 V single phase; LXM15LU60N4 at 230 V three phase; LXM32.U60N4 at 400 V three phase; LXM32.U60N4 at 480 V three phase; LXM05AD10M3X at 200...240 V three phase; LXM05BD10M3X at 200...240 V three phase; LXM05CD10M3X at 200...240 V three phase; LXM15LD13M3 at 230 V three phase; LXM05AD14N4 at 380...480 V three phase; LXM05BD14N4 at 380...480 V three phase; LXM05CD14N4 at 380...480 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn
Holding brake	With
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 05; Lexium 32; Lexium 15
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	1.2 A
maximum continuous power	0.67 W
Maximum current Irms	5.9 A for LXM15LD13M3; 5.9 A for LXM15LU60N4; 4.8 A for LXM05CU70M2; 4.8 A for LXM05AD10M2; 4.8 A for LXM05AD10M3X; 4.8 A for LXM05AD14N4; 4.8 A for LXM05BD10M2; 4.8 A for LXM05BD10M3X; 4.8 A for LXM05BD14N4; 4.8 A for LXM05CD10M2; 4.8 A for LXM05CD10M3X; 4.8 A for LXM05CD14N4; 4.8 A for LXM32.U60N4
Maximum permanent current	4.8 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	9 mm
Shaft length	20 mm
Key width	12 mm
Feedback type	Single turn SinCos Hiperface
Holding torque	0.8 N.m holding brake
Motor flange size	55 mm
Number of motor stacks	2
Torque constant	0.7 N.m/A at 120 °C
Back emf constant	40 V/krpm at 120 °C
Number of motor poles	3.0
Rotor inertia	0.1173 kg.cm²
Stator resistance	17.4 Ohm at 20 °C
Stator inductance	18.2 mH at 20 °C
Stator electrical time constant	2.03 ms at 20 °C
Maximum radial force Fr	190 N at 7000 rpm; 190 N at 8000 rpm; 200 N at 6000 rpm; 220 N at 5000 rpm; 230 N at 4000 rpm; 260 N at 3000 rpm; 290 N at 2000 rpm; 370 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Brake pull-in power	10 W
Type of cooling	Natural convection
Length	181 mm
Centring collar diameter	40 mm
Centring collar depth	2 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	63 mm
Net weight	1.6 kg
Sizing reference	BSH0552P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	4.8 A
Inertia	0.021 kg.cm² of brake; 0.096 kg.cm² of motor
