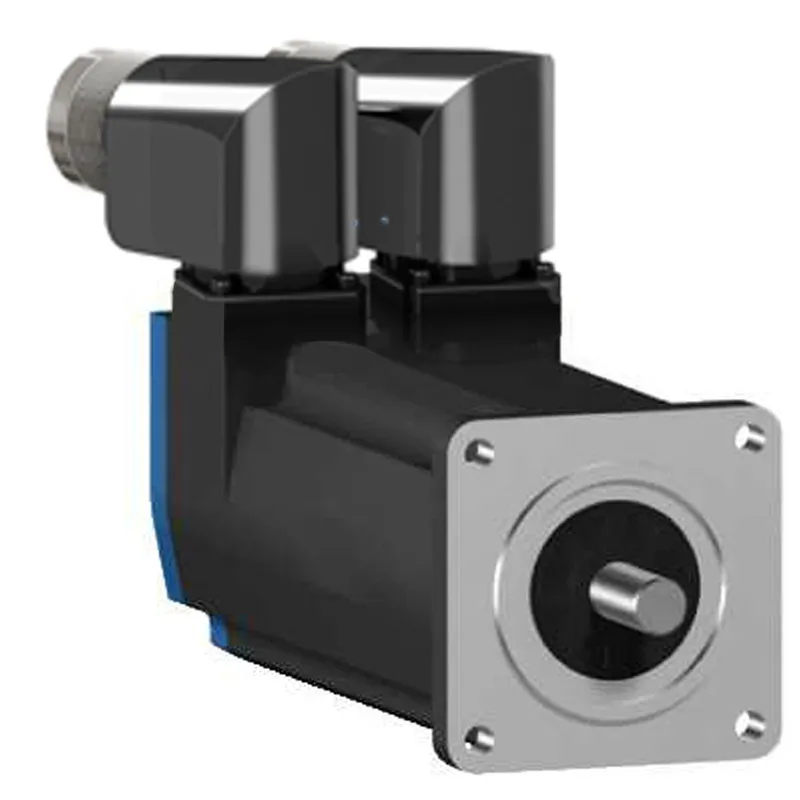

This product is part of the Lexium 05 range, an offer of motion servo drives and servo motors. It is a three-phase synchronous servo motor with integrated SinCos feedback encoder. Its nominal torque is 0.81N·m, nominal speed is 3000rpm, and nominal power is 250W. It provides high dynamic response with low rotor inertia and high power density design. It delivers continuous and peak torque adapted to dynamic load variations in machines. It ensures precise positioning through high-resolution encoder feedback. It is a 6-10‑pole rotor with an NdFeB magnet and a robust housing finished in RAL 9005 opaque black, weighing 1.72kg This motor is intended for applications where both high torque and precise positioning are required. It complies with IEC 60072-1 and IEC 50347 standards. It is compatible with LXM32nU60N4 (3-phase) or LXM32nU90M2 (single-phase) servodrives. It is supplied as a single unit, with no cables or accessories included. It is mounted via a 4-bolt flange and can be installed horizontally or vertically (IMB5, IMV1, or IMV3), either in a direct-drive or coupled to a gearbox. Lexium servo drives, paired with BSH servomotors, offer a complete, customizable motion control solution for industrial machine makers. Lexium 32 is designed to maximize machine productivity through precise and dynamic motion control. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	9000 rpm
Continuous stall torque	0.8 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.8 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.9 N.m for LXM05CU70M2, 200...240 V, single phase; 0.9 N.m for LXM05AD10M2, 200...240 V, single phase; 0.9 N.m for LXM05BD10M2, 200...240 V, single phase; 0.9 N.m for LXM05CD10M2, 200...240 V, single phase; 0.9 N.m for LXM05AD10M3X, 200...240 V, three phase; 0.9 N.m for LXM05BD10M3X at 1.5 A, 200...240 V, three phase; 0.9 N.m for LXM05CD10M3X, 200...240 V, three phase; 0.9 N.m for LXM15LD13M3, 230 V, single phase; 0.9 N.m for LXM15LD13M3, 230 V, three phase; 0.9 N.m for LXM15LU60N4, 230 V, three phase; 0.9 N.m for LXM05AD14N4, 380...480 V, three phase; 0.9 N.m for LXM05BD14N4, 380...480 V, three phase; 0.9 N.m for LXM05CD14N4, 380...480 V, three phase
Peak stall torque	2.5 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 2.5 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 2.5 N.m for LXM15LD13M3, 230 V, single phase; 2.17 N.m for LXM05CU70M2, 200...240 V, single phase; 2.7 N.m for LXM05AD10M2, 200...240 V, single phase; 2.7 N.m for LXM05BD10M2, 200...240 V, single phase; 2.7 N.m for LXM05CD10M2, 200...240 V, single phase; 2.5 N.m for LXM15LD13M3 at 1.5 A, 230 V, three phase; 2.26 N.m for LXM15LU60N4, 230 V, three phase; 2.7 N.m for LXM05AD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05AD14N4, 380...480 V, three phase; 2.7 N.m for LXM05BD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05BD14N4, 380...480 V, three phase; 2.7 N.m for LXM05CD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05CD14N4, 380...480 V, three phase
Nominal output power	400 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 400 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 250 W for LXM05AD10M2, 200...240 V, single phase; 250 W for LXM05BD10M2, 200...240 V, single phase; 250 W for LXM05CD10M2, 200...240 V, single phase; 250 W for LXM05CU70M2, 200...240 V, single phase; 310 W for LXM15LD13M3, 230 V, single phase; 250 W for LXM05AD10M3X at 1.5 A, 200...240 V, three phase; 250 W for LXM05AD14N4, 380...480 V, three phase; 250 W for LXM05BD10M3X, 200...240 V, three phase; 250 W for LXM05BD14N4, 380...480 V, three phase; 250 W for LXM05CD10M3X, 200...240 V, three phase; 250 W for LXM05CD14N4, 380...480 V, three phase; 310 W for LXM15LD13M3, 230 V, three phase; 310 W for LXM15LU60N4, 230 V, three phase
Nominal torque	0.65 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.65 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.75 N.m for LXM15LD13M3, 230 V, single phase; 2.17 N.m for LXM05CU70M2, 200...240 V, single phase; 2.7 N.m for LXM05AD10M2, 200...240 V, single phase; 2.7 N.m for LXM05BD10M2, 200...240 V, single phase; 2.7 N.m for LXM05CD10M2, 200...240 V, single phase; 0.75 N.m for LXM15LD13M3 at 1.5 A, 230 V, three phase; 0.75 N.m for LXM15LU60N4, 230 V, three phase; 2.7 N.m for LXM05AD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05AD14N4, 380...480 V, three phase; 2.7 N.m for LXM05BD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05BD14N4, 380...480 V, three phase; 2.7 N.m for LXM05CD10M3X, 200...240 V, three phase; 2.7 N.m for LXM05CD14N4, 380...480 V, three phase
Nominal speed	6000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 6000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 4000 rpm for LXM15LD13M3, 230 V, single phase; 4000 rpm for LXM15LU60N4, 230 V, three phase; 3000 rpm for LXM05CU70M2, 200...240 V, single phase; 3000 rpm for LXM05AD10M2, 200...240 V, single phase; 3000 rpm for LXM05BD10M2, 200...240 V, single phase; 3000 rpm for LXM05CD10M2 at 1.5 A, 200...240 V, single phase; 3000 rpm for LXM05AD10M3X, 200...240 V, three phase; 3000 rpm for LXM05AD14N4, 380...480 V, three phase; 3000 rpm for LXM05BD10M3X, 200...240 V, three phase; 3000 rpm for LXM05BD14N4, 380...480 V, three phase; 3000 rpm for LXM05CD10M3X, 200...240 V, three phase; 3000 rpm for LXM05CD14N4, 380...480 V, three phase; 4000 rpm for LXM15LD13M3, 230 V, three phase
Product compatibility	LXM05AD10M2 at 200...240 V single phase; LXM05BD10M2 at 200...240 V single phase; LXM05CD10M2 at 200...240 V single phase; LXM05CU70M2 at 200...240 V single phase; LXM15LD13M3 at 230 V single phase; LXM15LU60N4 at 230 V three phase; LXM32.U60N4 at 400 V three phase; LXM32.U60N4 at 480 V three phase; LXM05AD10M3X at 200...240 V three phase; LXM05BD10M3X at 200...240 V three phase; LXM05CD10M3X at 200...240 V three phase; LXM15LD13M3 at 230 V three phase; LXM05AD14N4 at 380...480 V three phase; LXM05BD14N4 at 380...480 V three phase; LXM05CD14N4 at 380...480 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 05; Lexium 15; Lexium 32
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	1.2 A
maximum continuous power	0.67 W
Maximum current Irms	5.9 A for LXM15LD13M3; 5.9 A for LXM15LU60N4; 4.8 A for LXM05CU70M2; 4.8 A for LXM05AD10M2; 4.8 A for LXM05AD10M3X; 4.8 A for LXM05AD14N4; 4.8 A for LXM05BD10M2; 4.8 A for LXM05BD10M3X; 4.8 A for LXM05BD14N4; 4.8 A for LXM05CD10M2; 4.8 A for LXM05CD10M3X; 4.8 A for LXM05CD14N4; 4.8 A for LXM32.U60N4
Maximum permanent current	4.8 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	9 mm
Shaft length	20 mm
Key width	12 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	55 mm
Number of motor stacks	2
Torque constant	0.7 N.m/A at 120 °C
Back emf constant	40 V/krpm at 120 °C
Number of motor poles	3.0
Rotor inertia	0.096 kg.cm²
Stator resistance	17.4 Ohm at 20 °C
Stator inductance	18.2 mH at 20 °C
Stator electrical time constant	2.03 ms at 20 °C
Maximum radial force Fr	190 N at 7000 rpm; 190 N at 8000 rpm; 200 N at 6000 rpm; 220 N at 5000 rpm; 230 N at 4000 rpm; 260 N at 3000 rpm; 290 N at 2000 rpm; 370 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	154.4 mm
Centring collar diameter	40 mm
Centring collar depth	2 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	63 mm
Net weight	1.5 kg
Sizing reference	BSH0552P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	4.8 A
Inertia	0.0 kg.cm² of brake; 0.096 kg.cm² of motor
