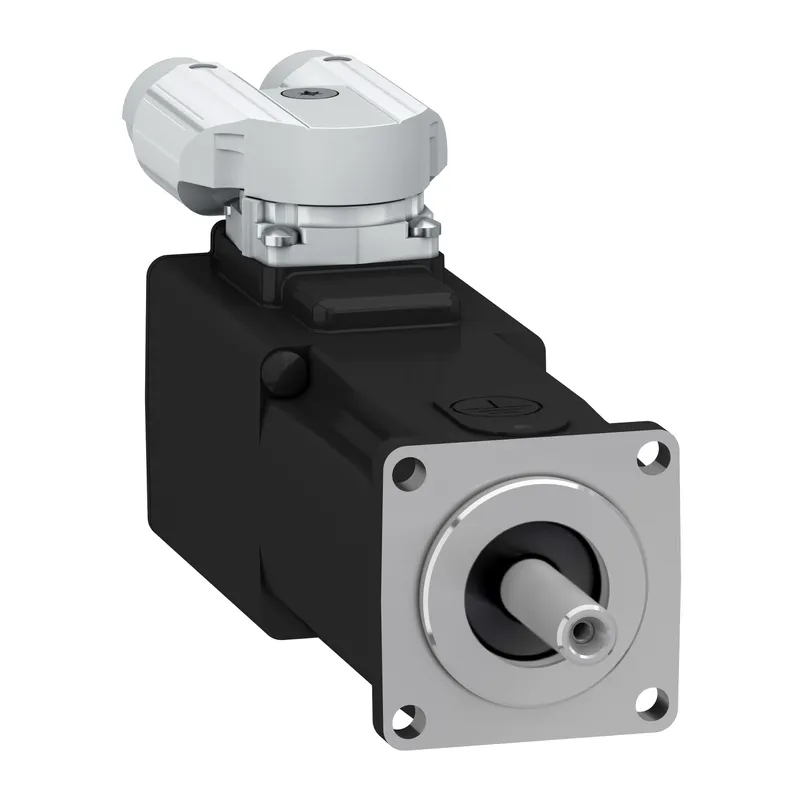

AC servo motor BSH - 0.21N.m - 9000 rpm - untapped shaft - with brake - IP65

MPN
BSH0401P26F2A
EAN
3606485467184
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BSH0401P26F2A?

Schneider Electric BSH0401P26F2A — AC servo motor BSH - 0.21N.m - 9000 rpm - untapped shaft - with brake - IP65 (Lexium 32 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBSH
Product or component typeServo motor
Maximum mechanical speed10000 rpm
Continuous stall torque0.21 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.21 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.21 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Peak stall torque0.8 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.8 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.8 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal output power166 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 166 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 77 W for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal torque0.176 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.176 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.184 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal speed9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase
Shaft endSmooth shaft
IP degree of protectionIP65 standard
Speed feedback resolution32768 points/turn
Holding brakeWith
Mounting supportInternational standard flange
Electrical connectionRotatable right-angled connectors

Complementary

Range compatibilityLexium 32
supply voltage max400 V
Network number of phasesThree phase
Continuous stall current1.12 A
maximum continuous power220 W
Maximum current Irms4.7 A for LXM32.U60N4 at 480 V; 4.7 A for LXM32.U60N4 at 400 V; 4.7 A for LXM32.U45M2 at 230 V
Maximum permanent current1.12 A
Switching frequency8 kHz
Second shaftWithout second shaft end
Shaft diameter8 mm
Shaft length25 mm
Feedback typeSingle turn SinCos Hiperface
Holding torque0.4 N.m holding brake
Motor flange size40 mm
Number of motor stacks1
Torque constant0.19 N.m/A at 120 °C
Back emf constant13.6 V/krpm at 20 °C
Number of motor poles5.0
Rotor inertia0.04 kg.cm²
Stator resistance17.2 Ohm at 20 °C
Stator inductance7.3 mH at 20 °C
Stator electrical time constant0.85 ms at 20 °C
Maximum axial force Fa0.2 x Fr
Brake pull-in power5.8 W
Type of coolingNatural convection
Length99.4 mm
Centring collar diameter30 mm
Centring collar depth2.5 mm
Number of mounting holes4
Mounting holes diameter4.5 mm
Circle diameter of the mounting holes46 mm
Net weight0.6 kg
Sizing referenceBSH0401P
Network number of phases3
Accuracy error [angular]0.08 °
Temperature copper hot120 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Output current 3s peak4.5 A
Inertia0.017 kg.cm² of brake; 0.023 kg.cm² of motor
