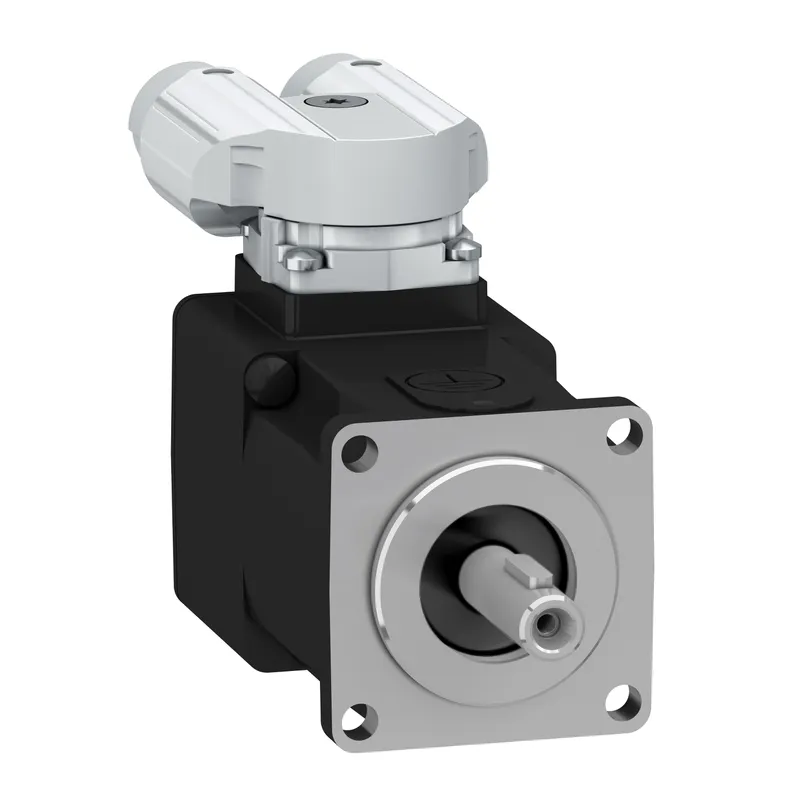

Schneider Electric BSH0401P17A2A – AC servo motor BSH - 0.21N.m - 9000 rpm - keyed shaft - without brake - IP50

Name: Schneider Electric BSH0401P17A2A – AC servo motor BSH - 0.21N.m - 9000 rpm - keyed shaft - without brake - IP50
Brand: Schneider Electric
SKU: BSH0401P17A2A

MPN: BSH0401P17A2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BSH0401P17A2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606485467139
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BSH0401P17A2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BSH0401P17A2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BSH0401P17A2A be shipped?

BSH0401P17A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0401P17A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0401P17A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0401P17A2A, subject to availability and destination.

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This AC servo motor features a maximum mechanical speed of 10000RPM, a keyed shaft end, and no holding brake. It is equipped with an absolute multi-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. It is a servo motor with a rated supply voltage of 400V and a continuous stall current of 1.12A. It is furnished with rotatable right-angle connectors for electrical connection and is an IP54-rated product; its shaft end is IP50-rated. Its flange is 40x40mm, and it is a 1-stack length, and it weighs 4.3kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives, type LXM32nU45M2 and LXM32nU60N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 40mm flange mount with a natural convection cooling system. Lexium 32 is a servo drive range that provides a drive and motor combination that has exactly the right power, performance, and functionality. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	10000 rpm
Continuous stall torque	0.21 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.21 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.21 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Peak stall torque	0.8 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.8 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.8 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal output power	166 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 166 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 77 W for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal torque	0.176 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.176 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.184 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal speed	9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	32768 points/turn x 4096 turns
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32
supply voltage max	400 V
Network number of phases	Three phase
Continuous stall current	1.12 A
maximum continuous power	220 W
Maximum current Irms	4.7 A for LXM32.U60N4 at 480 V; 4.7 A for LXM32.U60N4 at 400 V; 4.7 A for LXM32.U45M2 at 230 V
Maximum permanent current	1.12 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	8 mm
Shaft length	25 mm
Key width	12 mm
Feedback type	Multiturn SinCos Hiperface
Motor flange size	40 mm
Number of motor stacks	1
Torque constant	0.19 N.m/A at 120 °C
Back emf constant	13.6 V/krpm at 20 °C
Number of motor poles	5.0
Rotor inertia	0.0232 kg.cm²
Stator resistance	17.2 Ohm at 20 °C
Stator inductance	7.3 mH at 20 °C
Stator electrical time constant	0.85 ms at 20 °C
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	73.4 mm
Centring collar diameter	30 mm
Centring collar depth	2.5 mm
Number of mounting holes	4
Mounting holes diameter	4.5 mm
Circle diameter of the mounting holes	46 mm
Net weight	0.4 kg
Sizing reference	BSH0401P
Network number of phases	3
Accuracy error [angular]	0.08 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	4.5 A
Inertia	0.0 kg.cm² of brake; 0.023 kg.cm² of motor
