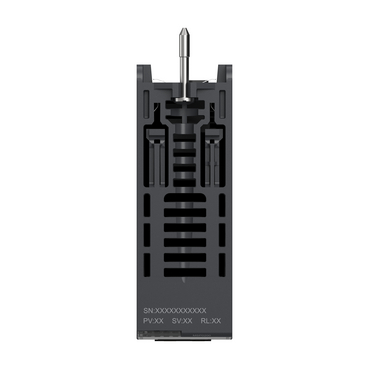

PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 147 kg |
Shipping & availability
When can BMXMSP0200 be shipped?
BMXMSP0200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXMSP0200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXMSP0200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXMSP0200, subject to availability and destination.
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | PTO module |
| Number of channels | 2 |
| Number of inputs | 4 |
| Discrete input type | Current sink yes origin input conforming to IEC 61131-2 type 3, Current sink yes proximity input and limit switch input conforming to IEC 61131-2 type 3, Current sink or source counter in position input conforming to IEC 61131-2 type 3, Current sink or source drive ready, emergency input conforming to IEC 61131-2 type 3 |
| Input compatibility | 2-wire/3-wire proximity sensor 19.2…30 V conforming to IEC 947-5-2 |
| Output compatibility | Signal converter (USIC), RS422, 7 mA input, Source input, 5 V to 24 V |
| Output frequency | 200 kHz <0.5 m with USIC and VW3M8210R05, 100 kHz <5 m with the normal source input circuit, 200 kHz <10 m with the RS422 compatible circuits |
| Operating threshold | > 12 V no error supply voltage, > 8 V error supply voltage |
| Input voltage | 24 V DC |
| Input current | 4.3 mA |
| Voltage state 1 guaranteed | >= 11 V |
| Current consumption | 35 mA at 24 V DC preactuator, 150 mA at 3.3 V DC typical, 200 mA at 3.3 V DC maximum |
| Current state 1 guaranteed | >= 2 mA |
| Voltage state 0 guaranteed | 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Response time | < 200 µs for position completed input and drive ready input, < 60 µs for origin input and proximity input |
| Number of outputs | 1 pulse output, 2 auxiliary output |
| Preactuator voltage detection threshold | < 8 V error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, > 14 V error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output |
| Output voltage | 24 V DC |
| Output voltage limits | 19...30 V |
| Discrete output current | 50 mA |
| Current per channel | 0.4 A |
| Maximum leakage current | 0.05 mA at state 0 |
| [Ures] residual voltage | 0.15 V at state 1 |
| Response time on output | 1.2...1.5 ms on appearance, 1.2...1.5 ms on disappearance |
| Load impedance ohmic | 15000 Ohm |
| Output overload protection | By current limiter and electronic circuit breaker |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | By reverse mounting diode on output, Integrated on input |
| Insulation between channels | No insulated |
| Insul btwn prim and second | 1500 Vrms |
| Insulation resistance | > 10 MOhm |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED (red) for external fault (I/O), 1 LED (red) for internal fault, module failure (ERR), 1 LED (green) for download (DL), 8 LEDs (green) for channel status (CH00), 8 LEDs (green) for channel status (CH01) |
| Electrical connection | 2 connectors with 28 pins |
| Module format | Standard |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Ambient air temperature for operation | -25…70 °C |
| Derating factor | Without |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.400 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 11.700 cm |
| Package 1 Weight | 147.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.527 kg |
| Warranty (in months) | 18 |
