Schneider Electric

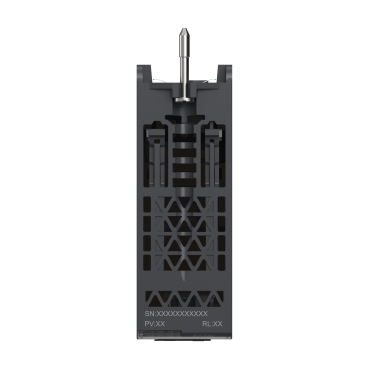

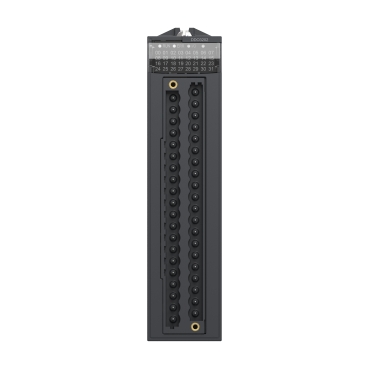

Schneider Electric BMXDDO3202

Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

MPN
BMXDDO3202
EAN
3606482177963
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXDDO3202?

"This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product has 32 isolated outputs and it is supplied with 12/24V DC (positive)." "This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "Its casing provides IP20 protection of the electronics." "This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Specifications

Specifications

Range of productModicon X80
Product or component typeDiscrete output module
Discrete output number32 conforming to IEC 61131-2
Discrete output typeSolid state
Discrete output logicPositive
Discrete output voltage12...24 V 10.8...30 V DC
Discrete output current0.5 A
Current per channel0.55 A
Maximum current per module17.6 A
Maximum leakage current0.1 mA at state 0
Maximum voltage drop<1.2 V at state 1
Insulation resistance> 10 MOhm 500 V DC
Power dissipation in W4.8 W
Response time on output0.3 ms
Paralleling of outputsYes : 3 maximum
Typical current consumption56 mA at 3.3 V DC
MTBF reliability833000 H
Protection typeExternal fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
Output overload protectionWith electronic circuit breaker 1.5 In < Id < 2 In, With current limiter
Output overvoltage protectionWith transil diode
Output short-circuit protectionWith external fuse
Reverse polarity protectionReverse mounted diode
Voltage detection threshold< 14 V DC preactuator fault, > 18 V DC preactuator at state 0
Maximum tungsten load6 W 24 V, 3 W 12 V
Switching frequency0.5/LI² Hz
Load impedance ohmic> 54.54 Ohm
Status LED1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O
Net weight142.01 g
IP degree of protectionIP20
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Dielectric strength1780 V AC at 50/60 Hz 1 minute, output/ground, 1 minute, output/internal logic
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation0…60 °C
Relative humidity5…95 % at 55 °C without condensation
Protective treatmentStandard version
Operating altitude0...2000 m, 2000...5000 m with derating factor

Packaging

Package 11 PCE, 26.500 cm × 18.000 cm × 6.000 cm (L × W × H), 305.000 g
Package 210 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.908 kg
