BMXDDI1603HDiscrete input module, Modicon X80, 16 inputs, 48V DC positive, for severe environments

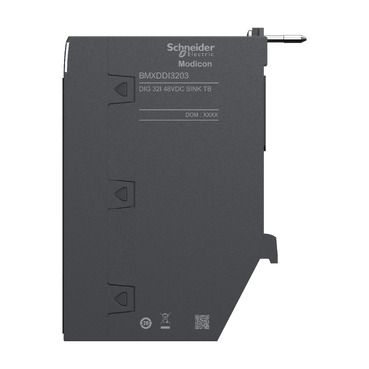

Schneider Electric BMXDDI3203
Discrete input module, Modicon X80, 32 inputs, 48V DC positive
- MPN
- BMXDDI3203
- EAN
- 3606481946713
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXDDI3203?
"This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 32 input channels and it is supplied with 48V DC (positive)." "This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 2440989 hours of MTBF." "This discrete module has a weight of 0.137kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input number | 32 |
| Discrete input type | Isolated |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 48 V DC, discrete input logic: positive |
| Discrete input current | 2.3 mA |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3 |
| Sensor power supply | 38...60 V |
| Voltage state 1 guaranteed | > 30 V |
| Current state 1 guaranteed | >= 2 mA |
| Voltage state 0 guaranteed | <= 10 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 20960 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 6 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Paralleling of outputs | Yes |
| Typical current consumption | 100 mA at 3.3 V DC |
| MTBF reliability | 2500000 H |
| Protection type | 1 external fuse per group of channel0.5 A fast blow, reverse polarity protection |
| Voltage detection threshold | < 24 V DC sensor fault, > 36 V DC sensor OK |
| Status LED | 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Net weight | 0.137 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 1500 V AC at 50/60 Hz 1 minute, between group of channels |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at -25…70 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 18.000 cm × 5.400 cm (L × W × H), 308.000 g |
| Package 2 | 10 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.670 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMXDDI3203: frequently asked questions
When can BMXDDI3203 be shipped?
BMXDDI3203 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXDDI3203 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXDDI3203 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDDI3203, subject to availability and destination.
