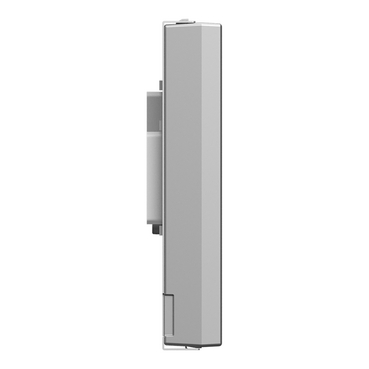

rack, Modicon X80, 12 slots, Ethernet backplane
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.38 kg |
Shipping & availability
When can BMEXBP1200 be shipped?
BMEXBP1200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMEXBP1200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMEXBP1200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMEXBP1200, subject to availability and destination.
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 8 bus X + Ethernet, 4 bus X |
| Product compatibility | I/O module, Specific application module, BMXCPS power supply, BMX processor, BME processor |
| Power consumption in W | 283 mW 3.3 V DC, 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M6 screws, mounting on plate, By 4 screws - diameter: 4.32…6.35 mm, mounting on panel |
| Current consumption | 164 mA at 24 V DC, 86 mA at 3.3 V DC |
| MTBF reliability | 1166108 H |
| Net weight | 1.377 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 15.400 cm |
| Package 1 Length | 58.500 cm |
| Package 1 Weight | 1.367 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 11.768 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 54.000 kg |
| Warranty (in months) | 18 |
