Schneider Electric BCH2LH2033CA6C

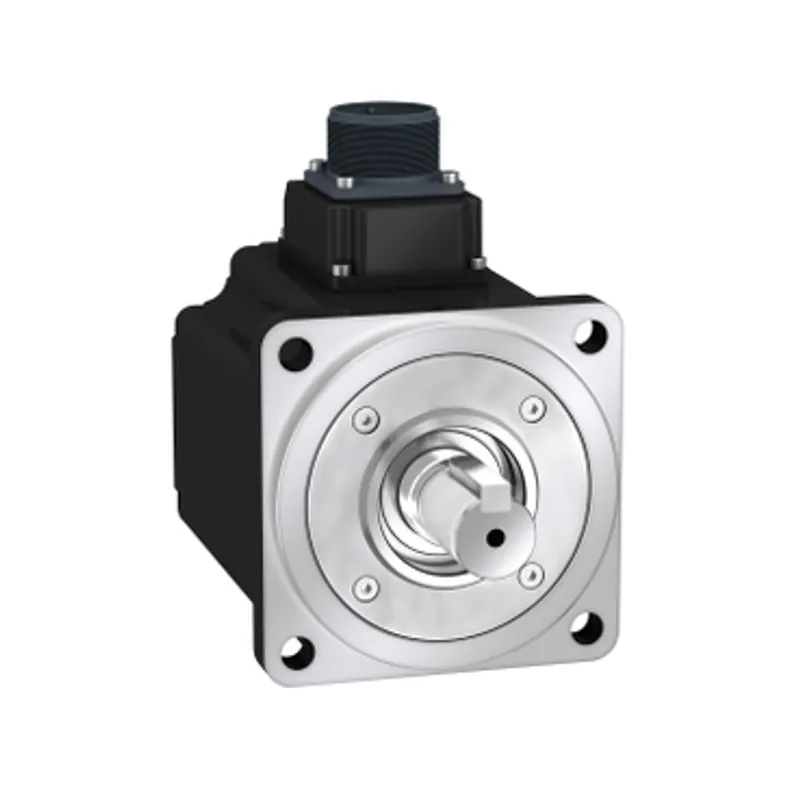

Servo motor BCH; Lexium 28; 100mm; 2000W; 4.28kg.cm²; with oil seal; with key; straight connection

MPN
BCH2LH2033CA6C
EAN
3606480734106
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LH2033CA6C?

This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 9.87A and a continuous power of 2000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 198.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 6.7kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 2kW 220V three phase. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V
Network number of phases3
Continuous stall current9.87 A
Continuous stall torque6.37 N.m for LXM26D at 12 A, 220 V, three phase, 6.37 N.m for LXM28 at 12 A, 220 V, three phase
Continuous power2000 W
Peak stall torque19.11 N.m for LXM26D at 12 A, 220 V, three phase, 19.11 N.m for LXM28... at 12 A, 220 V, three phase
Nominal output power2000 W for LXM26D at 12 A, 220 V, three phase, 2000 W for LXM28... at 12 A, 220 V, three phase
Nominal torque6.37 N.m for LXM26D at 12 A, 220 V, three phase, 6.37 N.m for LXM28... at 12 A, 220 V, three phase
Nominal speed3000 rpm for LXM26D at 12 A, 220 V, three phase, 3000 rpm for LXM28... at 12 A, 220 V, three phase
Maximum current Irms32.3 A for LXM26D at 2 kW, 220 V, 32.3 A for LXM28... at 2 kW, 220 V
Maximum permanent current10.27 A
Product compatibilityLXM26D servo drive motor at 2 kW, 220 V, three phase, LXM28... servo drive motor at 2 kW, 220 V, three phase
Shaft endKeyed
Shaft diameter22 mm
Shaft length45 mm
Key width8 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size100 mm
Electrical connectionConnector MIL
Torque constant0.65 N.m/A at 20 °C
Back emf constant39 V/krpm at 20 °C
Number of motor poles5.0
Rotor inertia4.28 kg.cm²
Stator resistance0.36 Ohm at 20 °C
Stator inductance2.59 mH at 20 °C
Stator electrical time constant7.19 ms at 20 °C
Maximum radial force Fr570 N at 3000 rpm
Maximum axial force Fa200 N
Brake pull-in power10.4 W
Type of coolingNatural convection
Length198.5 mm
Number of motor stacks2
Centring collar diameter95 mm
Centring collar depth7 mm
Number of mounting holes4
Mounting holes diameter9.2 mm
Circle diameter of the mounting holes115 mm
Distance shaft shoulder-flange7 mm
Net weight6.7 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 4.27 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation-20…40 °C

Packaging

Package 11 PCE, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.049 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2LH2033CA6C: frequently asked questions

When can BCH2LH2033CA6C be shipped?

BCH2LH2033CA6C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2LH2033CA6C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2LH2033CA6C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2LH2033CA6C, subject to availability and destination.
