Schneider Electric BCH2LH2032CA6C

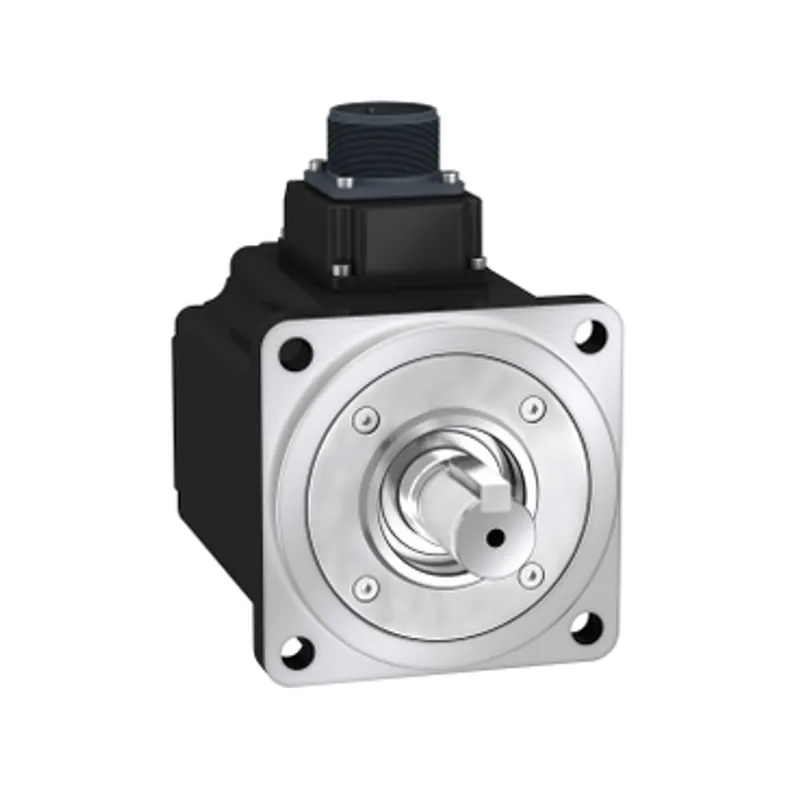

Servo motor BCH, Lexium 28, 100mm, 2000W, 4.28kg.cm², with oil seal, smooth, straight connection

MPN
BCH2LH2032CA6C
EAN
3606480734083
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BCH2LH2032CA6C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LH2032CA6C?

Schneider Electric servo motor BCH, Lexium 28, 100mm, 2000W, 4.28kg.cm², with oil seal, smooth, straight connection, manufacturer part number BCH2LH2032CA6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V
Network number of phases3
Continuous stall current9.87 A
Continuous stall torque6.37 N.m for LXM28 at 12 A, 220 V, three phase
Continuous power2000 W
Peak stall torque19.11 N.m for LXM28... at 12 A, 220 V, three phase
Nominal output power2000 W for LXM28... at 12 A, 220 V, three phase
Nominal torque6.37 N.m for LXM28... at 12 A, 220 V, three phase
Nominal speed3000 rpm for LXM28... at 12 A, 220 V, three phase
Maximum current Irms32.3 A for LXM28... at 2 kW, 220 V
Maximum permanent current10.27 A
Product compatibilityLXM28... servo drive motor at 2 kW, 220 V, three phase
Shaft endSmooth shaft
Shaft diameter22 mm
Shaft length45 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size100 mm
Electrical connectionConnector MIL
Torque constant0.65 N.m/A at 20 °C
Back emf constant39 V/krpm at 20 °C
Number of motor poles5.0
Rotor inertia4.28 kg.cm²
Stator resistance0.36 Ohm at 20 °C
Stator inductance2.59 mH at 20 °C
Stator electrical time constant7.19 ms at 20 °C
Maximum radial force Fr570 N at 3000 rpm
Maximum axial force Fa200 N
Brake pull-in power10.4 W
Type of coolingNatural convection
Length198.5 mm
Number of motor stacks2
Centring collar diameter95 mm
Centring collar depth7 mm
Number of mounting holes4
Mounting holes diameter9.2 mm
Circle diameter of the mounting holes115 mm
Distance shaft shoulder-flange7 mm
Net weight6.7 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 4.27 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation-20…40 °C

Packaging

Package 11 PCE, 36.0 cm × 23.0 cm × 18.1 cm (L × W × H), 8.47 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2LH2032CA6C: frequently asked questions

Can I still buy the BCH2LH2032CA6C now that it is discontinued?

Yes. Schneider Electric has discontinued the BCH2LH2032CA6C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BCH2LH2032CA6C be shipped?

BCH2LH2032CA6C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2LH2032CA6C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2LH2032CA6C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2LH2032CA6C, subject to availability and destination.
