Schneider Electric BCH2LF0431CA5C

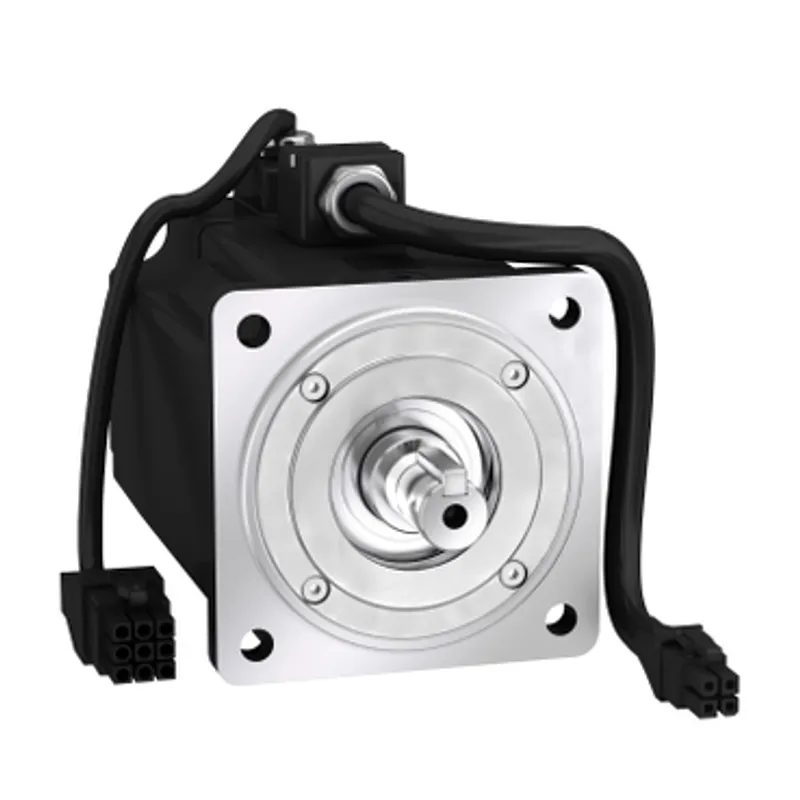

Servo motor BCH; Lexium 28; 80mm; 400W; 0.67kg.cm²; without oil seal; with key; leads connection

MPN
BCH2LF0431CA5C
EAN
3606480733666
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BCH2LF0431CA5C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LF0431CA5C?

This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 2.29A and a continuous power of 400W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with free lead for electrical connection. It is an IP50 and IP54 rated product. The length of this product is 112mm and the centering collar dimensions are 4mm (depth) x 70mm (diameter) with 90mm mounting hole. It weighs 2kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM28 servo drive motor at 0.4kW 220V single phase and LXM28 servo drive motor. It supports 80mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current2.29 A
Continuous stall torque1.27 N.m for LXM28 at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 5.7 A, 110 V, single phase
Continuous power400 W
Peak stall torque3.81 N.m for LXM28... at 2.6 A, 220 V, single phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal output power400 W for LXM28... at 2.6 A, 220 V, single phase, 400 W for LXM28... at 2.6 A, 220 V, three phase, 400 W for LXM28... at 5.7 A, 110 V, single phase
Nominal torque1.27 N.m for LXM28... at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal speed3000 rpm for LXM28... at 2.6 A, 220 V, single phase, 3000 rpm for LXM28... at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 5.7 A, 110 V, single phase
Maximum current Irms7.73 A for LXM28... at 0.4 kW, 220 V, 7.73 A for LXM28... at 0.4 kW, 110 V
Maximum permanent current2.52 A
Product compatibilityLXM28... servo drive motor at 0.4 kW, 220 V, single phase, LXM28... servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 110 V, single phase
Shaft endKeyed
Shaft diameter14 mm
Shaft length30 mm
Key width5 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size80 mm
Electrical connectionFree lead
Torque constant0.55 N.m/A at 20 °C
Back emf constant33.5 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia0.67 kg.cm²
Stator resistance3.2 Ohm at 20 °C
Stator inductance11.3 mH at 20 °C
Stator electrical time constant3.53 ms at 20 °C
Maximum radial force Fr332 N at 3000 rpm
Maximum axial force Fa115 N
Brake pull-in power10.2 W
Type of coolingNatural convection
Length112 mm
Number of motor stacks1
Centring collar diameter70 mm
Centring collar depth4 mm
Number of mounting holes4
Mounting holes diameter6.6 mm
Circle diameter of the mounting holes90 mm
Distance shaft shoulder-flange4 mm
Net weight2 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 0.66 kg.cm² of motor
IP degree of protectionIP54 IM B5, IM V1, IP50 IM V3
Ambient air temperature for operation-20…40 °C
