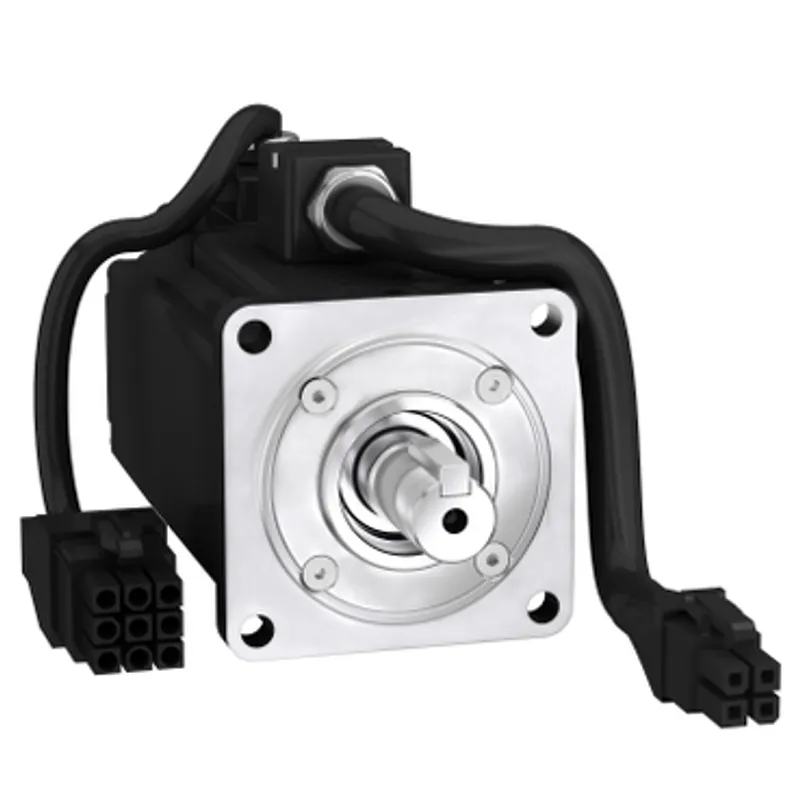

Servo motor BCH; Lexium 28; 60mm; 400W; 0.28kg.cm²; with oil seal; with key; brake; leads connection

MPN
BCH2LD0433CF5C
EAN
3606480733635
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LD0433CF5C?

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 2.19A and a continuous power of 400W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 165mm (Length) x 60mm (Width), centring collar dimensions are 5.5mm (Depth) x 50mm (Diameter) with 70mm circle diameter of the mounting hole. It weighs 2kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 60mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current2.19 A
Continuous stall torque1.27 N.m for LXM26D at 2.6 A, 220 V, single phase, 1.27 N.m for LXM26D at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 5.7 A, 110 V, single phase
Continuous power400 W
Peak stall torque3.81 N.m for LXM26D at 2.6 A, 220 V, single phase, 3.81 N.m for LXM26D at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, single phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal output power400 W for LXM26D at 2.6 A, 220 V, single phase, 400 W for LXM26D at 2.6 A, 220 V, three phase, 400 W for LXM28... at 2.6 A, 220 V, single phase, 400 W for LXM28... at 2.6 A, 220 V, three phase, 400 W for LXM28... at 5.7 A, 110 V, single phase
Nominal torque1.27 N.m for LXM26D at 2.6 A, 220 V, single phase, 1.27 N.m for LXM26D at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal speed3000 rpm for LXM26D at 2.6 A, 220 V, single phase, 3000 rpm for LXM26D at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 2.6 A, 220 V, single phase, 3000 rpm for LXM28... at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 5.7 A, 110 V, single phase
Maximum current Irms7.76 A for LXM28... at 0.4 kW, 220 V, 7.76 A for LXM28... at 0.4 kW, 110 V
Maximum permanent current2.5 A
Product compatibilityLXM26D servo drive motor at 0.4 kW, 220 V, single phase, LXM26D servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 220 V, single phase, LXM28... servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 110 V, single phase
Shaft endKeyed
Shaft diameter14 mm
Shaft length30 mm
Key width5 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWith
Holding torque1.3 N.m built-in
Mounting supportAsian standard flange
Motor flange size60 mm
Electrical connectionFree lead
Torque constant0.58 N.m/A at 20 °C
Back emf constant35 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia0.28 kg.cm²
Stator resistance5.2 Ohm at 20 °C
Stator inductance12.0 mH at 20 °C
Stator electrical time constant2.31 ms at 20 °C
Maximum radial force Fr200 N at 3000 rpm
Maximum axial force Fa70 N
Brake pull-in power11.2 W
Type of coolingNatural convection
Length165 mm
Number of motor stacks2
Centring collar diameter50 mm
Centring collar depth5.5 mm
Number of mounting holes4
Mounting holes diameter5.5 mm
Circle diameter of the mounting holes70 mm
Distance shaft shoulder-flange5.5 mm
Net weight2 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.27 kg.cm² of brake, 0.28 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation0…40 °C
