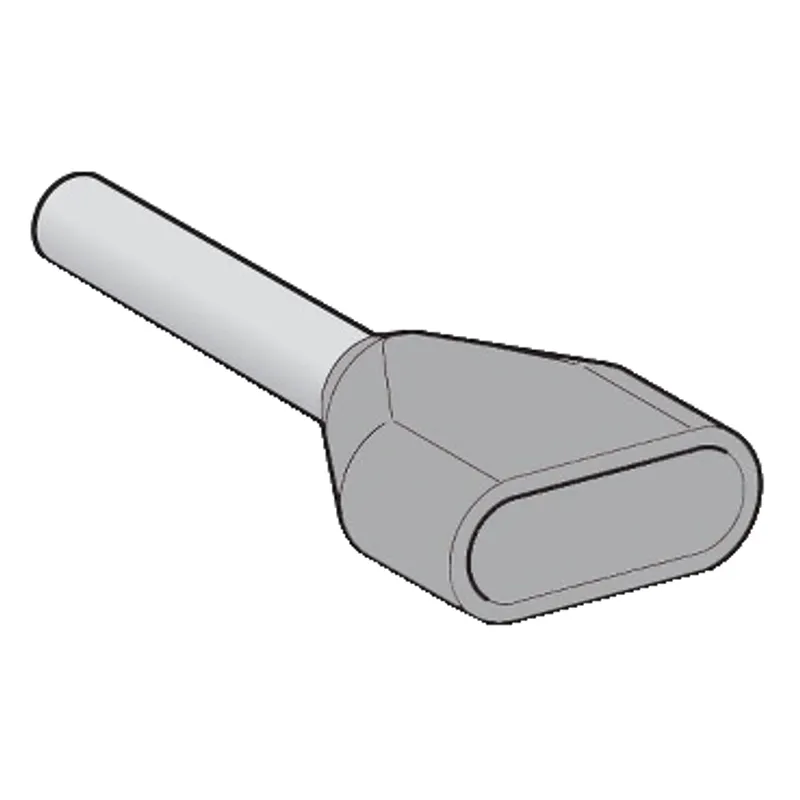

Cable end, Linergy TR cable ends, twin conductor, grey, 2.5mm², for insulated cable, medium size, 5 sets of 50
Linergy cable end twin insulated without marker tag holder. It applied to twin conductor with 2.5 mm² cable cross section. It has grey surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 50. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified It is compliant with Green Premium (RoHS/REACH).
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Dispenser pack |
| Quantity per set | 5 sets of 50 |
| Cable cross section | 2.5 mm² |
| Cable end type | Twin conductor |
| Additional information | Without marker tag holder |
| Colour | Grey |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 2 |
| AWG gauge | AWG 14 |
| Bezel size | Ø 4.2 x 7.8 mm |
| Tube diameter | 3.2 mm |
| Length | 18.5 mm |
| Tube length | 10 mm |
| Net weight | 0.145 kg |
| Product certifications | cCSAus |
| Ambient air temperature for operation | -20…105 °C |
| Package 1 | 1 PCE, 2.000 cm × 0.400 cm × 0.400 cm (L × W × H), 0.500 g |
| Package 2 | 250 BB1, 12.600 cm × 7.000 cm × 13.000 cm (L × W × H), 126.000 g |
| Package 3 | 10000 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.392 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
AZ5DE025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for AZ5DE025 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AZ5DE025, subject to availability and destination.
