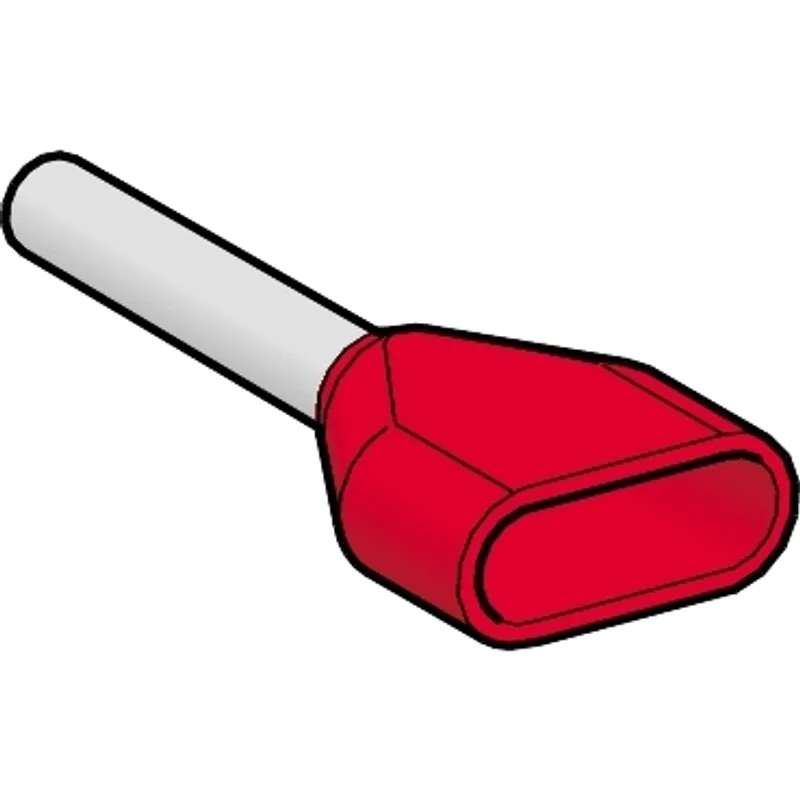

Cable end, Linergy TR cable ends, twin conductor, red, 1mm², medium size, 5 sets of 50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linergy TR Cable ends |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.14 kg |
Shipping & availability
When can AZ5DE010 be shipped?
AZ5DE010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AZ5DE010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AZ5DE010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AZ5DE010, subject to availability and destination.
Linergy cable end twin insulated without marker tag holder. It applied to twin conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Dispenser pack |
| Quantity per set | 5 sets of 100 |
| Cable cross section | 1 mm² |
| Cable end type | Twin conductor |
| Additional information | Without marker tag holder |
| Colour | Red |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 2 |
| AWG gauge | AWG 18 |
| Bezel size | Ø 3.4 x 5.4 mm |
| Tube diameter | 2.25 mm |
| Length | 15 mm |
| Tube length | 8 mm |
| Net weight | 0.14 kg |
| Product certifications | cCSAus |
| Ambient air temperature for operation | -20…105 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.400 cm |
| Package 1 Width | 0.400 cm |
| Package 1 Length | 1.400 cm |
| Package 1 Weight | 0.200 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 500 |
| Package 2 Height | 13.100 cm |
| Package 2 Width | 7.000 cm |
| Package 2 Length | 12.500 cm |
| Package 2 Weight | 136.000 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 20000 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 6.399 kg |
| Warranty | 18 months |
