AR3100B2X609APC NetShelter SX, Server Rack Enclosure, Gen 2, 42U, 1991H x 600W x 1070D mm, without Sides, Black
Schneider Electric AR3103

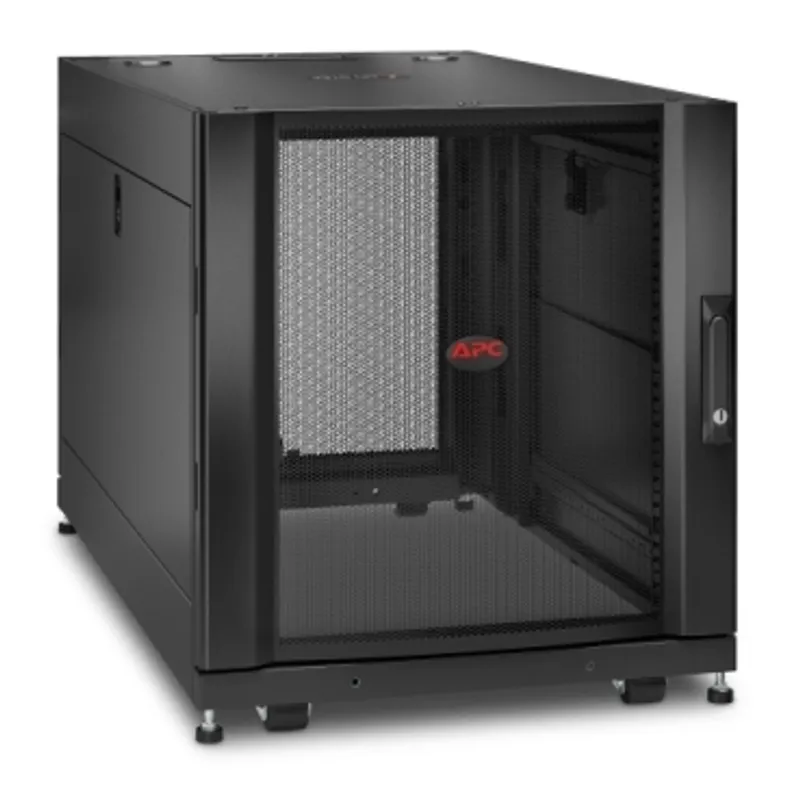

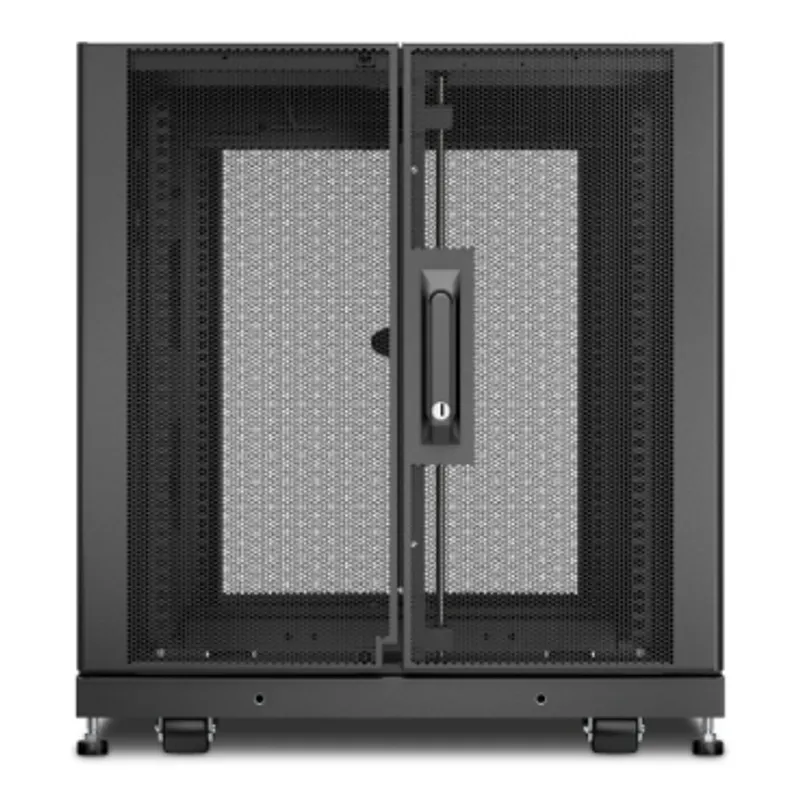

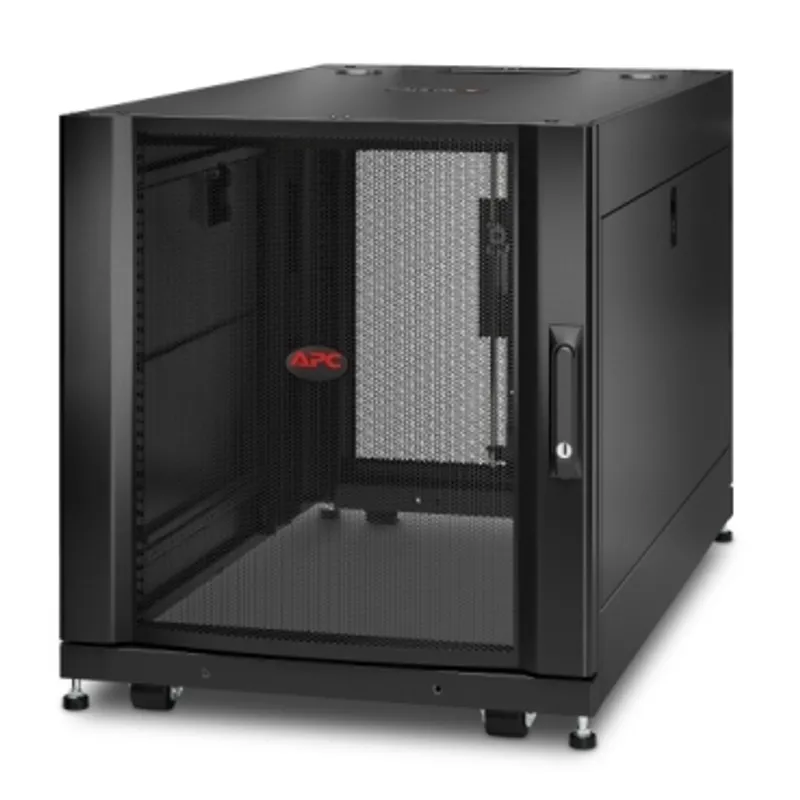

APC NetShelter SX, Server Rack Enclosure, 12U, Black, 658H x 600W x 1070D mm
- MPN
- AR3103
- EAN
- 0731304347675
- Category
- APC NetShelter SX Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AR3103?
APC NetShelter SX server rack enclosure with the most standard features for speed of deployment and installation. Rack design offers 12RU height with 921 mm max equipment mounting depth, 272 kg (600 lb) static load, and 272 kg (600 lb) dynamic load and two 0U accessory channels. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices.
Specifications
Specifications
| Presentation | An industry-standard rack with the most standard features for speed of deployment and installation. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices. |
| Product or component type | Rack enclosure |
| Number of rack unit | 12U |
| Provided equipment | Casters, Door, Key(s), Leveling feet, Roof, Side panels |
| Height | 658 mm |
| Width | 600 mm |
| Depth | 1070 mm |
| Net weight | 58.97 kg |
| Colour | Black |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 920.8 mm |
| Minimum mounting depth | 191 mm |
| Rack width | 19" |
| Marking | 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Permanent permissible load | 272.2 kg dynamic, 272.2 kg static |
| Standards | UL 2416, UL 60950-1, EIA-310E |
Packaging
| Package 1 | 1 PCE, 75 cm × 116 cm × 79.5 cm (L × W × H), 81 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AR3103: frequently asked questions
When can AR3103 be shipped?
AR3103 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AR3103 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AR3103 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AR3103, subject to availability and destination.
