Schneider Electric AR3101

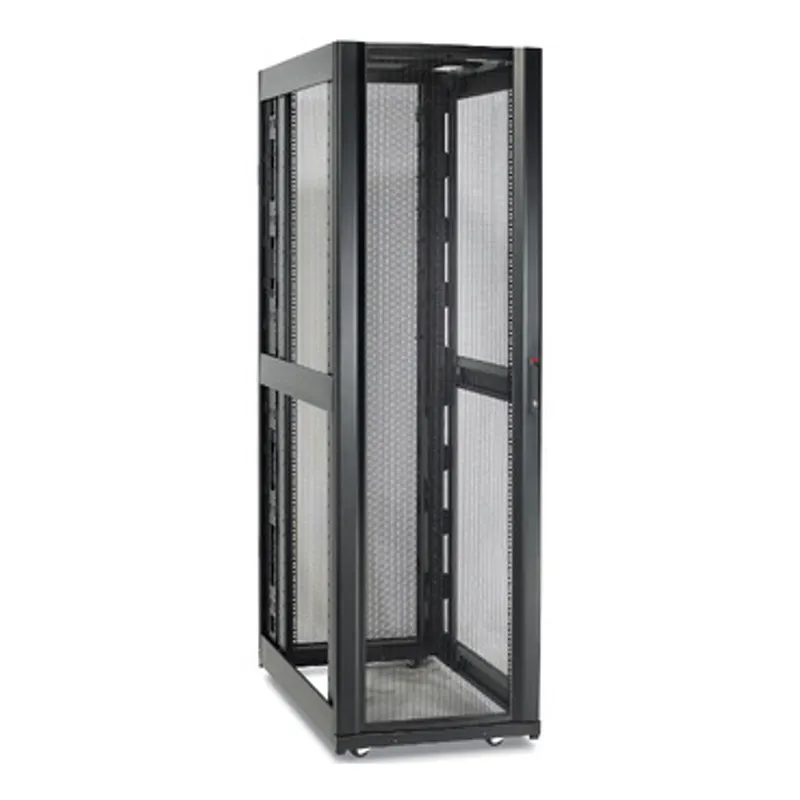

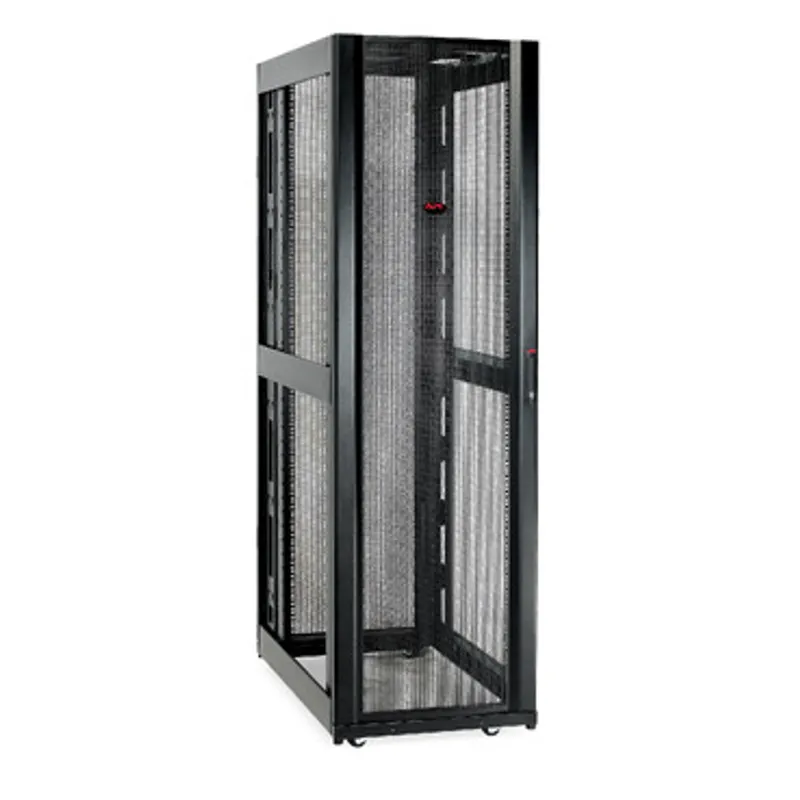

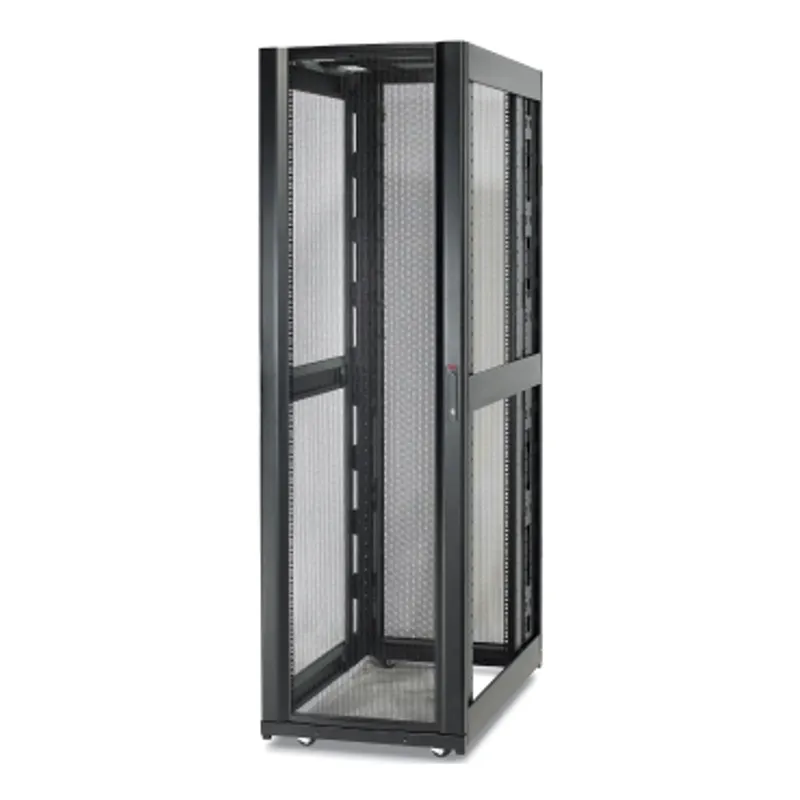

APC NetShelter SX, Server Rack Enclosure, 42U, without Sides, Black, 1991H x 600W x 1070D mm
- MPN
- AR3101
- Category
- APC NetShelter SX Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AR3101?
Schneider Electric APC NetShelter SX, Server Rack Enclosure, 42U, without Sides, Black, 1991H x 600W x 1070D mm, manufacturer part number AR3101. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product or component type | Rack enclosure |
| Number of rack unit | 42U |
| Number of cables | 1 |
| Provided equipment | Baying hardware, Key(s), Leveling feet, Mounting hardware, Pre-installed casters |
| Height | 1991 mm |
| Width | 600 mm |
| Depth | 1070 mm |
| Net weight | 102.36 kg |
| Colour | Black |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 914.9 mm |
| Minimum mounting depth | 191 mm |
| Rack width | 19" |
| Marking | 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels |
| Permanent permissible load | 1020.6 kg dynamic, 1701.0 kg static |
| Standards | UL 2416, UL 60950-1, EIA-310E |
Packaging
| Package 1 | 1 PCE, 89.9 cm × 121.9 cm × 211.8 cm (L × W × H), 121.82 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AR3101: frequently asked questions
When can AR3101 be shipped?
AR3101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AR3101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AR3101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AR3101, subject to availability and destination.
