Schneider Electric A9E15122

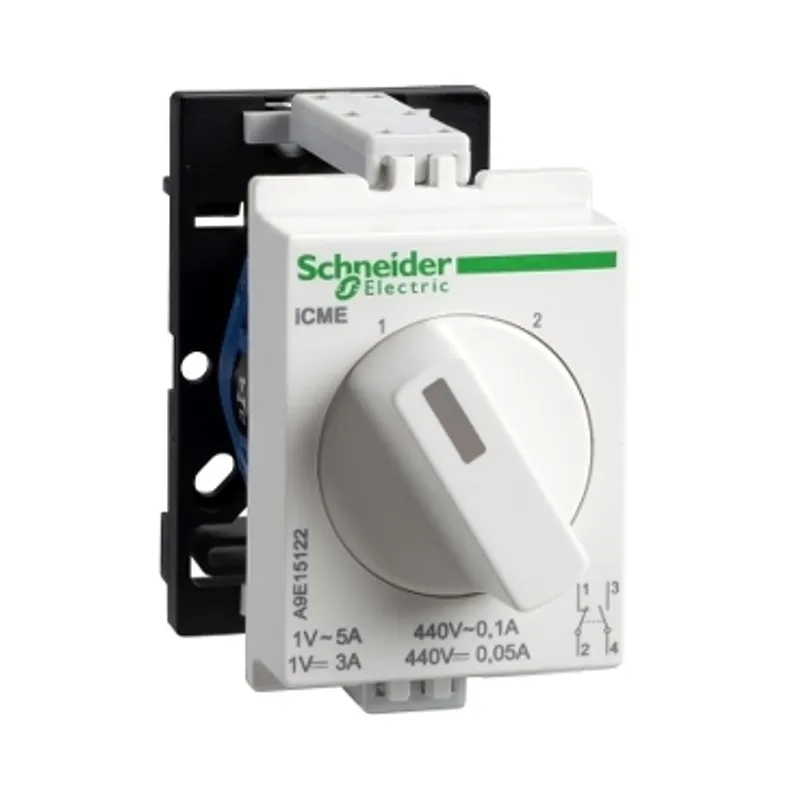

2 ways low level switch iCME 10 A 0,1..5 CA 0,05..3 CCA 2P U 1..440 VAC/VCCV CA
- MPN
- A9E15122
- EAN
- 3606480377006
- Category
- Acti9 iCM B, D, E, C, V, A
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric A9E15122?
This Acti9 iCM is a selector switch used for the manual control of electric circuits. It is 2 positions switch with contacts type 1 NO+1NC. The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational volage and Ie rated operational can use multi setting. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 1000000. The endurance is 200000 operations with AC21A current category under cos phi=0.8. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 60mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +55°C. The storage temperature is from -25°C to +80°C. It complies with VDE 0660 part 107, IEC/EN 60947-3 and UL standards.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 iCM |
| Product or component type | Selector switch |
| Device short name | iCME |
| Device application | Electrical circuit control |
| Contacts type and composition | 1 NO + 1 NC |
| Standards | EN 60947-3, IEC 60947-3, VDE 0660 part 107, UL |
| Maximum operating voltage | 440 V |
| Control type | Rotary handle 2 positions |
| Marking | 1 - 2 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 60 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Net weight | 44 g |
| Colour | White |
| Mechanical durability | 1000000 cycles |
| Electrical durability | AC-21A: 200000 cycles |
| Connections - terminals | Jumper terminals1.5 mm² |
| Wire stripping length | 9 mm for downside connection |
| Tightening torque | 1 N.m downside |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
Packaging
| Package 1 | 1 PCE, 8.400 cm × 7.600 cm × 4.300 cm (L × W × H), 68.000 g |
| Package 2 | 80 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.958 kg |
