Schneider Electric A9E15121
4 ways switch iCMD 10 A 10A 2P U 415V CA
- MPN
- A9E15121
- EAN
- 3606480376993
- Category
- Acti9 iCM B, D, E, C, V, A
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original A9E15121 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

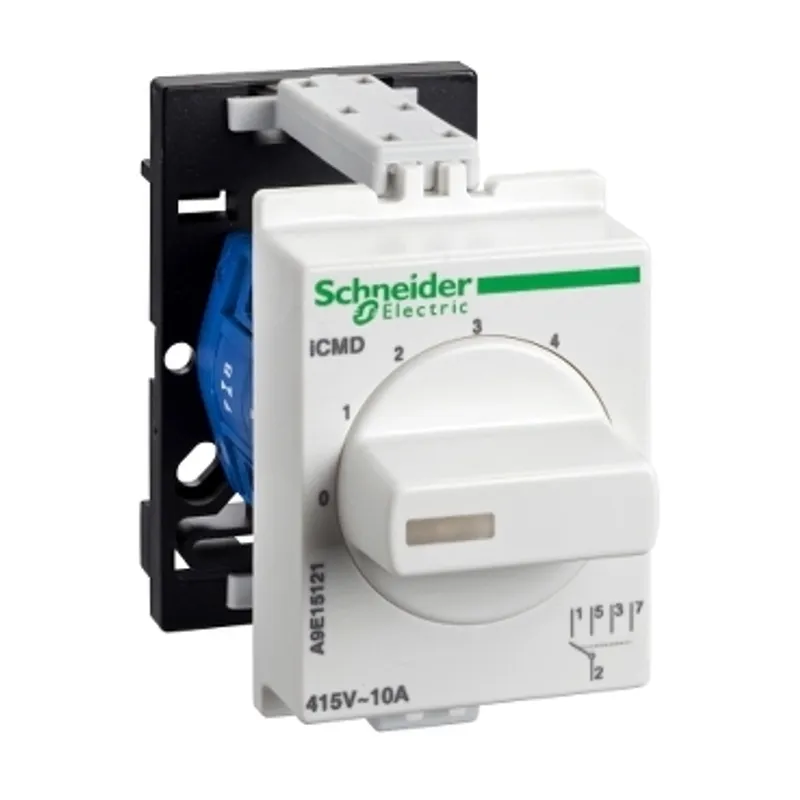

What is the Schneider Electric A9E15121?
This Acti9 iCM is a selector switch used for the manual control of electric circuits. It is 4 positions switch with 1 changeover contact (1 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 415VAC. The Ie rated operational current is 10A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 1000000. The endurance is 200000 operations with AC21A current category under cos phi=0.8. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 60mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +55°C. The storage temperature is from -25°C to +80°C. It complies with VDE 0660 part 107, IEC/EN 60947-3 and UL standards.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 iCM |
| Product or component type | Selector switch |
| Device short name | iCMD |
| Device application | Electrical circuit control |
| Contacts type and composition | 1 C/O |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| Standards | EN 60947-3, IEC 60947-3, VDE 0660 part 107, UL |
| [Ie] rated operational current | 10 A |
| Maximum operating voltage | 440 V |
| Control type | Rotary handle 5 positions |
| Marking | 0 - 1 - 2 - 3 - 4 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 60 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Net weight | 58 g |
| Colour | White |
| Mechanical durability | 1000000 cycles |
| Electrical durability | AC-21A: 200000 cycles |
| Connections - terminals | Jumper terminals1.5 mm² |
| Wire stripping length | 9 mm for downside connection |
| Tightening torque | 1 N.m downside |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
Packaging
| Package 1 | 1 PCE, 8.400 cm × 7.600 cm × 4.300 cm (L × W × H), 76.000 g |
| Package 2 | 80 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.487 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
A9E15121: frequently asked questions
Can I still buy the A9E15121 now that it is discontinued?
Yes. Schneider Electric has discontinued the A9E15121, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can A9E15121 be shipped?
A9E15121 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up A9E15121 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for A9E15121 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for A9E15121, subject to availability and destination.
