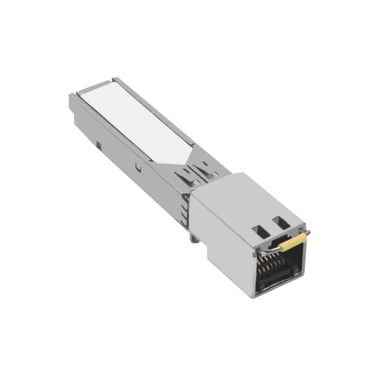

Schneider Electric 490NAC0100
Connector, Modicon M580, RJ45, for redundant processor
- MPN
- 490NAC0100
- EAN
- 3606480880667
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric 490NAC0100?
This RJ45 connector is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This 490NAC0100 SFP socket is used to do the transmission between the primary CPU and the redundant CPU. This product can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is furnished with RJ45 connector for electrical connection. This hot standby (HSBY) link SFP socket supports 1Gbps transmission rate. The socket is made of metal. It is suitable for redundant processors applications. This product is compatible with M580 HSBY CPU. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
Specifications
Specifications
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Hot standby copper adapter |
| Product specific application | For redundant processors |
| Product compatibility | M580 HSBY CPU |
| Range compatibility | Modicon M580 |
| Material | Metal |
| Electrical connection | 1 connector RJ45 |
| Transmission rate | 1 Gbit/s |
Packaging
| Package 1 | 1 PCE, 12.200 cm × 8.000 cm × 2.300 cm (L × W × H), 58.000 g |
| Package 2 | 50 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.900 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
490NAC0100: frequently asked questions
When can 490NAC0100 be shipped?
490NAC0100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 490NAC0100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 490NAC0100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 490NAC0100, subject to availability and destination.
