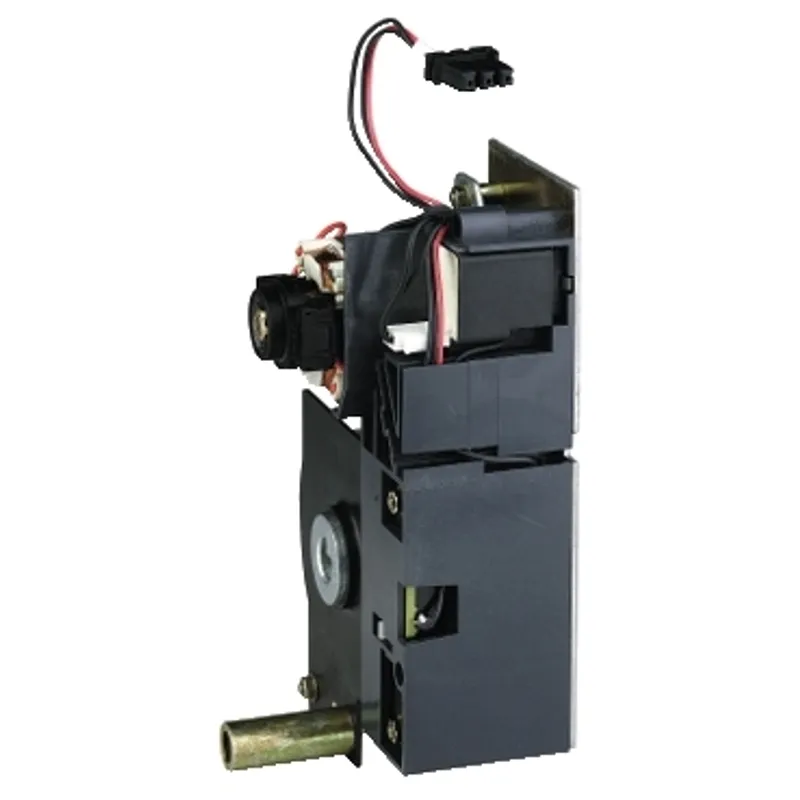

Gear motor MCH, drawout MasterPact NW, 440/480VAC 50/60Hz, spare part
MPN: 47897 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | MasterPact NW |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.94 kg |
Shipping & availability
When can 47897 be shipped?
47897 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 47897 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 47897 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 47897, subject to availability and destination.
Specifications
Specifications
| Range of product | MasterPact NW |
| Range | MasterPacT |
| Device short name | gear motor MCH |
| Product or component type | Motor mechanism |
| Device application | Automatic spring charging |
| Range compatibility | Masterpact MasterPact NW circuit breaker |
| [Uc] control circuit voltage | 440/480 V AC 50/60 Hz |
| Control type | Motor mechanism |
| Maximum charging time | 4 s |
| Maximum operating frequency | <= 3 cycles per minute |
| Threshold tripping voltage | 0.85...1.1 Un |
| Maximum power consumption in VA | 180 VA |
| Accessory / separate part category | Spare parts for MasterPact NW |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.000 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 1.942 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.052 kg |
| Warranty (in months) | 18 |
