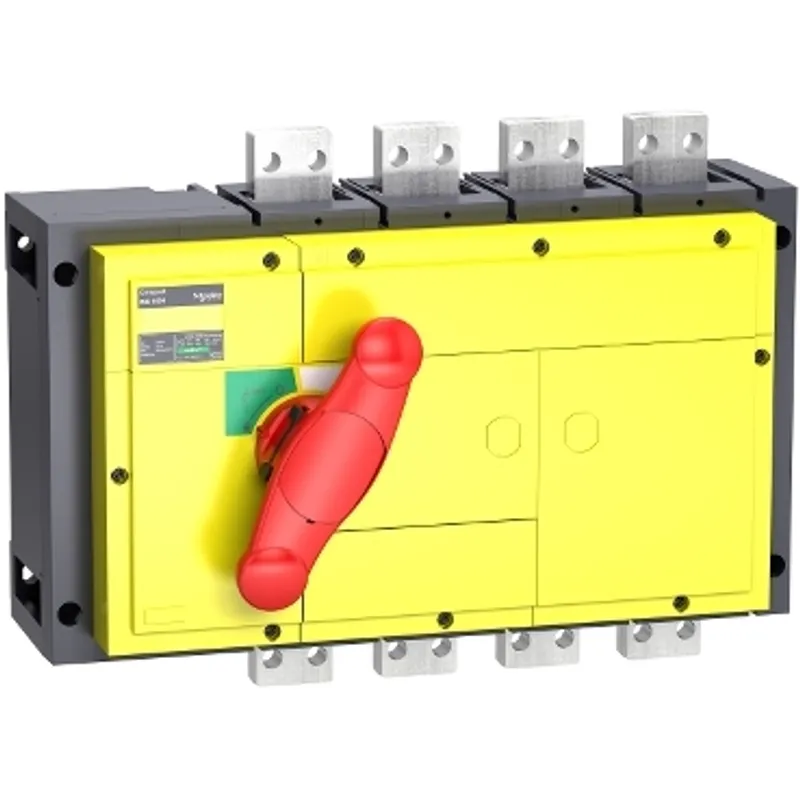

switch disconnector, Compact INS1600, 1600A, with red rotary handle, yellow front, 4 poles

Name: switch disconnector, Compact INS1600, 1600A, with red rotary handle, yellow front, 4 poles
Brand: Schneider Electric
SKU: 31351

MPN: 31351 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ComPact INS/INV
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	18 kg

Shipping & availability

When can 31351 be shipped?

31351 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 31351 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 31351 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 31351, subject to availability and destination.

This Compact INS1600 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1600A at 415VAC in categories AC21B and AC22B, 1250A at 415VAC in category and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1600 is a class II insulation level front-face device as per IEC 60664 standard.

Specifications

Range	ComPact
Product name	ComPacT INS
Product or component type	Switch disconnector
Poles description	4P
Network type	AC, DC
Network frequency	50/60 Hz
[Ie] rated operational current	AC-21A: 1250 A AC 50/60 Hz 440/480 V, AC-21A: 1250 A AC 50/60 Hz 480 V NEMA, AC-21A: 1250 A AC 50/60 Hz 500/525 V, AC-21A: 1250 A AC 50/60 Hz 660/690 V, AC-22A: 1250 A AC 50/60 Hz 440/480 V, AC-22A: 1250 A AC 50/60 Hz 480 V NEMA, AC-22A: 1250 A AC 50/60 Hz 500/525 V, AC-22A: 1250 A AC 50/60 Hz 660/690 V, AC-23A: 1250 A AC 50/60 Hz 220/240 V, AC-23A: 1250 A AC 50/60 Hz 380/415 V, AC-23A: 1250 A AC 50/60 Hz 440/480 V, AC-23A: 1250 A AC 50/60 Hz 480 V NEMA, AC-23A: 1250 A AC 50/60 Hz 500/525 V, AC-23A: 1250 A AC 50/60 Hz 660/690 V, AC-21A: 1450 A AC 50/60 Hz 220/240 V, AC-21A: 1450 A AC 50/60 Hz 380/415 V, AC-21B: 1600 A AC 50/60 Hz 220/240 V, AC-21B: 1600 A AC 50/60 Hz 380/415 V, AC-21B: 1600 A AC 50/60 Hz 440/480 V, AC-21B: 1600 A AC 50/60 Hz 480 V NEMA, AC-21B: 1600 A AC 50/60 Hz 500/525 V, AC-21B: 1600 A AC 50/60 Hz 660/690 V, AC-22A: 1450 A AC 50/60 Hz 220/240 V, AC-22A: 1450 A AC 50/60 Hz 380/415 V, AC-22B: 1600 A AC 50/60 Hz 220/240 V, AC-22B: 1600 A AC 50/60 Hz 380/415 V, AC-22B: 1600 A AC 50/60 Hz 440/480 V, AC-22B: 1600 A AC 50/60 Hz 480 V NEMA, AC-22B: 1600 A AC 50/60 Hz 500/525 V, AC-22B: 1600 A AC 50/60 Hz 660/690 V, DC-21A: 1600 A DC 125 V 2 poles in series, DC-22A: 1600 A DC 125 V 2 poles in series, DC-23A: 1600 A DC 125 V 2 poles in series, DC-21A: 1600 A DC 250 V 4 poles in series, DC-22A: 1600 A DC 250 V 4 poles in series, DC-23A: 1600 A DC 250 V 4 poles in series
[Ui] rated insulation voltage	1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	12 kV
[Ith] conventional free air thermal current	1600 A at 60 °C
[Icm] rated short-circuit making capacity	75 kA switch-disconnector alone 690 V AC at 50/60 Hz, 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz, 250 V DC
Suitability for isolation	Yes
Contact position indicator	Yes
Visible break	No
Pollution degree	3
Control type	Rotary handle
Handle colour	Red
Mounting mode	Fixed
Mounting support	Rail, Plate
Upside connection	Front
Downside connection	Front
Maximum power	AC-23: 400 kW at 220/240 V AC 50/60 Hz, AC-23: 710 kW at 380/400 V AC 50/60 Hz, AC-23: 800 kW at 415 V AC 50/60 Hz, AC-23: 900 kW at 500/525 V AC 50/60 Hz
Rated duty	Uninterrupted
Intermittent duty class	Class 120 - 60 %
[Icw] rated short-time withstand current	10 kA during 20 s conforming to IEC 60947-3, 20 kA during 3 s conforming to IEC 60947-3, 35 kA during 1 s conforming to IEC 60947-3, 42 kA during 0.8 s conforming to IEC 60947-3, 50 kA during 0.5 s conforming to IEC 60947-3, 8 kA during 30 s conforming to IEC 60947-3
Mechanical durability	3000 cycles
Electrical durability	AC-21A: 500 cycles 220/240 V AC 50/60 Hz, AC-21A: 500 cycles 380/415 V AC 50/60 Hz, AC-21A: 500 cycles 440/480 V AC 50/60 Hz, AC-21A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-21A: 500 cycles 500/525 V AC 50/60 Hz, AC-21A: 500 cycles 660/690 V AC 50/60 Hz, AC-22A: 500 cycles 220/240 V AC 50/60 Hz, AC-22A: 500 cycles 380/415 V AC 50/60 Hz, AC-22A: 500 cycles 440/480 V AC 50/60 Hz, AC-22A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-22A: 500 cycles 500/525 V AC 50/60 Hz, AC-22A: 500 cycles 660/690 V AC 50/60 Hz, DC-21A: 500 cycles 125 V DC 2 poles in series, DC-22A: 500 cycles 125 V DC 2 poles in series, DC-21A: 500 cycles 250 V DC 4 poles in series, DC-22A: 500 cycles 250 V DC 4 poles in series, AC-21B: 100 cycles 220/240 V AC 50/60 Hz, AC-21B: 100 cycles 380/415 V AC 50/60 Hz, AC-21B: 100 cycles 440/480 V AC 50/60 Hz, AC-21B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-21B: 100 cycles 500/525 V AC 50/60 Hz, AC-21B: 100 cycles 660/690 V AC 50/60 Hz, AC-22B: 100 cycles 220/240 V AC 50/60 Hz, AC-22B: 100 cycles 380/415 V AC 50/60 Hz, AC-22B: 100 cycles 440/480 V AC 50/60 Hz, AC-22B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-22B: 100 cycles 500/525 V AC 50/60 Hz, AC-22B: 100 cycles 660/690 V AC 50/60 Hz, AC-23B: 500 cycles 220/240 V AC 50/60 Hz, AC-23B: 500 cycles 380/415 V AC 50/60 Hz, AC-23B: 500 cycles 440/480 V AC 50/60 Hz, AC-23B: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-23B: 500 cycles 500/525 V AC 50/60 Hz, AC-23B: 500 cycles 660/690 V AC 50/60 Hz, DC-23B: 500 cycles 125 V DC 2 poles in series, DC-23B: 500 cycles 250 V DC 4 poles in series
Connection pitch	70 mm
Height	300 mm
Width	410 mm
Depth	146.5 mm
Net weight	18 kg
Standards	IEC 60947-3, IEC 60947-1
Product certifications	KEMA-KEUR
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-50…85 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	20.000 cm
Package 1 Width	33.000 cm
Package 1 Length	43.000 cm
Package 1 Weight	18.911 kg
Warranty (in months)	18
