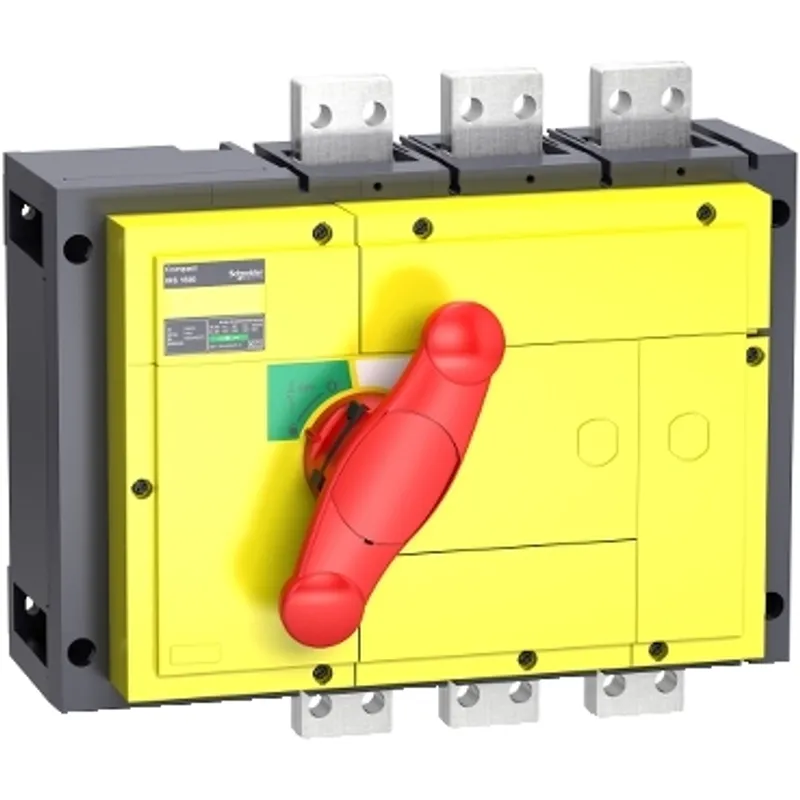

Switch disconnector, Compact INS1000, 1000A, with red rotary handle, yellow front, 3 poles

MPN
31346
EAN
3303430313465
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 31346 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 31346?

This Compact INS1000 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1000A at 415VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1000 is a class II insulation level front-face device as per IEC 60664 standard.

Specifications

Specifications

RangeComPact
Product nameComPacT INS
Product or component typeSwitch disconnector
Poles description3P
Network typeDC, AC
Network frequency50/60 Hz
[Ie] rated operational currentAC-21A: 1000 A AC 50/60 Hz 220/240 V, AC-21A: 1000 A AC 50/60 Hz 380/415 V, AC-21A: 1000 A AC 50/60 Hz 440/480 V, AC-21A: 1000 A AC 50/60 Hz 480 V NEMA, AC-21A: 1000 A AC 50/60 Hz 500/525 V, AC-21A: 1000 A AC 50/60 Hz 660/690 V, AC-22A: 1000 A AC 50/60 Hz 220/240 V, AC-22A: 1000 A AC 50/60 Hz 380/415 V, AC-22A: 1000 A AC 50/60 Hz 440/480 V, AC-22A: 1000 A AC 50/60 Hz 480 V NEMA, AC-22A: 1000 A AC 50/60 Hz 500/525 V, AC-22A: 1000 A AC 50/60 Hz 660/690 V, AC-23A: 1000 A AC 50/60 Hz 220/240 V, AC-23A: 1000 A AC 50/60 Hz 380/415 V, AC-23A: 1000 A AC 50/60 Hz 440/480 V, AC-23A: 1000 A AC 50/60 Hz 480 V NEMA, AC-23A: 1000 A AC 50/60 Hz 500/525 V, AC-23A: 1000 A AC 50/60 Hz 660/690 V, DC-21A: 1000 A DC 125 V 2 poles in series, DC-22A: 1000 A DC 125 V 2 poles in series, DC-23A: 1000 A DC 125 V 2 poles in series
[Ui] rated insulation voltage1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage12 kV
[Ith] conventional free air thermal current1000 A at 60 °C
[Icm] rated short-circuit making capacity330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 75 kA switch-disconnector alone 690 V AC at 50/60 Hz
[Ue] rated operational voltage125 V DC, 690 V AC 50/60 Hz
Suitability for isolationYes
Contact position indicatorYes
Visible breakNo
Pollution degree3
Control typeRotary handle
Handle colourRed
Mounting modeFixed
Mounting supportRail, Plate
Upside connectionFront
Downside connectionFront
Maximum powerAC-23: 315 kW at 220/240 V AC 50/60 Hz, AC-23: 560 kW at 380/400 V AC 50/60 Hz, AC-23: 630 kW at 415 V AC 50/60 Hz, AC-23: 710 kW at 500/525 V AC 50/60 Hz, AC-23: 900 kW at 660/690 V AC 50/60 Hz
Rated dutyUninterrupted
Intermittent duty classClass 120 - 60 %
[Icw] rated short-time withstand current10 kA during 20 s conforming to IEC 60947-3, 20 kA during 3 s conforming to IEC 60947-3, 35 kA during 1 s conforming to IEC 60947-3, 42 kA during 0.8 s conforming to IEC 60947-3, 50 kA during 0.5 s conforming to IEC 60947-3, 8 kA during 30 s conforming to IEC 60947-3
Mechanical durability3000 cycles
Electrical durabilityAC-21A: 500 cycles 220/240 V AC 50/60 Hz, AC-21A: 500 cycles 380/415 V AC 50/60 Hz, AC-21A: 500 cycles 440/480 V AC 50/60 Hz, AC-21A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-21A: 500 cycles 500/525 V AC 50/60 Hz, AC-21A: 500 cycles 660/690 V AC 50/60 Hz, AC-22A: 500 cycles 220/240 V AC 50/60 Hz, AC-22A: 500 cycles 380/415 V AC 50/60 Hz, AC-22A: 500 cycles 440/480 V AC 50/60 Hz, AC-22A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-22A: 500 cycles 500/525 V AC 50/60 Hz, AC-22A: 500 cycles 660/690 V AC 50/60 Hz, AC-23A: 500 cycles 220/240 V AC 50/60 Hz, AC-23A: 500 cycles 380/415 V AC 50/60 Hz, AC-23A: 500 cycles 440/480 V AC 50/60 Hz, AC-23A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-23A: 500 cycles 500/525 V AC 50/60 Hz, AC-23A: 500 cycles 660/690 V AC 50/60 Hz, DC-21A: 500 cycles 125 V DC 2 poles in series, DC-22A: 500 cycles 125 V DC 2 poles in series, DC-23A: 500 cycles 125 V DC 2 poles in series
Connection pitch70 mm
Height300 mm
Width340 mm
Depth146.5 mm
Net weight14 kg
StandardsIEC 60947-1, IEC 60947-3
Product certificationsKEMA-KEUR
IP degree of protectionIP40 conforming to IEC 60529
IK degree of protectionIK07 conforming to EN 50102
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C

Packaging

Package 11 PCE, 36.000 cm × 33.000 cm × 19.600 cm (L × W × H), 15.349 kg
Package 28 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 139.992 kg
