Schneider Electric 28999

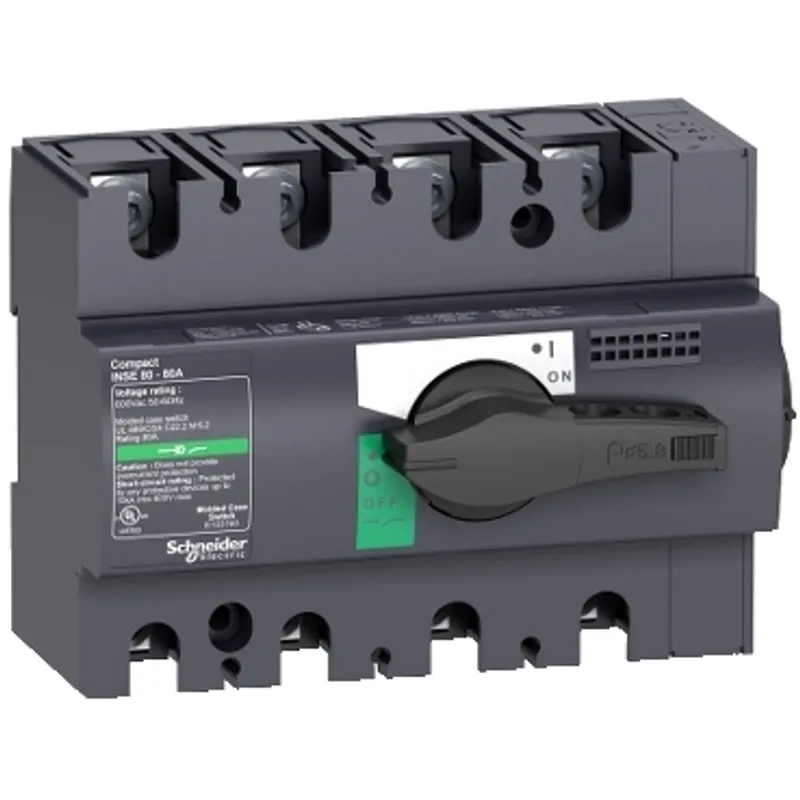

Switch disconnector, Interpact INSE80, 80A, 4 poles

MPN: 28999
Category: ComPact INS/INV

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 28999?

Schneider Electric switch disconnector, Interpact INSE80, 80A, 4 poles, manufacturer part number 28999. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	ComPact
Product name	INSE80
Switch-disconnector name	Interpact INSE80
Poles description	4P
Network type	AC
Network frequency	50/60 Hz
[Ie] rated operational current	80 A AC 50/60 Hz 600 V
[Uimp] rated impulse withstand voltage	8 kV
[Icm] rated short-circuit making capacity	10 kA protected by any protection device 600 V AC at 50/60 Hz, 100 kA protected by circuit breaker NSE100 - 100A 240 V AC at 50/60 Hz, 18 kA protected by circuit breaker NSE100 - 100A 600 V AC at 50/60 Hz, 50 kA with class T or RK fuses 100 A 600 V AC at 50/60 Hz, 65 kA protected by circuit breaker NSE100 - 100A 480 V AC at 50/60 Hz
[Ue] rated operational voltage	600 V AC 50/60 Hz
Suitability for isolation	Yes
Contact position indicator	Yes
Control type	Rotary handle
Mounting mode	Fixed
Mounting support	35 mm symmetrical DIN rail, Plate
Upside connection	Front
Downside connection	Front
Electrical durability	6000 cycles full load
Height	100 mm
Width	135 mm
Depth	62.5 mm
Net weight	0.9 kg
Standards	CSA C22.2 No 5.2, UL 489
Product certifications	KEMA, ASTA, ASEFA

Packaging

Package 1

1 PCE, 15.800 cm × 13.700 cm × 11.900 cm (L × W × H), 1.124 kg

28999: frequently asked questions

When can 28999 be shipped?

28999 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 28999 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 28999 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 28999, subject to availability and destination.
