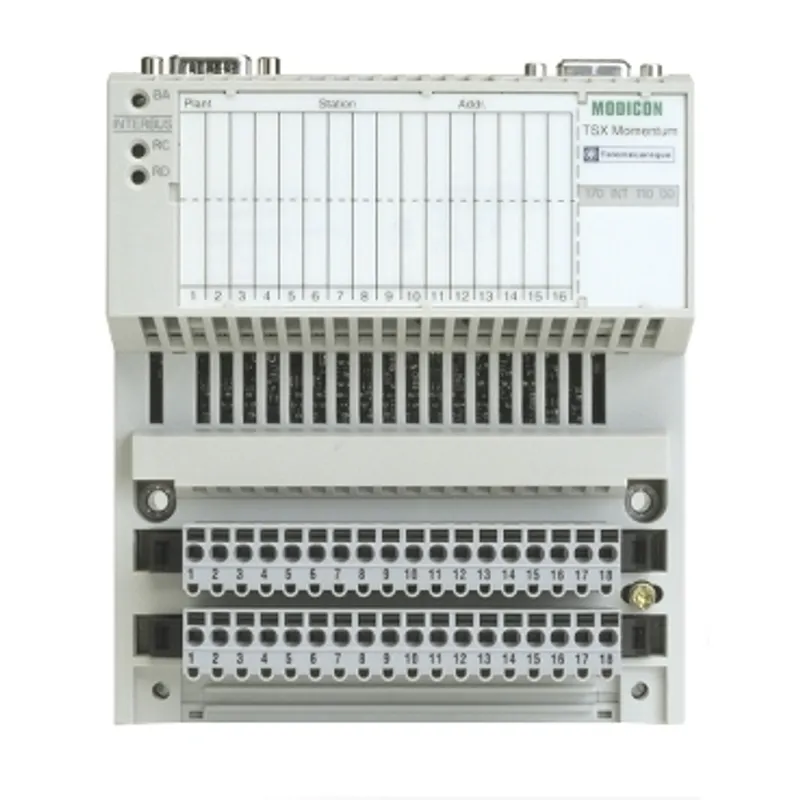

Modicon Momentum - Interbus communication adaptor - twisted pair
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Momentum |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.07 kg |
Shipping & availability
When can 170INT11003 be shipped?
170INT11003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170INT11003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170INT11003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170INT11003, subject to availability and destination.
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Specifications
| Range of product | Modicon Momentum automation platform |
| Product or component type | Interbus communication adaptor |
| Communication port protocol | Interbus generation SUPI 3 |
| Method of access | Master/slave, Continuous shift register |
| Transmission rate | 500 kbit/s |
| Transmission support medium | Twisted pair |
| Topology | Ring |
| Number of devices per segment | 0…254 |
| Maximum cable distance between devices | 12800 m, 400 m between two modules |
| Fail state | Fail safe |
| Control parameter | CRC-16 |
| Supply | From I/O base |
| Marking | CE |
| Local signalling | 1 LED for bus enable (BA), 1 LED for remote bus check (RC), 1 LED for remote bus disabled (RD), 1 LED for logic power check (UL) |
| Electrical connection | 2 connectors SUB-D 9 for connecting Interbus |
| Module format | Standard |
| Net weight | 0.07 kg |
| Product certifications | FM Class 1 Division 2, CSA, UL |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.100 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 195.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.048 kg |
| Warranty | 18 months |
