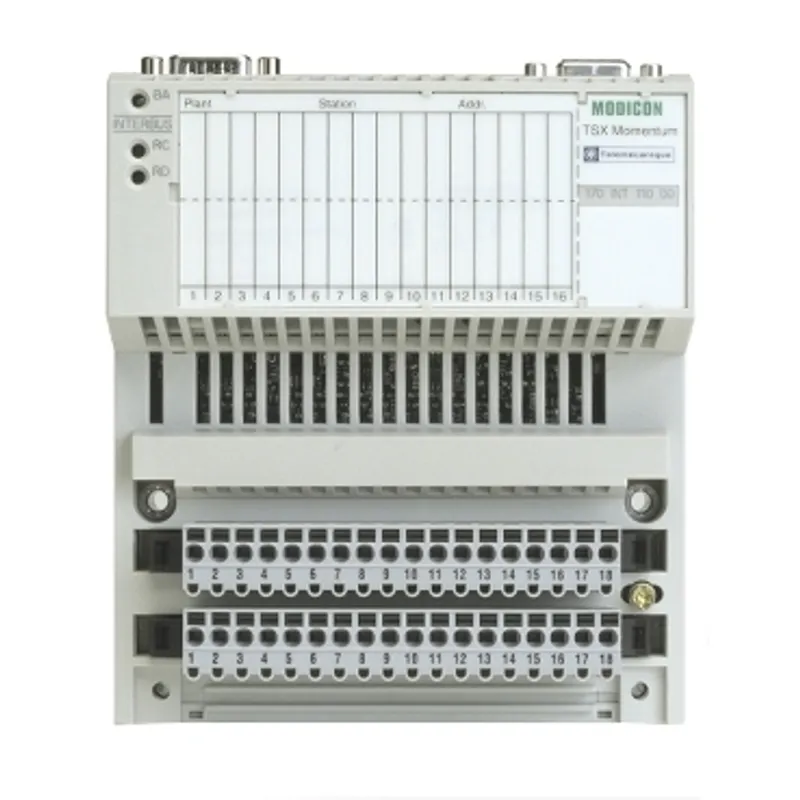

Modicon Momentum - Interbus communication adaptor - twisted pair
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Interbus communication adaptor |
| Communication port protocol | Interbus generation SUPI 2 |
| Method of access | Continuous shift register, Master/slave |
| Transmission rate | 500 kbit/s |
| Transmission support medium | Twisted pair |
| Topology | Ring |
| Number of devices per segment | 0…254 |
| Maximum cable distance between devices | 12800 m, 400 m between two modules |
| Fail state | Fail safe |
| Control parameter | CRC-16 |
| Supply | From I/O base |
| Marking | CE |
| Local signalling | 1 LED (green) for bus enable (BA), 1 LED (green) for remote bus check (RC), 1 LED (green) for remote bus disabled (RD) |
| Electrical connection | 2 connectors SUB-D 9 for connecting Interbus |
| Module format | Standard |
| Net weight | 0.07 kg |
| Product certifications | UL, FM Class 1 Division 2, CSA |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Package 1 | 1 PCE, 26.000 cm × 17.800 cm × 5.600 cm (L × W × H), 188.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.116 kg |
