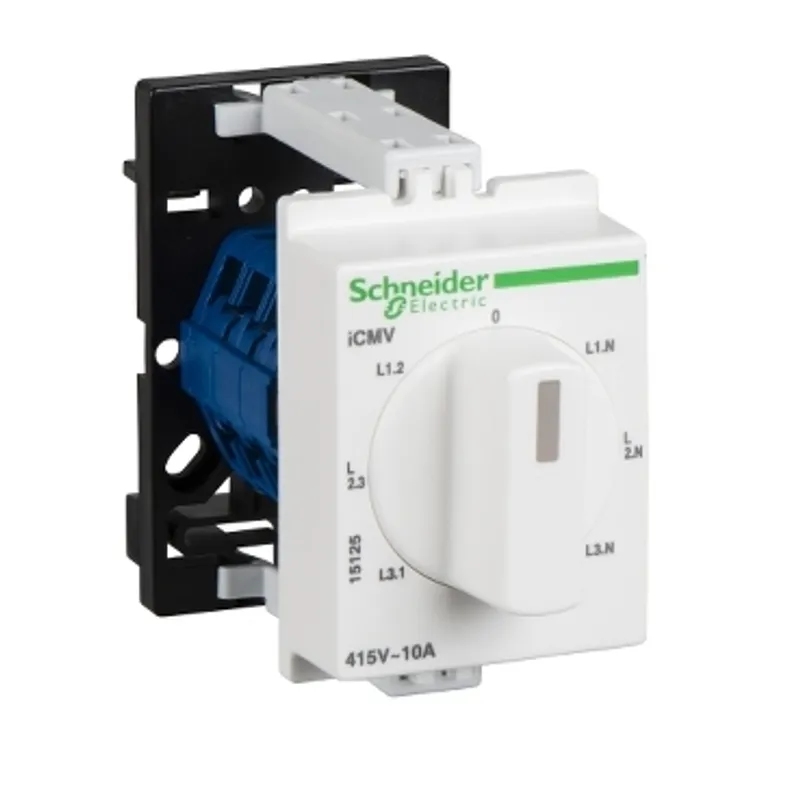

Schneider Electric 15125

Voltmeter selector switch iCMV - 10 A

MPN
15125
EAN
3303430151258
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 15125?

The 4 modules selector switches are designed for DIN rail installation in enclosures or cubicles. The voltmeter selector switch uses a single voltmeter for successive measurement of the voltages (phase-to-phase and phase-to-neutral) of a three-phase circuit. Electrical durability of 1,000,000 operations, and mechanical durability of 2,000,000 operations for an utilization category type AC21A-3. This product is calibrated for 440V AC network. 7 contacts for phase 1, 2, 3, phase 1 to neutral, phase 2 to neutral, phase 3 to neutral or none. Complient to standards IEC/EN 60947-3. Ingress Protection IP66 on front, and IP20 on the back at terminal level. Product dimensions are 60mm in height, 36mm in width and 75mm in depth.

Specifications

Specifications

Range of productActi9
RangeActi9
Product nameActi9 iCM
Product or component typeSelector switch
Device short nameiCMV
Device applicationVoltmeter selector
[Ue] rated operational voltage< 440 V AC 50/60 Hz
[Ith] conventional free air thermal current10 A
[Ie] rated operational current10 A
Control typeRotary handle 7 positions
MarkingL3L1 - L2L3 - L1L2 - 0 - L1N - L2N - L3N
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches4
Height60 mm
Width36 mm
Depth75 mm
Mechanical durability2000000 cycles
Electrical durability1000000 cycles
Connections - terminalsCaptive screw-jumper terminals - <= 1.5 mm²
StandardsIEC 60947-3
IP degree of protectionIP66 front face:, IP20 terminals:
Ambient air temperature for operation-20…55 °C
Ambient air temperature for storage-25…80 °C

Packaging

Package 11 PCE, 8.000 cm × 7.500 cm × 4.000 cm (L × W × H), 76.000 g
Package 280 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.636 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

15125: frequently asked questions

When can 15125 be shipped?

15125 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 15125 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 15125 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15125, subject to availability and destination.
