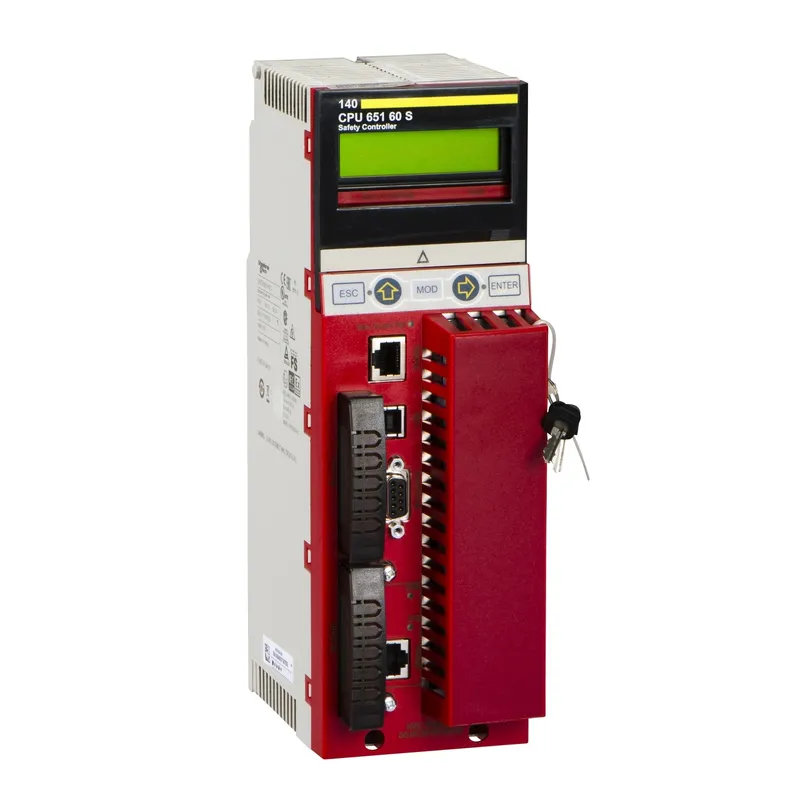

Schneider Electric 140CPU65160S
Unity processor Modicon Quantum - 1024 kB - 266 MHz
- MPN
- 140CPU65160S
- EAN
- 3595863954067
- Category
- Modicon Quantum
Discontinued by Schneider Electric — we can still source the original 140CPU65160S (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric 140CPU65160S?
Schneider Electric 140CPU65160S — Unity processor Modicon Quantum - 1024 kB - 266 MHz. Discontinued by Schneider Electric; the manufacturer's successor is BMEP582040S. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Quantum automation platform |
| Product or component type | Unity safety processor |
| Software designation | Unity Pro XL safety |
| Backup type | Lithium battery 990XCP98000 |
Complementary
| Clock frequency | 266 MHz |
| Number of slots | 2; 4; 6; 16; 10; 3 |
| Number of racks | 1 - local rack(s) |
| Number of remote I/O station | 31 - 1 rack(s) per remote |
| Discrete I/O number | Unlimited (13 slots max) - local - forbidden in Hot Standby application; 31744 inputs, 31744 outputs - remote |
| Analogue I/O number | Unlimited (26 slots max) - local - forbidden in Hot Standby application; 1984 inputs,1984 outputs - remote |
| Number of optional modules | 6 Ethernet 140NOE77111 |
| Maximum number of connections | 1 Modbus Plus - local; 1 Modbus (RS232/485 Modbus/ASCII); 1 USB - local; 6 Ethernet TCP/IP - local |
| Integrated connection type | 1 Ethernet TCP/IP local; 1 Modbus local; 1 Modbus Plus local; 1 USB local |
| Checks | Process control |
| Memory description | Expandable 7168 kB - program with PCMCIA card; Expandable 8 MB - file storage with PCMCIA card; Internal RAM 1024 kB |
| Switch function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task |
| Execution time per instruction | 0.09...0.12 µs on word; 0.105...0.15 µs Boolean; 0.96...1.02 µs on fixed-point arithmetic |
| Execution time for 1 Kinstruction | 5.03 65 % Boolean and 35 % numerical; 5.14 100 % Boolean |
| System overhead | 1.5 ms for master task |
| Bus current requirement | 2760 mA |
| Maximum supply current | 90 A 60 °C lithium battery; 60 µA lithium battery |
| [Us] rated supply voltage | 3 V DC lithium battery |
| Battery capacity | 1200 Ah |
| Battery life | 10 year(s) |
| Display type | LCD 2 lines of 16 characters |
| Local signalling | 1 LED (green) for Ethernet activity (COM); 1 LED (red) for Ethernet collision (ERR) |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network; 1 female connector USB type B for connecting to PC; 2 connectors RJ45 for connecting Modbus bus |
| Marking | CE |
Environment
| Product certifications | CSA; C-Tick; TÜV Rheinland (SIL3); CSA HazLoc |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
140CPU65160S: frequently asked questions
Can I still buy the 140CPU65160S now that it is discontinued?
Yes. Schneider Electric has discontinued the 140CPU65160S, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMEP582040S as its successor — we can quote both.
When can 140CPU65160S be shipped?
140CPU65160S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 140CPU65160S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 140CPU65160S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140CPU65160S, subject to availability and destination.
