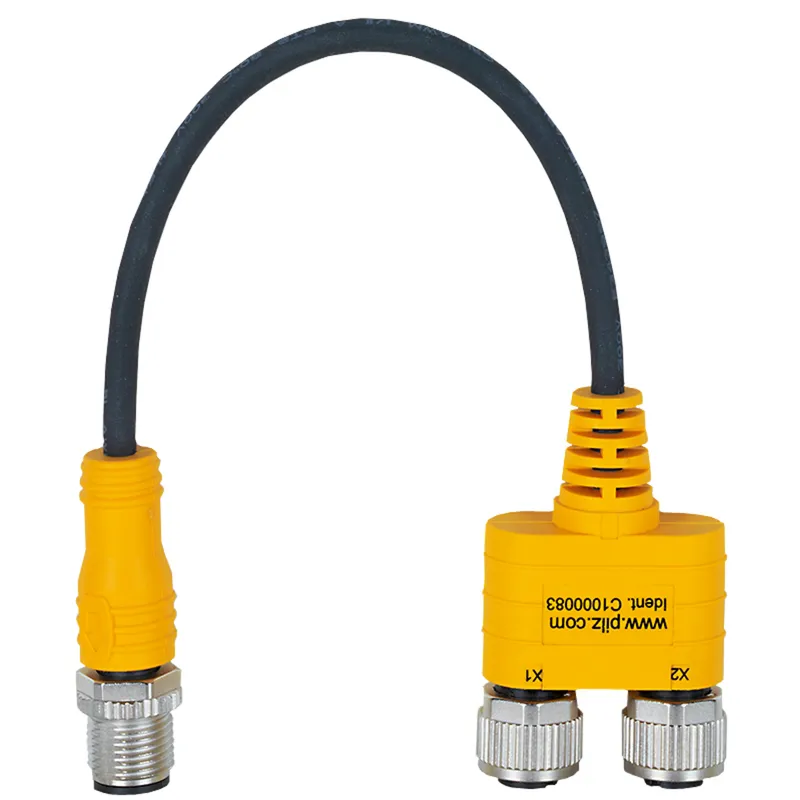

What is the Pilz C1000083?
Y-adapter to connect the transmitter and receiver for PSENopt II Advanced uncoded to an FS input, 5-pin M12 male connector (X3, evaluation unit connection), straight, A-coded to 5-pin M12 female connector (X1, transmitter), straight, A-coded and 5-pin M12 female connector (X2, receiver), straight, A-coded
Specifications
General data
| Product ID (Pilz order number) | C1000083 |
| Approval | CE |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Type of rated voltage U1 | AC/DC |
| Rated current | 2 |
Environmental data
| Ambient temperature | -25 … 80 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 5-pin M12 female connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 5-pin M12 female connector |
| Shape of connector type 2 | straight |
| Coding of M12 connector 2 | A coded |
| Connector type 3 | 5-pin M12 male connector |
| Shape of connector type 3 | straight |
| Coding of M12 connector 3 | A coded |
| Matl threaded ring conn 1 | Zn, nickel-plated |
| Matl threaded ring conn 2 | Zn, nickel-plated |
| Material threaded ring conn 3 | Zn, nickel-plated |
| Housing material connector 3 | TPU |
| Contact surfaces material 1 | CuZn, gold-plated |
| Seal material | FKM |
| Material of pins | CuZn |
| Material of sockets | CuZn |
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Length cable | 0.15 |
| Colour cable insulation 1 | Black |
| Material of cable insulation 1 | TPU, PUR |
| Trailing capability of cable 1 | no |
| Bend radius (when laying) K1 | 12 x Ø |
| Max. outside diameter cable K1 | 4.7 |
| Conductor cross section | 0.26 |
| Cable cross section AWG K1 | 24 |
| Shielding K1 | no |
| Number of conductors | 5 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | FT2 |
| Net weight | 39 g |
| Gross weight | 43 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002925 |
| GTIN | 4046548110678 |
| Volume | 0 dm3 |
