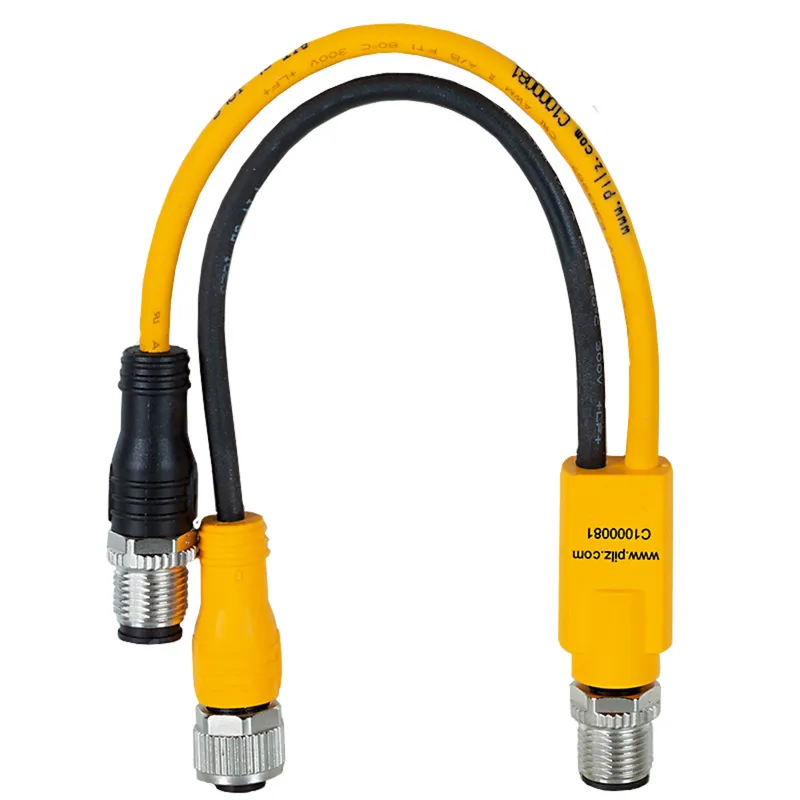

Pilz C1000081
Adapter/GB/M12-8SMX/M12-5SFX/M12-5SMX/PT
- MPN
- C1000081
- EAN
- 4046548110173
- Category
- Adapter
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz C1000081?
Adapter for using the PITgatebox IOLS without further series connection of Pilz sensors, 8-pin M12 male connector, straight, A-coded and 5-pin M12 female connector, straight, A-coded to 5-pin M12 male connector, straight, A-coded, cable length: 0.15 m
Specifications
General data
| Product ID (Pilz order number) | C1000081 |
| Approval | CE |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 2 |
| Typ. conductor resistance K1 | 87.5 Ohm/km |
Environmental data
| Ambient temperature | -40 … 80 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 8-pin M12 male connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 5-pin M12 female connector |
| Shape of connector type 2 | straight |
| Coding of M12 connector 2 | A coded |
| Connector type 3 | 5-pin M12 male connector |
| Shape of connector type 3 | straight |
| Coding of M12 connector 3 | A coded |
| Matl threaded ring conn 1 | Zn, nickel-plated |
| Matl threaded ring conn 2 | Zn, nickel-plated |
| Material threaded ring conn 3 | Zn, nickel-plated |
| Housing material connector 3 | TPU |
| Contact surfaces material 1 | CuZn, gold-plated |
| Seal material | FKM |
| Cable material K1 | Cu |
| Cable material K2 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Insulation material cable K2 | PP (9Y) |
| Length cable | 0.15 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Colour cable insulation 2 | Black |
| Material of cable insulation 1 | PUR |
| Material of cable insulation 2 | PUR |
| Trailing capability of cable 1 | no |
| Max. outside diameter cable K1 | 5.1 |
| Conductor cross section | 0.25 |
| Cable cross section AWG K1 | 24 |
| Cable cross section AWG K2 | 24 |
| Shielding K1 | no |
| Shielding K2 | No |
| Number of conductors | 4 |
| Approvals for cable K1 | UL AWM-Style 20233 |
| Approvals for cable K2 | UL AWM-Style 20549 |
| Approvals for connector 1 | UL |
| Approvals for connector 2 | UL |
| Approvals for connector 3 | UL |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | FT2 |
| Net weight | 44 g |
| Gross weight | 48 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002925 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548110173 |
| Volume | 0 dm3 |
