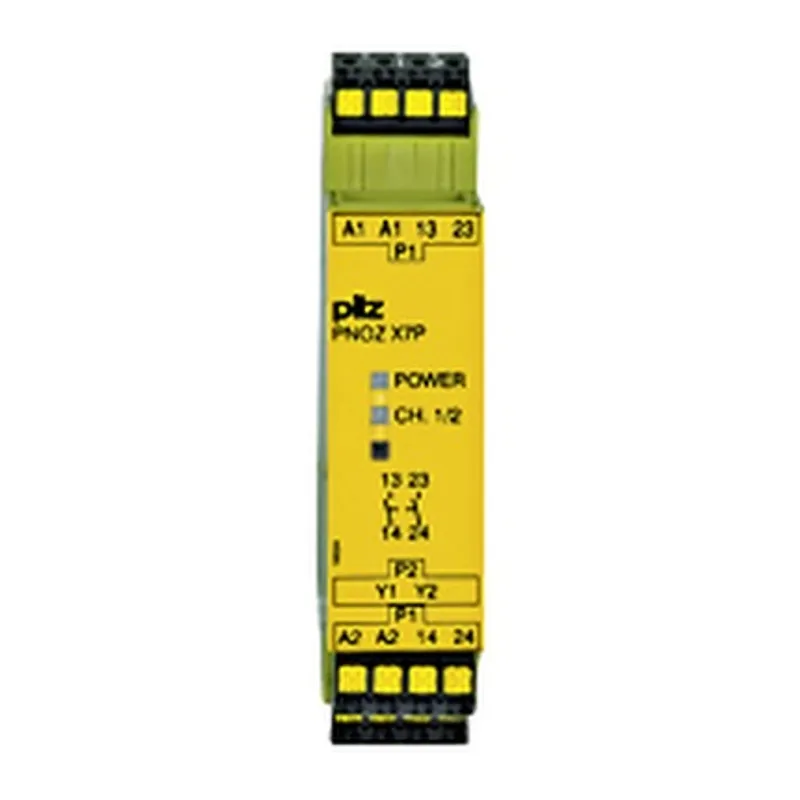

Pilz 787056

PNOZ X7P C 230-240VAC 2n/o

MPN
787056
EAN
4046548008760
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 787056 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 787056?

Safety relay (standalone), inputs: 1-channel wiring, outputs: 2 N/O, automatic/manual start, UB = 230 - 240 V AC, width: 22.5 mm, plug-in spring-loaded terminals, monitoring of E-STOP , safety gates. This product has been discontinued. The following products are fully compatible in function: 750134 751134 However, it should be checked for the respective application whether all necessary framework conditions and parameters are also fulfilled for the intended use.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)787056
ApprovalCCC, CE, UKCA, cULus Listed, TÜV, EAC (Eurasian)
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)230 … 240 V
Type of supply voltage U1AC
Power consumption AC2 VA

Inputs

Number of inputs1

Semiconductor outputs

Number of semicond. outputs0

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.4 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.4 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.4 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyC300, R300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material front plateABS UL 94 V0
Connection terminalSpring-loaded terminal
Terminal styleplug-in
Height dimension101 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight225 g
Gross weight235 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371819
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC001449
UNSPSC 2539122331
GTIN4046548008760
Volume0.317 dm3
Harmonized System Code85364900

787056: frequently asked questions

Can I still buy the 787056 now that it is discontinued?

Yes. Pilz has discontinued the 787056, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 787056 be shipped?

787056 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 787056 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 787056 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 787056, subject to availability and destination.
