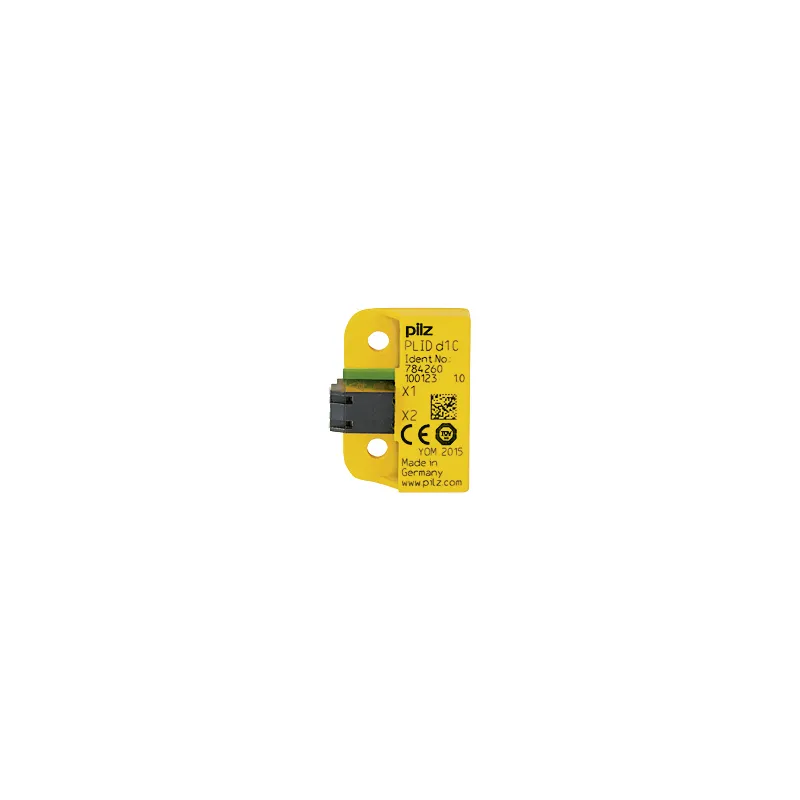

Pilz 784260

PLID d1 C

MPN
784260
EAN
4046548067118
Category
PLIDdys
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 784260?

PNOZ, accessories, safe line inspection of a 2-wire line for short circuit, short across contacts and open circuit, test pulse signalinput for evaluation device PNOZ e8.1p, manual test with 1N/O contact, continuous test with 1N/C, maximum cable length 3000 m, version with spring-loaded terminal.

Specifications

General data

Product ID (Pilz order number)784260
ApprovalCE, UKCA, cULus Listed, TÜV
LifecycleActive (current Pilz product)

Electrical data

Source of internal voltageVia evaluation device

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-30 … 70 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61000-6-4
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Max. cable length3000 m
Housing material lower sectionPC
Connection terminalSpring-loaded terminal
Terminal stylefixed
Height dimension36 mm
Width dimension30 mm
Depth dimension12.5 mm
Net weight10 g
Gross weight28 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
RoHS except.s acc. to direct.34, 7a, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1
CAS No.7439-92-1, 1317-36-8
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27141990
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC002586
UNSPSC 2539122331
GTIN4046548067118
Volume0.248 dm3
Harmonized System Code85389091
Quantity per packaging unit1
