Pilz 773728

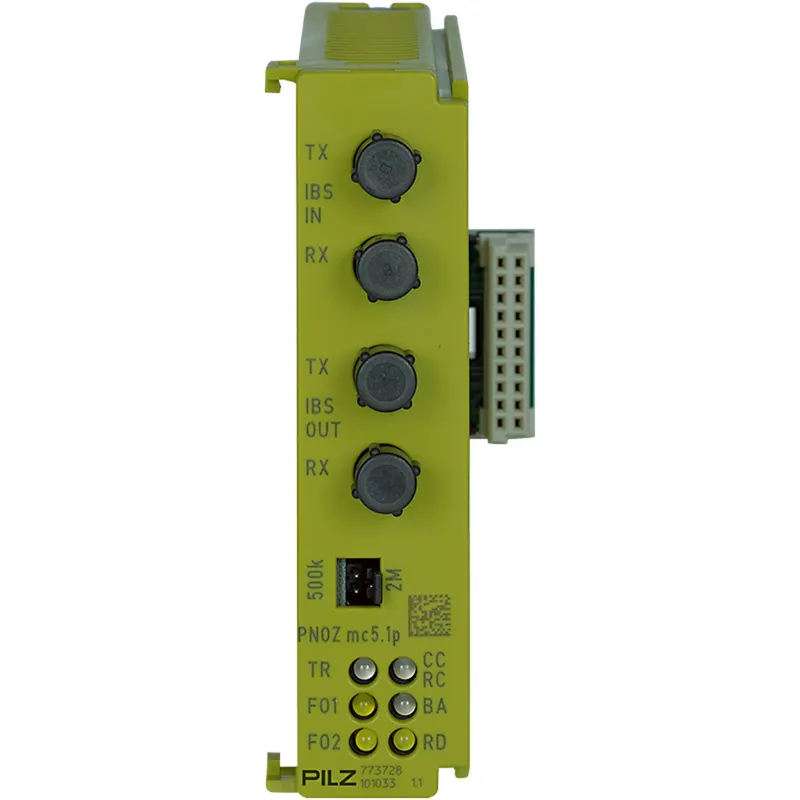

PNOZmc5.1p Interbus LWL / Fiberoptic

MPN
773728
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 773728 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 773728?

Configurable safe small controllers, PNOZmulti Classic, fieldbus module, INTERBUS FO.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)773728
ApprovalCCC, CE, cULus Listed, KCC, KOSHA, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Tolerance of UINT. Module-2 %/+2 %

Fieldbus interface

Fieldbus interfaceINTERBUS FO
Fieldbus device typeSlave
Selectable transmission rates500 kBit/s, 2 MBit/s
Connection fieldbusF-SMA connector

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature0 … 55 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-30, EN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryIII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Mechanical data

Mounting positionhorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Height dimension94 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight145 g
Gross weight163 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
RoHS except.s acc. to direct.7a
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead
%-part of the pollutant> 0,1
CAS No.7439-92-1
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-9.1
ECLASS Reference Feature27242208
ETIM VersionETIM-7.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001423

773728: frequently asked questions

Can I still buy the 773728 now that it is discontinued?

Yes. Pilz has discontinued the 773728, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 773728 be shipped?

773728 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 773728 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 773728 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773728, subject to availability and destination.
