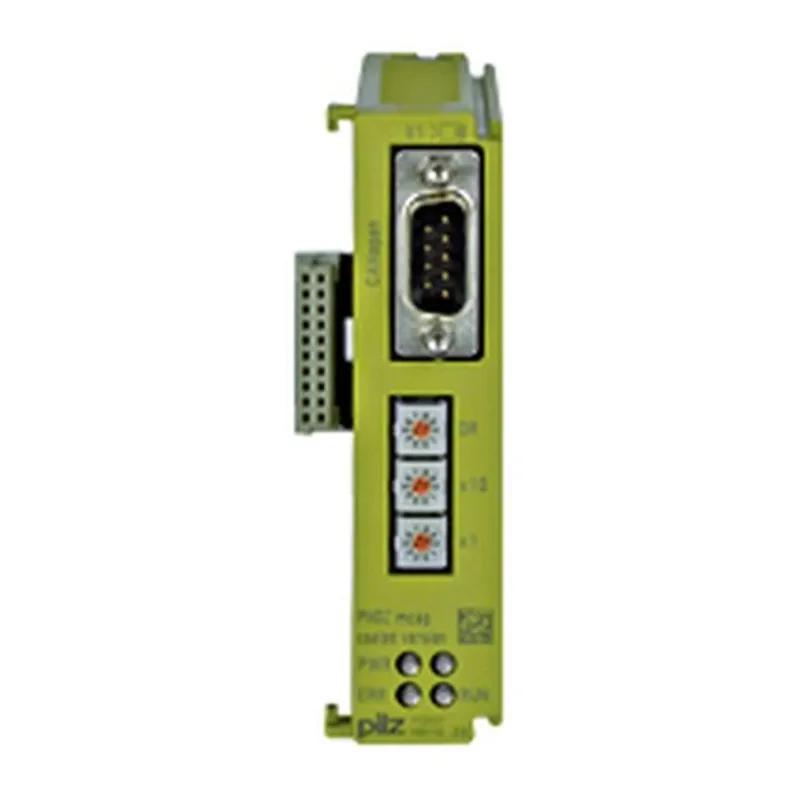

Pilz 773727
PNOZ mc6p CANopen coated version
- MPN
- 773727
Discontinued by Pilz — we can still source the original 773727 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pilz 773727?
Configurable safe small controllers, PNOZmulti Classic, fieldbus module, CANopen, expanded temperature range.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 773727 |
| Approval | CCC, CE, cULus Listed, KCC, KOSHA, EAC (Eurasian), TÜV |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Purpose of UINT1 | Module supply |
| Source of internal voltage | Via base unit |
| Voltage type of UINT1 | DC |
| Tolerance of UINT. Module | -2 %/+2 % |
Fieldbus interface
| Fieldbus interface | CANopen |
| Fieldbus device type | Slave |
| Name of fieldbus protocol | CiA DS-301 V3.0 |
| Perm. fieldbus station address | 0 - 99d |
| Selectable transmission rates | 10 kBit/s, 500 kBit/s, 20 kBit/s, 250 kBit/s, 1 MBit/s, 800 kBit/s, 50 kBit/s, 125 kBit/s |
| Connection fieldbus | 9-pin D-Sub male connector |
| Galv. isolation fieldbus | Yes |
| Test voltage | 500 V AC |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 50 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Briefly |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Corrosive gas check SO2 | DIN V 40046-36 |
| Corrosive gas check H2S | DIN V 40046-37 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Mounting position | horizontal on top hat rail |
| DIN-rail dimensions | 35 x 7.5 EN 50022 |
| Housing material lower section | PPO UL 94 V0 |
| Housing material front plate | ABS UL 94 V0 |
| Height dimension | 94 mm |
| Width dimension | 22.5 mm |
| Depth dimension | 119 mm |
| Net weight | 145 g |
| Gross weight | 163 g |
Environment
| REACh compliance | contains min. 1 SVHC-substance |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-9.1 |
| ECLASS Reference Feature | 27242208 |
| ETIM Version | ETIM-7.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001423 |
