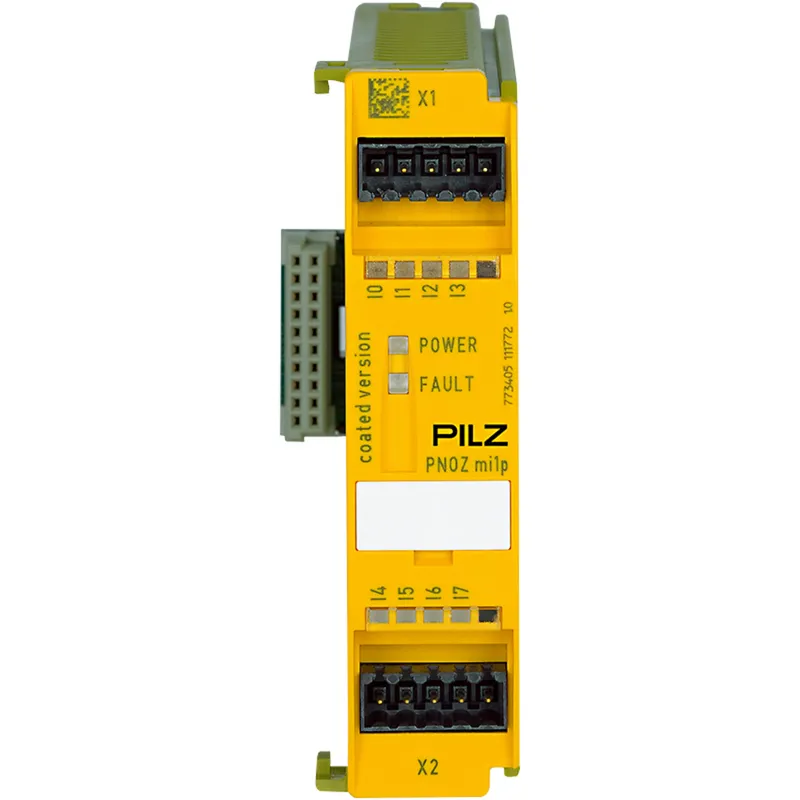

Pilz 773405

PNOZ mi1p 8 input coated version

MPN
773405
EAN
4046548013030
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 773405 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 773405?

PNOZmulti Classic, expansion module, failsafe, 8 digital inputs, for increased environmental requirements.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)773405
ApprovalCE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Tolerance of UINT. Module-2 %/+2 %

Inputs

Number of digital inputs8
Signal level at input at 0-3 - +5 VDC
U input to EN 61131-2 Type 124 V DC
Potential isolation inputNo

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature-25 … 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-30, EN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Briefly
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Broad band noise toEN 60068-2-64
Corrosive gas check SO2DIN V 40046-36
Corrosive gas check H2SDIN V 40046-37
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryIII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Mechanical data

Mounting positionhorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Connection terminalScrew terminal, Spring-loaded terminal
Flex. cond. c/s AWG info24 - 16 AWG
Height dimension94 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight123 g
Gross weight141 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1
CAS No.7439-92-1, 1317-36-8
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242204
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001419
UNSPSC 2539122331
GTIN4046548013030
Volume0.403 dm3
Harmonized System Code85389091

773405: frequently asked questions

Can I still buy the 773405 now that it is discontinued?

Yes. Pilz has discontinued the 773405, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 773405 be shipped?

773405 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 773405 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 773405 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773405, subject to availability and destination.
