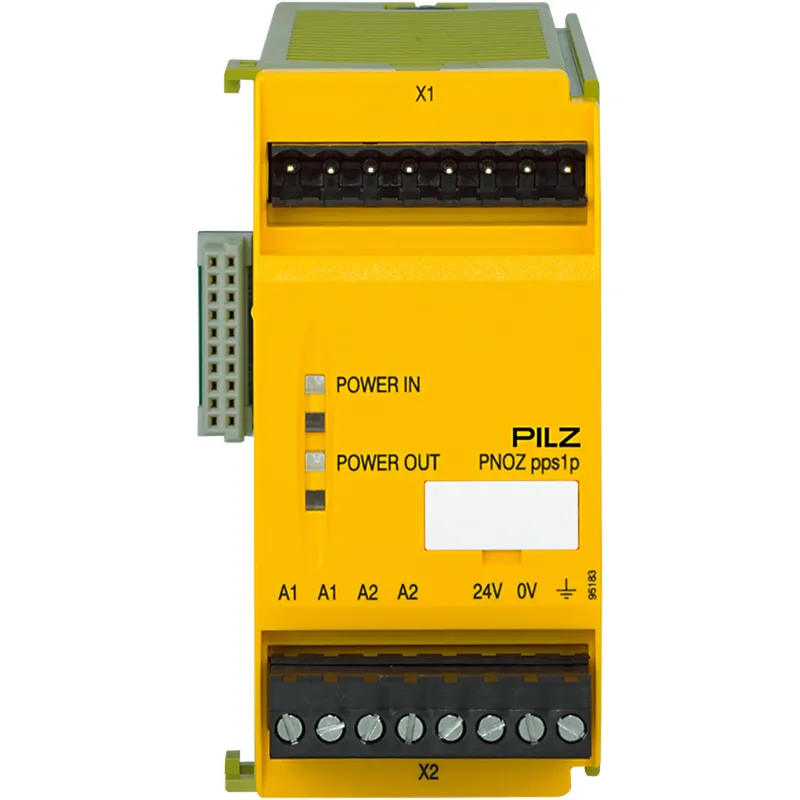

Pilz 773200 – PNOZ pps1p 100-240VAC
Discontinued by Pilz — we can still source the original 773200 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Head modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.285 kg |
| UPC / EAN | 4046548013139 |
Shipping & availability
Can I still buy the 773200 now that it is discontinued?
Yes. Pilz has discontinued the 773200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 773200 be shipped?
773200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773200, subject to availability and destination.
Power supply for the modular safety system PNOZpower, connection options for 1 base unit and max. 4 expansion modules, UB 100 - 240 V AC/DC, output voltage: 19 V / 24 V, output power: 15 W, width: 45 mm, galvanic isolation, short circuit-proof, plug-in terminals of screw type.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 773200 |
| Approval | CE, CCC, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Supply voltage (V) | 100 … 240 V |
| Type of supply voltage U1 | AC |
| Power consumption AC | 30 VA |
| Type of secondary voltage | DC |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | -10 … 55 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 60947-5-1, EN 61000-6-2, EN 61000-6-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP40 |
Mechanical data
| Mounting position | horizontal on top hat rail |
| Housing material front plate | ABS UL 94 V0 |
| Housing material upper part | ABS UL 94 V0 |
| Connection terminal | Screw terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | 24 - 14 AWG |
| Height dimension | 94 mm |
| Width dimension | 45 mm |
| Depth dimension | 121 mm |
| Net weight | 285 g |
| Gross weight | 295 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371819 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001449 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548013139 |
| Volume | 0.732 dm3 |
| Harmonized System Code | 85044085 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Operating Manual PNOZ pps1p | PDF · 1.0 MB |
| Operating Manual PNOZ pps1p | PDF · 0.7 MB |
| Operating Manual PNOZ pps1p | PDF · 1.0 MB |
| Operating Manual PNOZ pps1p | PDF · 0.6 MB |
CAD & dimension drawings
Certificates (8)
| Certificate (CQC) 2024010305681904 | PDF · 2.3 MB |
| Certificate (EAC) RU-C-DE-HB-B-03002-23 | PDF · 1.2 MB |
| Type examination certificate (UKCA) UK-MAC000100 i01 | PDF · 0.8 MB |
| Certificate (UL) NRNT.E153882 | |
| Certificate (CQC) 2024010303682025 | PDF · 2.3 MB |
| Certificate (UL) NRNT7.E153882 | |
| EU/EC-Declaration of Conformity | PDF · 0.1 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.1 MB |
