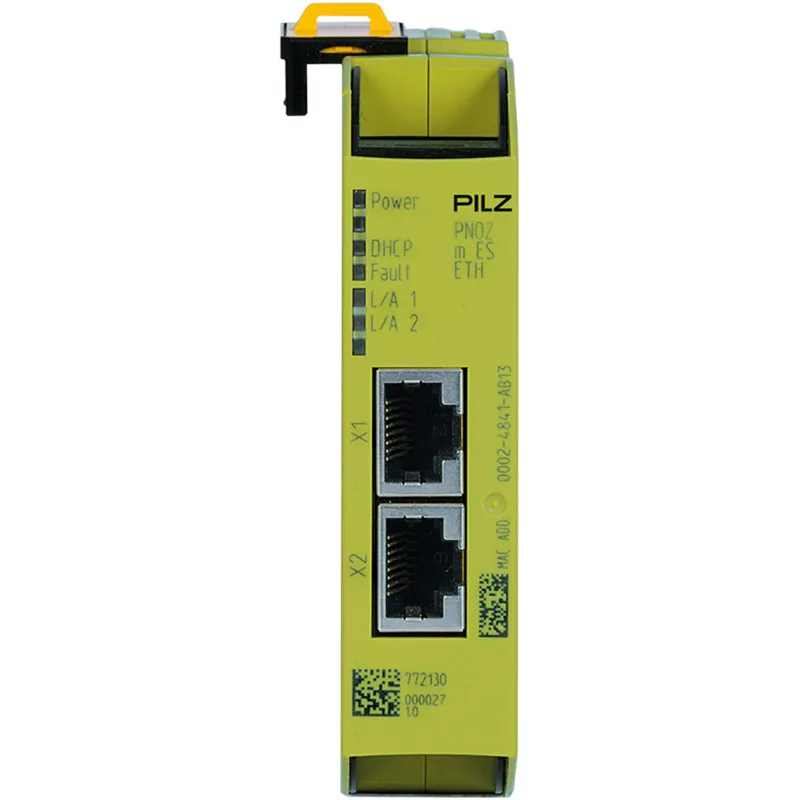

Pilz 772130

PNOZ m ES ETH

MPN
772130
EAN
4046548069471
€136.74excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Choose condition
Need a larger quantity or a formal quote?
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 772130?

Configurable safe small controllers PNOZmulti 2, communication module, 2 Ethernet / Modbus TCP interfaces.

Specifications

General data

Product ID (Pilz order number)772130
ApprovalCE, UKCA, cULus Listed, EAC (Eurasian)
Application rangeStandard
LifecycleActive (current Pilz product)

Electrical data

Purpose of UINT1Versorgung des Moduls
Source of internal voltageüber Basisgerät
Voltage type of UINT1DC
Tolerance of UINT. Module-2 %/+2 %

Ethernet interface

Ethernet IP address169.254.60.1
Connector type ETHERNET int.RJ45
Ethernet transmission rate10 MBit/s, 100 MBit/s
Number of Ethernet interfaces2

Fieldbus interface

Fieldbus interfaceModbus/TCP
Fieldbus device typeSlave
Connection fieldbusRJ45
Galv. isolation fieldbusja

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature0 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-30, EN 60068-2-78
Condensation permitted?unzulässig
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, mountingIP54
Protection type, housingIP20
Terminal protection typeIP20

Potential separation

Potential isolation 1 betweenFeldbus und Modul
Type of potential isolation 1Funktionsisolierung

Mechanical data

Mounting positionwaager. auf Hutschiene
DIN-rail dimensions35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Height dimension101.4 mm
Width dimension22.5 mm
Depth dimension111 mm
Net weight80 g
Gross weight90 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
REACh complianceContains no SVHC substances
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242208
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001423
UNSPSC 2539122331
GTIN4046548069471
Volume0.343 dm3
Harmonized System Code85176200
Quantity per packaging unit1
