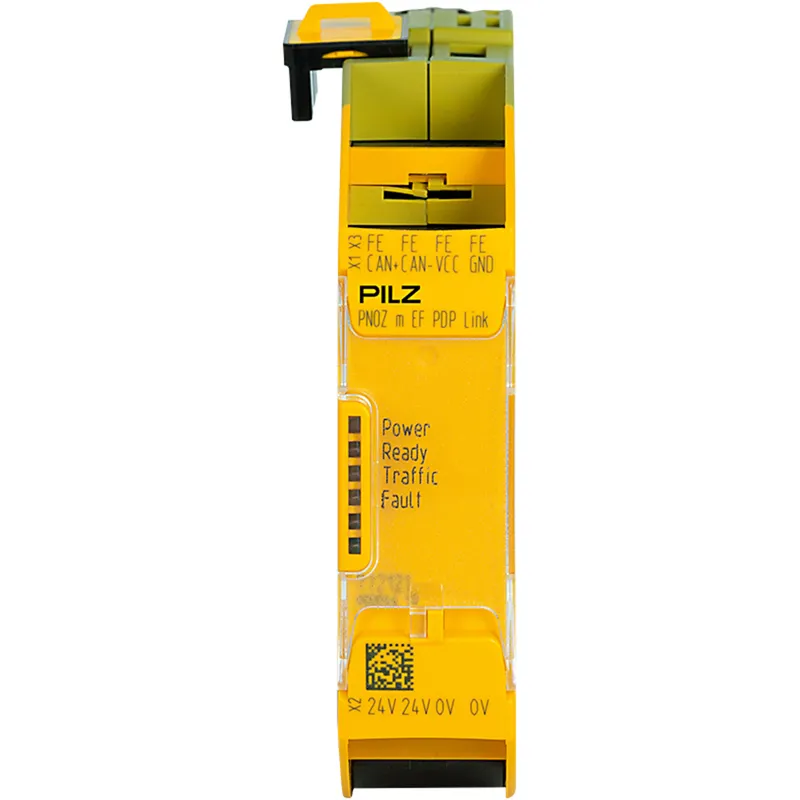

Pilz 772121
PNOZ m EF PDP Link
- MPN
- 772121
- EAN
- 4046548069686
- Category
- PNOZmulti 2 - safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 772121?
Configurable safe small controllers PNOZmulti 2, expansion module, safe decentralised I/O modules.
Specifications
General data
| Product ID (Pilz order number) | 772121 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Application range | Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Versorgung des Moduls |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 100 |
| Device circuit breaker U1 | 6 A, Automat, Char.B |
| Purpose of UINT1 | Versorgung des Moduls |
| Source of internal voltage | über Basisgerät |
| Voltage type of UINT1 | DC |
Test clock outputs
| Short circ.prot. UB dec. mods. | ja |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Potential separation
| Potential isolation 1 between | Modul und Systemspannung |
| Type of potential isolation 1 | Funktionsisolierung |
Mechanical data
| Mounting position | waager. auf Hutschiene |
| DIN-rail dimensions | 35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715 |
| Max. cable length unshielded | 30 |
| Max. cable length shielded | 100 |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material upper part | PC |
| Connection terminal | Schraubklemme, Federkraftklemme |
| Terminal style | steckbar |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 101.4 mm |
| Width dimension | 22.5 mm |
| Depth dimension | 120 mm |
| Net weight | 96 g |
| Gross weight | 117 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1% |
| CAS No. | 7439-92-1, 1317-36-8 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242208 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001423 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548069686 |
| Volume | 0.367 dm3 |
| Harmonized System Code | 85176200 |
| Quantity per packaging unit | 1 |
