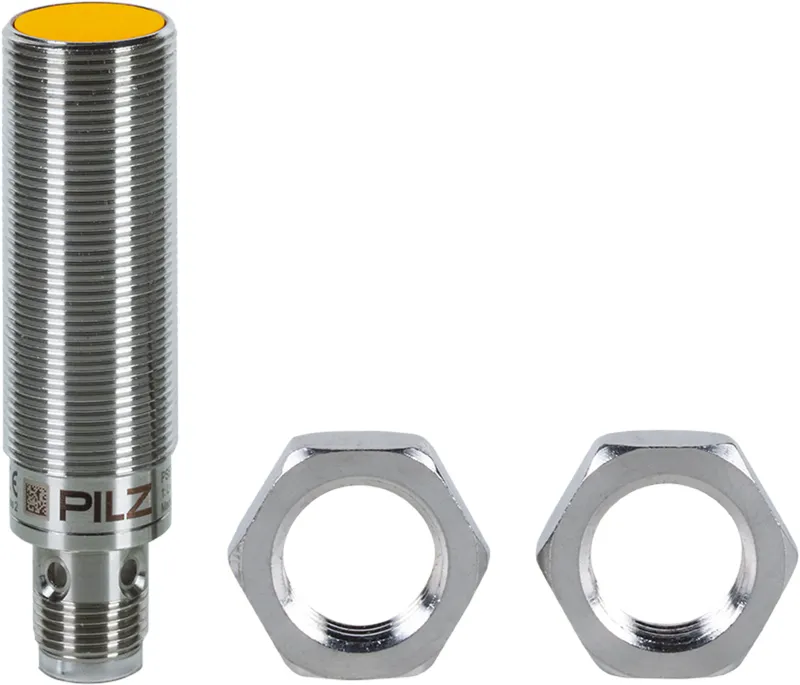

Pilz 6P000002
PSEN in-B-A-N
- MPN
- 6P000002
- EAN
- 4046548108736
- Category
- PSENini
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 6P000002?
Safe inductive proximity switch, 2 safety outputs OSSD, cylindrical design M18, switching distance: 5 mm flush, 4-pin M12 male connector
Specifications
General data
| Product ID (Pilz order number) | 6P000002 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Sensor principle | inductive |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Rated operating voltage | 24 V DC |
Semiconductor outputs
| Number of OSSD outputs | 2 |
| S/C output short circuit proof | Yes |
Environmental data
| Ambient temperature | -25 … 70 °C |
| Perm. operating height ASL | 2000 m |
| Protection type, housing | IP69, IP68 |
Mechanical data
| Sensor can be flush-mounted | Yes |
| Connection type | M12 4-pin |
| Housing material front plate | PBT |
| Height dimension | 18 mm |
| Width dimension | 65 mm |
| Net weight | 42 g |
| Gross weight | 60 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274101 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002714 |
| GTIN | 4046548108736 |
| Volume | 0.104 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6P000002: frequently asked questions
When can 6P000002 be shipped?
6P000002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6P000002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6P000002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6P000002, subject to availability and destination.
