Compare PSENini
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Height dimension | Net weight | Gross weight | GTIN |
|---|

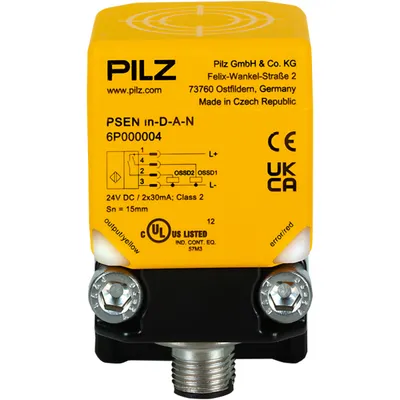

| 6P000004 | 6P000004 | 40 mm | 192 g | 250 g | 4046548108767 |

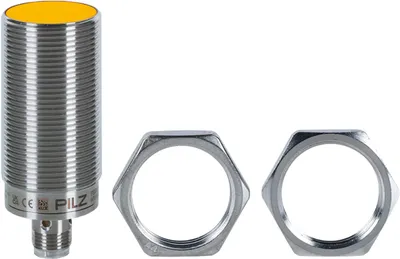

| 6P000003 | 6P000003 | 30 mm | 118 g | 150 g | 4046548108750 |

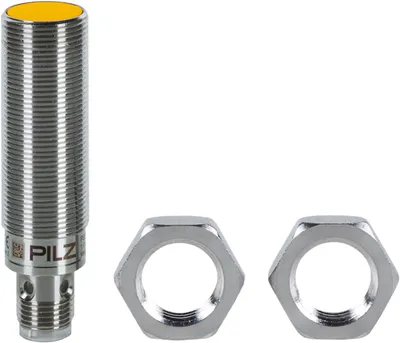

| 6P000002 | 6P000002 | 18 mm | 42 g | 60 g | 4046548108736 |

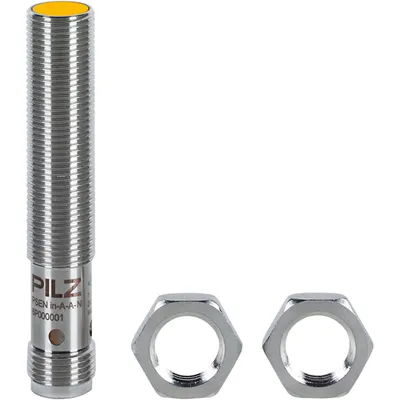

| 6P000001 | 6P000001 | 12 mm | 18 g | 29 g | 4046548108729 |
Common to all listed parts
| Approval | CE, UKCA, cULus Listed, TÜV |
| Sensor principle | inductive |
| Lifecycle | Active (current Pilz product) |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Rated operating voltage | 24 V DC |
| Number of OSSD outputs | 2 |
| S/C output short circuit proof | Yes |
